FAQ – Frequently Asked Questions

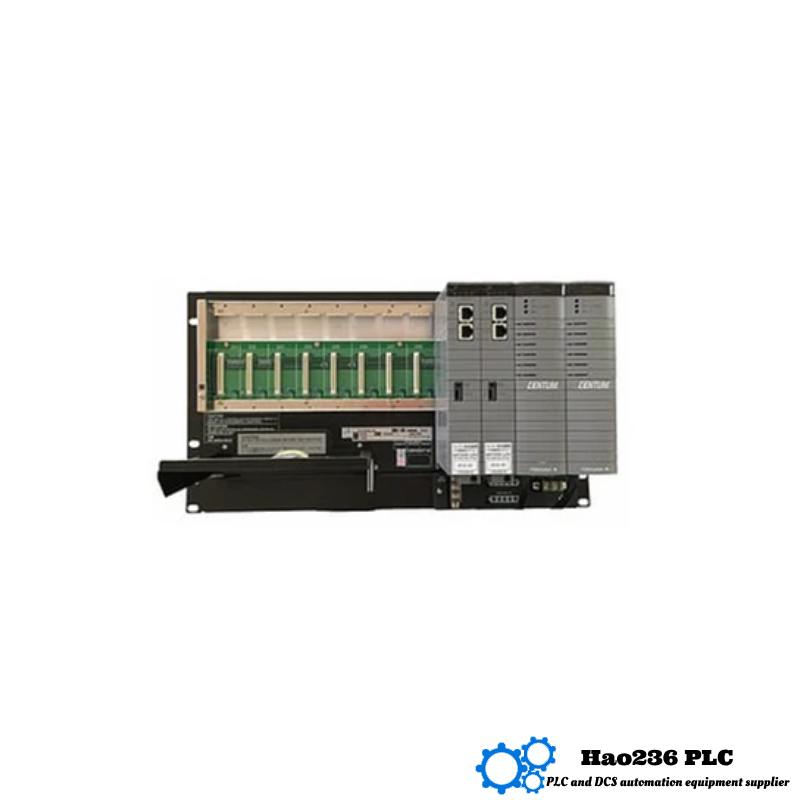

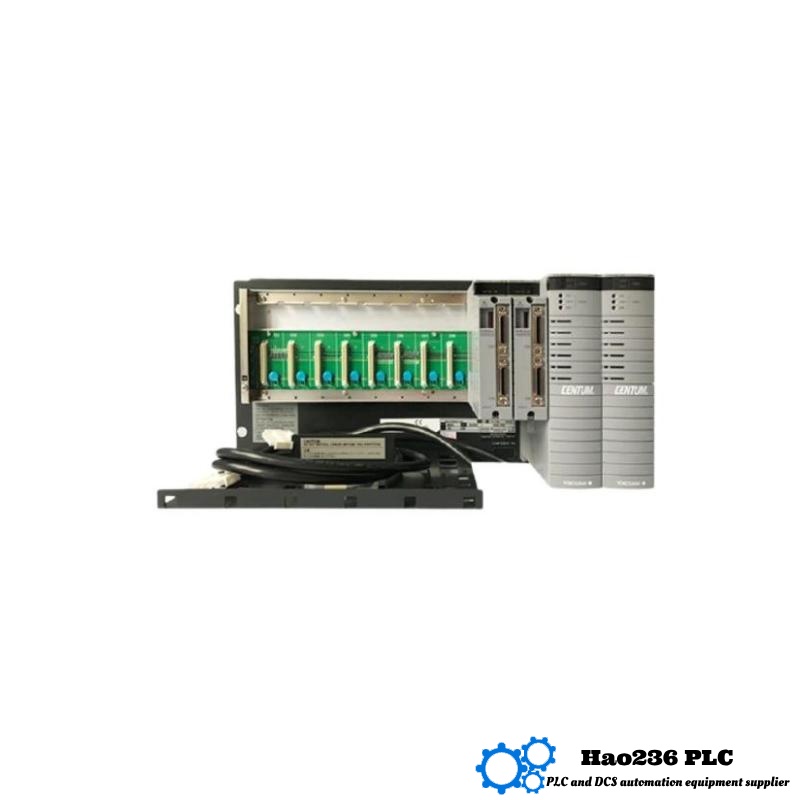

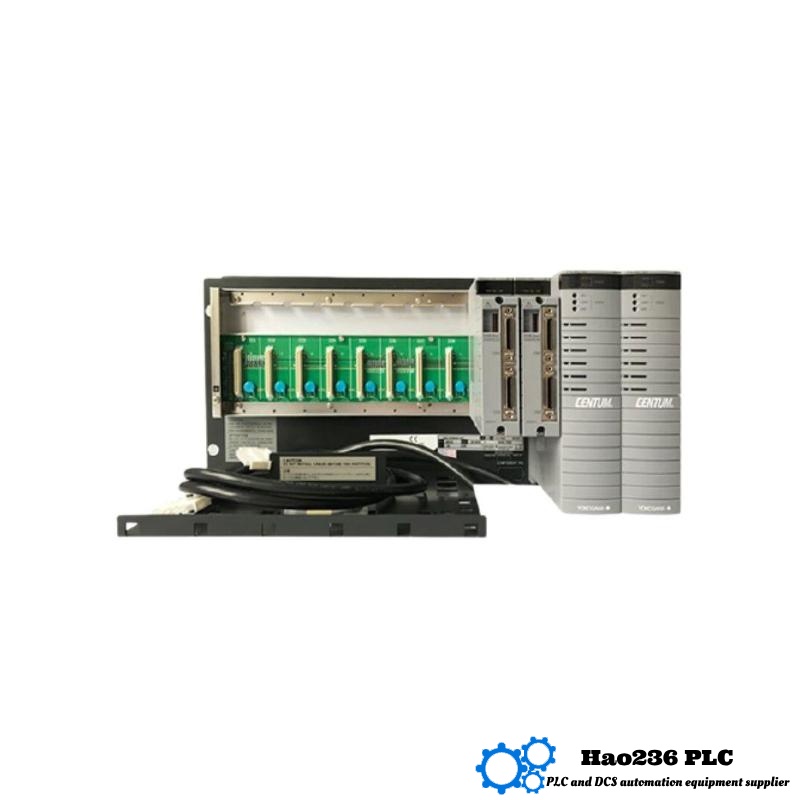

Q1: What role does the ANB10D‑415/CU2N play in a Yokogawa DCS?
A1: It functions as a high‑speed ESB node, aggregating and distributing Ethernet traffic between controllers, I/O stations and operator stations, while providing redundancy and diagnostics for the network backbone.

Q2: How many ESB ports are available on this model?
A2: Each unit offers eight copper RJ‑45 ports and four SFP slots, all switchable between two redundant trunks.

Q3: Can the unit be installed outdoors?
A3: No. With an IP20 rating it should be mounted in a climate‑controlled cabinet; extended‑temperature variants such as ANB10D‑414 are available for harsher sites.

Q4: Is firmware update possible without shutting down the plant network?
A4: Yes. The node supports hitless firmware upgrading via dual‑image storage, permitting rollback if validation fails.

Q5: Does the ANB10D‑415/CU2N support SNMP monitoring?
A5: It supports SNMP v2c for status polling and trap generation, plus SYSLOG for event logging.

Q6: What redundancy options are available?
A6: Dual power feeds, dual cooling fans, and dual ESB trunks allow seamless switchover if a component fails.

Q7: What is the typical MTBF for this unit?
A7: Field data indicates an MTBF greater than 150 000 hours under normal ambient conditions.

Q8: How are faults indicated locally?
A8: Front‑panel tri‑colour LEDs show trunk health, port activity and power status; critical alarms propagate to the DCS alarm banner.

Q9: Is there a limit to the number of ESB nodes on one segment?
A9: Up to 64 nodes can be connected per ESB trunk without performance degradation.

Q10: What maintenance is recommended?
A10: Quarterly dust inspection, annual fan check and battery status verification during scheduled shutdowns are generally sufficient.
