FAQ

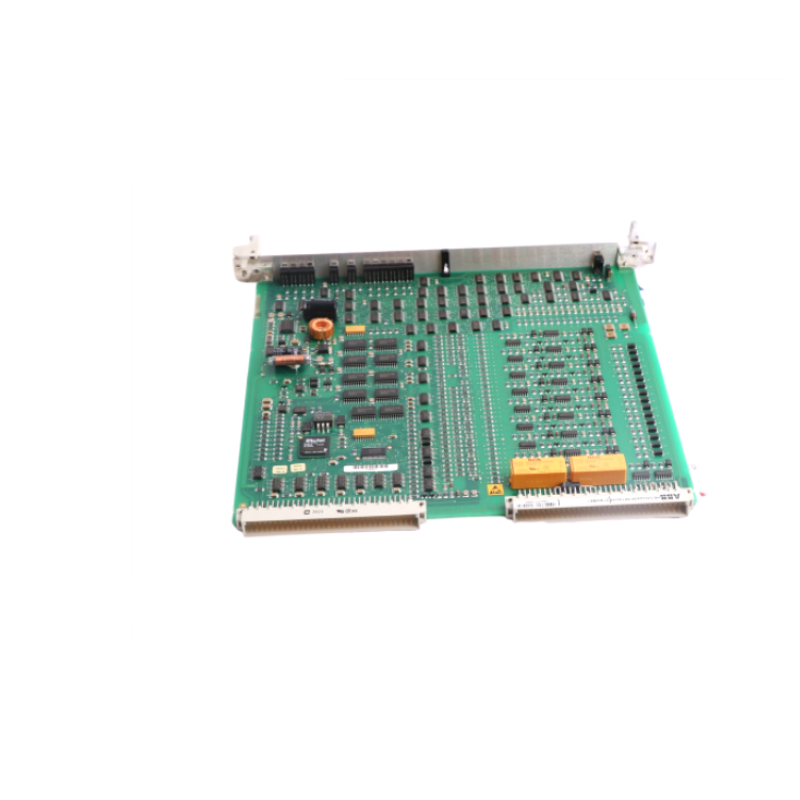

Q1: What is the primary function of the ABB 216DB61 HESG324063R100 unit?
A1: The primary function of the ABB 216DB61 HESG324063R100 is to convert binary input signals into proportional pneumatic output signals for controlling equipment such as valves, actuators, and dampers, with an integrated trip unit for protection.

Q2: Can this unit handle both binary input and output?
A2: Yes, the unit handles binary input signals and outputs pneumatic control signals based on these inputs.

Q3: What are the operating temperature and humidity ranges for this unit?
A3: The operating temperature range is –20°C to +60°C, and the humidity range is 5% to 95% (non-condensing).

Q4: What type of protection does this unit provide?
A4: The trip unit offers protection against overload, short circuits, and overvoltage conditions, ensuring the system’s safety and reliability.

Q5: What power supply is required for this unit?
A5: The unit operates on a 24V DC to 110V DC power supply.

Q6: Can this unit be mounted easily in existing systems?
A6: Yes, the ABB 216DB61 HESG324063R100 is designed for panel mounting, making it easy to integrate into control panels and existing systems.

Q7: How does the trip unit help in preventing damage?
A7: The trip unit detects faults such as overloads and short circuits, automatically triggering protective measures to prevent further damage to equipment.

Q8: Is this unit suitable for heavy industrial environments?
A8: Yes, the unit is built to withstand the rigors of industrial environments, with an IP20 rating for protection against dust and water.

Q9: What is the weight of the unit?
A9: The unit weighs 0.5 kg, making it lightweight and easy to install.

Q10: What is the size of the ABB 216DB61 HESG324063R100 unit?
A10: The unit measures 127 x 76 x 178 mm, making it compact and suitable for installations where space is limited.
