FAQ (Frequently Asked Questions)

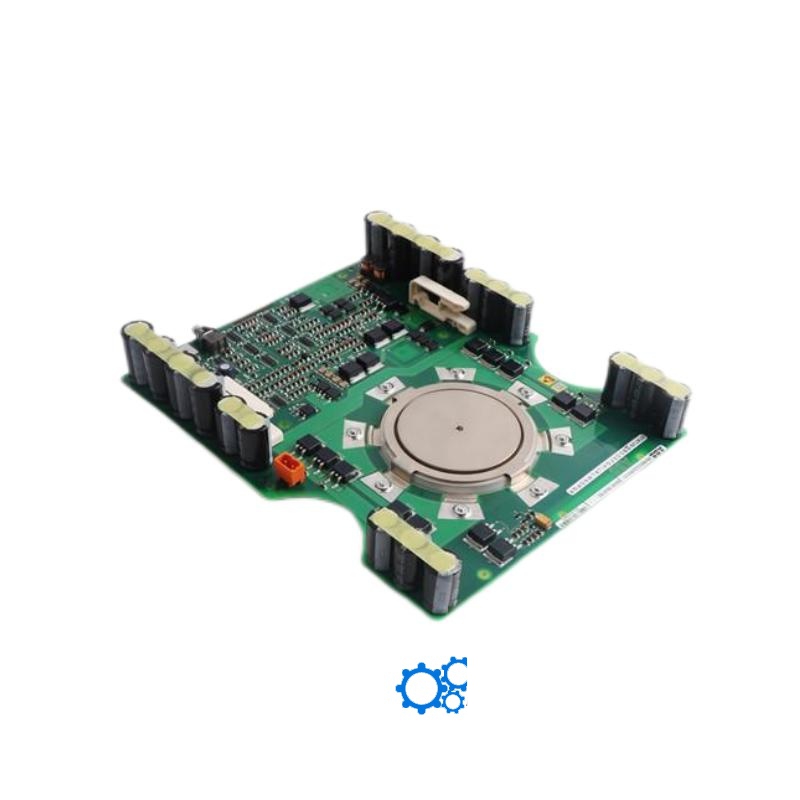

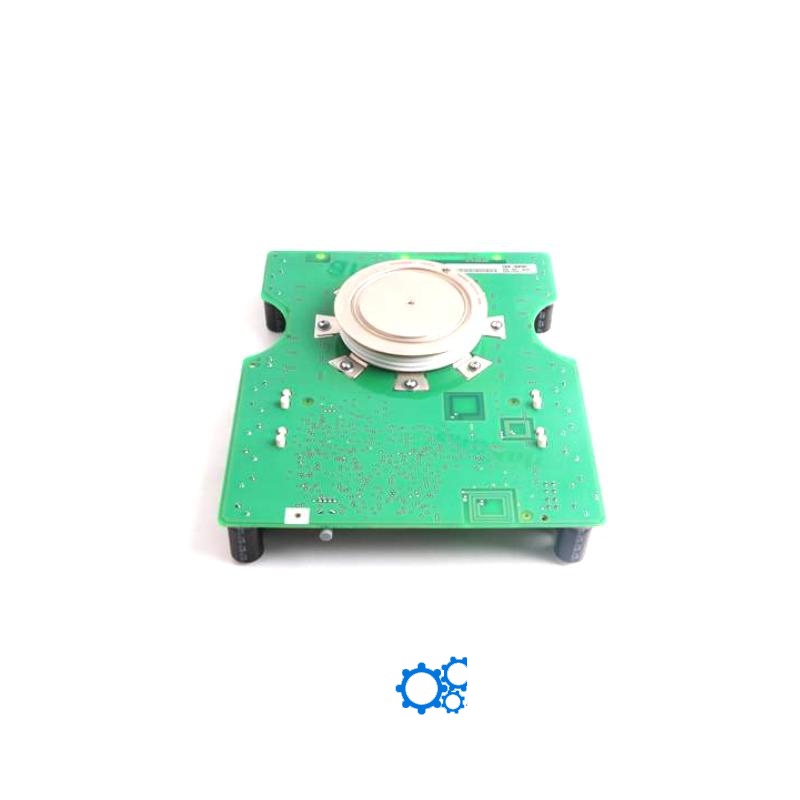

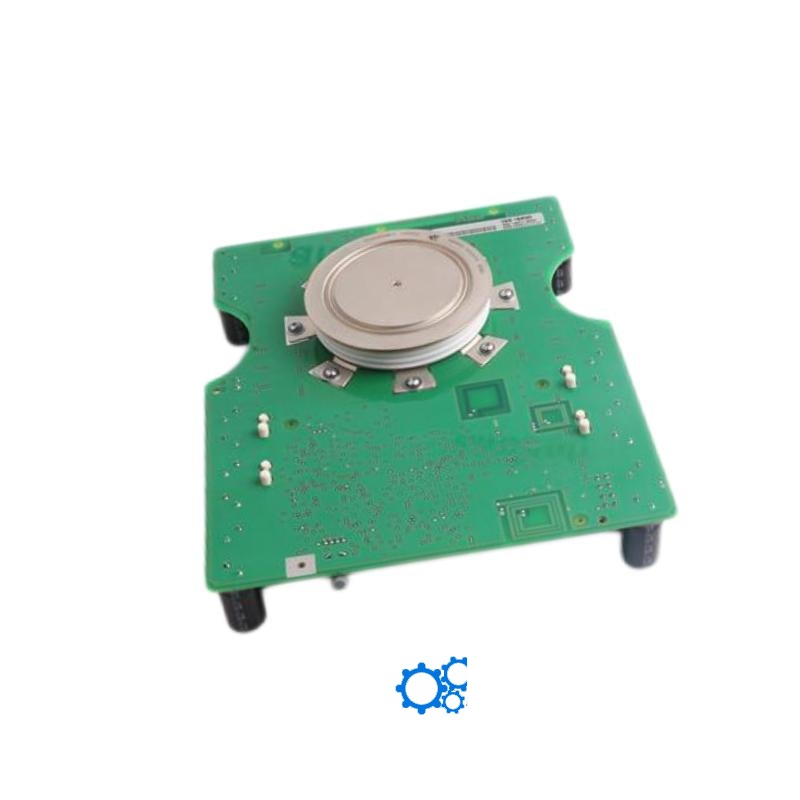

1. Q: What is an IGCT module?
   A: An IGCT integrates a gate-commutated thyristor with fast turn-off capability, enabling high-power, high-frequency switching with lower losses than conventional GTOs.

2. Q: What cooling methods are supported?
   A: This module supports both liquid (water/glycol) and forced-air cooling, depending on your system design and thermal requirements.

3. Q: How do I mount the module?
   A: It uses bolt-down flange mounting; ensure a flat, thermally conductive surface and torque bolts to ABB’s specifications.

4. Q: What is the typical turn-off time?
   A: The module features a turn-off time of less than 4 µs, allowing high-frequency operation.

5. Q: Can this module handle short-circuit events?
   A: Yes, the rugged thyristor design tolerates brief overcurrent and short-circuit conditions if protected by appropriate gate-drive and protection circuits.

6. Q: What gate-drive voltage is required?
   A: A bipolar ±15 V gate-drive supply is required for reliable switching and commutation.

7. Q: What maintenance is needed?
   A: Periodic inspection of cooling connections, torque checks on flange bolts, and gate-drive system diagnostics ensure long service life.

8. Q: Is the module RoHS compliant?
   A: Yes, it meets the latest RoHS directives for restriction of hazardous substances.

9. Q: What series does this module belong to?
   A: It is part of ABB’s SHP® IGCT family, designed for medium-voltage power conversion and drives.

10. Q: How do I select a compatible module?
    A: Choose based on required voltage, current rating, switching speed, and cooling method; consult ABB’s product selector for full compatibility.
