FAQ

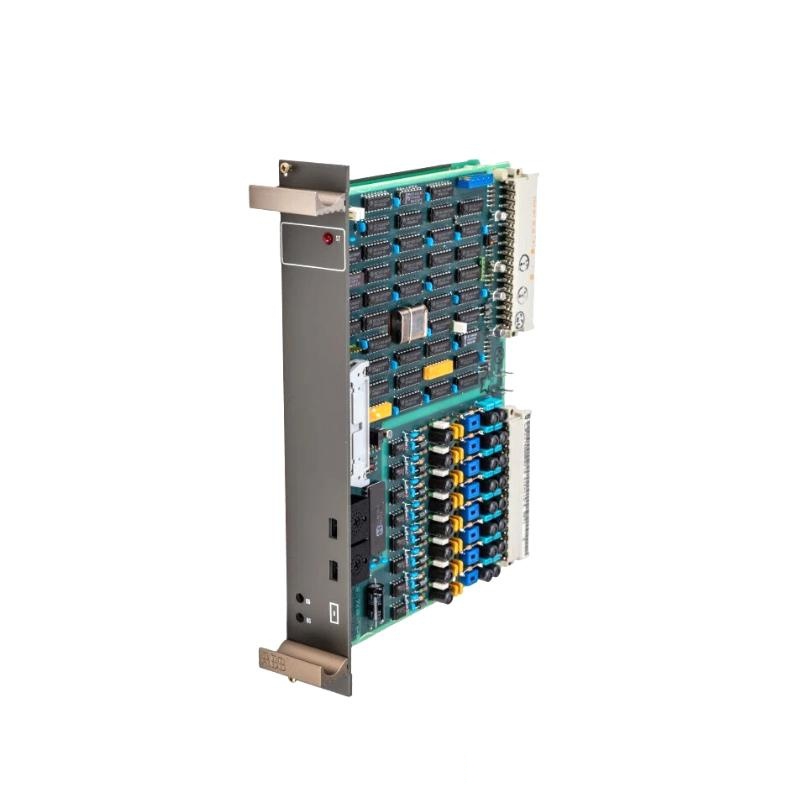

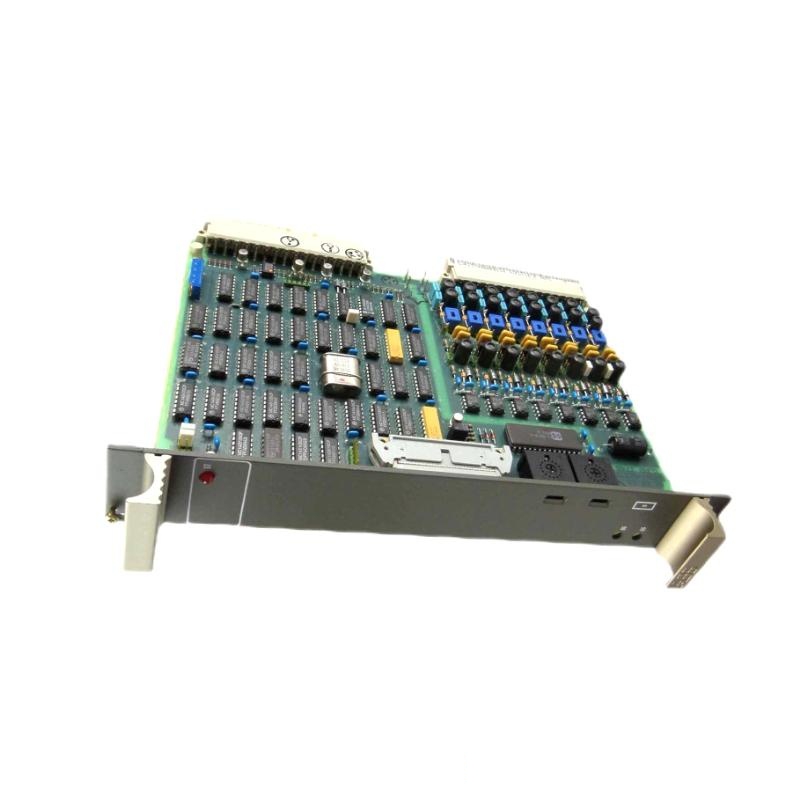

Q1: What exactly does the ABB 81EA11D-E module do?
A1: This module collects analog signals—like voltage or current—from sensors or transmitters in the field and sends them to the control system for processing. It’s an essential component in monitoring variables like temperature, pressure, or flow in industrial environments.

Q2: How many input channels are available on the 81EA11D-E?
A2: It comes with 16 analog input channels, allowing you to connect up to 16 separate analog signal sources to a single module.

Q3: What signal types does the module support?
A3: The 81EA11D-E supports both voltage and current signal types, including the standard 4–20 mA and 0–10 V signals commonly used in industrial applications.

Q4: Can I use this module in harsh environments?
A4: Yes, the module is designed with industrial environments in mind. It offers robust signal protection and has a durable build to withstand temperature fluctuations, electrical noise, and mechanical vibrations.

Q5: Is the 81EA11D-E hot-swappable?
A5: No, it is not designed for hot-swapping. The power should be disconnected before replacing or installing the module to avoid damaging components or affecting other system operations.

Q6: How is this module installed?
A6: It mounts easily into an ABB rack system or backplane. It uses standard DIN rail or rack slot installation depending on your specific control cabinet setup.

Q7: What systems or controllers is the 81EA11D-E compatible with?
A7: This module is primarily designed for use within the ABB Symphony Plus and INFI 90 control systems. It’s compatible with various ABB DCS platforms.

Q8: What makes the 81EA11D-E reliable for process industries?
A8: It offers high accuracy, reliable signal isolation, and robust error detection features like open wire detection and signal filtering. These capabilities make it ideal for continuous process industries where signal fidelity is critical.

Q9: What certifications does the ABB 81EA11D-E have?
A9: The module typically comes with certifications for CE marking and industrial standards compliance, including EMC and low-voltage directives. For specific use cases like marine or hazardous zones, you should verify certifications with ABB.

Q10: Is there a built-in diagnostics feature in this module?
A10: Yes, the module provides internal diagnostics such as signal error detection, power fault alerts, and communication status indicators, helping operators identify and resolve issues quickly.
