Frequently Asked Questions (QA)

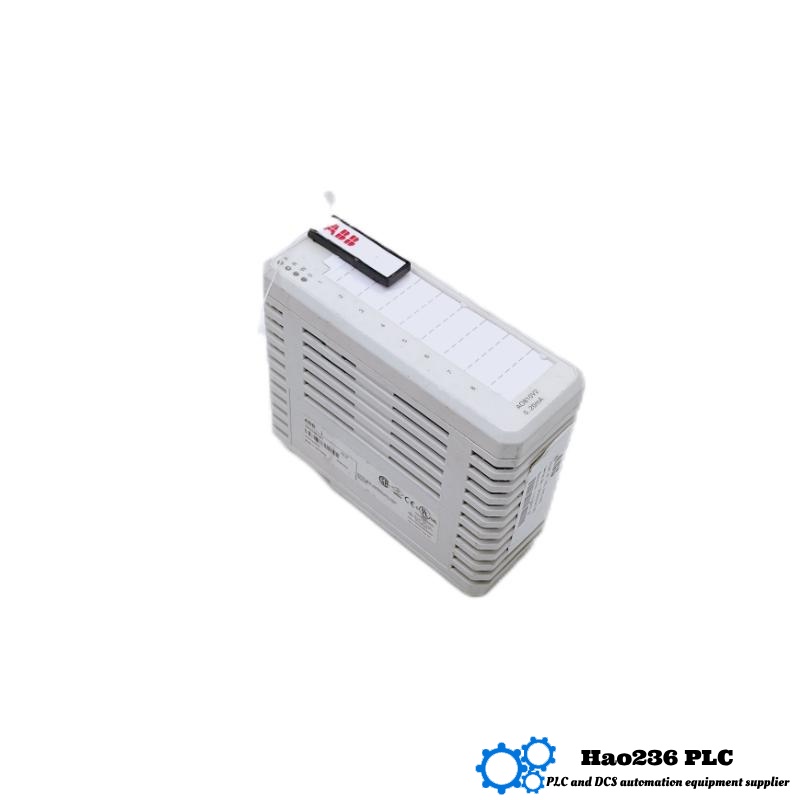

Q1: How many output channels are on the AO810V2?
A1: Eight unipolar analog output channels.

Q2: What output ranges can it handle?
A2: You can choose between 0…20 mA or 4…20 mA signaling.

Q3: Is it precise enough for fine control?
A3: Yes. It offers 14‑bit resolution and accuracy of ±0.1 % full scale.

Q4: Does it include diagnostics in case of failure?
A4: Absolutely—the module runs self-checks and reports errors via LEDs and OSP function for safety.

Q5: How fast are updates?
A5: The update cycle is ≤ 2 ms, with rise times around 0.35 ms at 500 Ω.

Q6: What environmental range can it handle?
A6: Operates between 0 °C and +55 °C and stores between –40 °C and +70 °C.

Q7: How big is the module physically?
A7: About 45 × 102 × 119 mm, weighing around 0.2 kg.

Q8: Is it safe for industrial environments?
A8: Yes—it’s IP20 rated, CE/UL certified, and designed for Zone 2/Div2 hazardous areas.

Q9: Can it drive heavy loads or long cables?
A9: Yes—it supports loads up to 500–850 Ω and cable runs up to 600 m.

Q10: What system does it integrate with?
A10: It connects with ABB’s 800xA and AC 800M control systems, via S800 racks and appropriate termination units.
