FAQ (10 Questions and Answers)

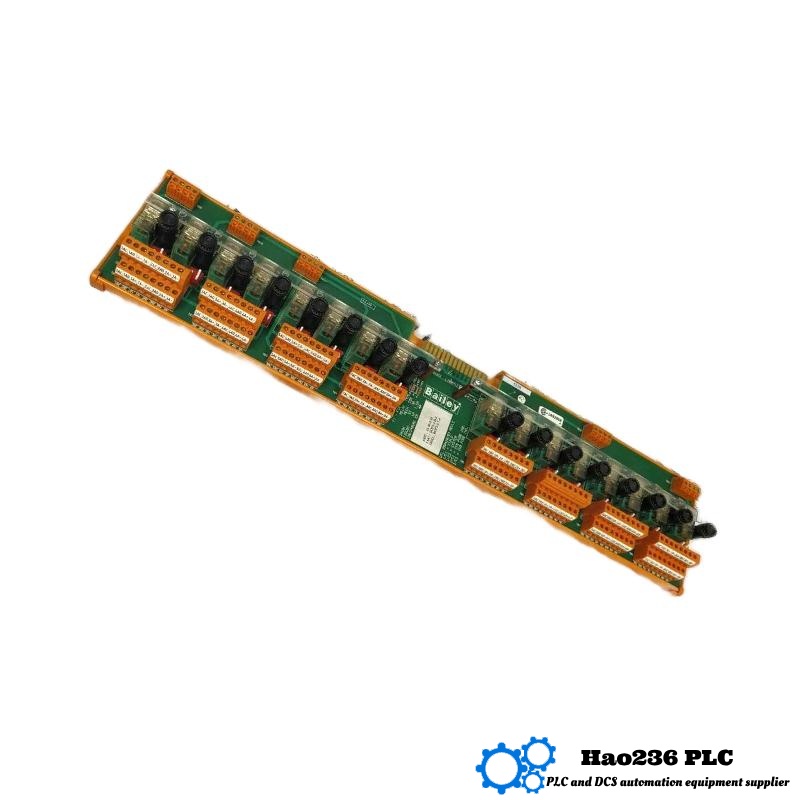

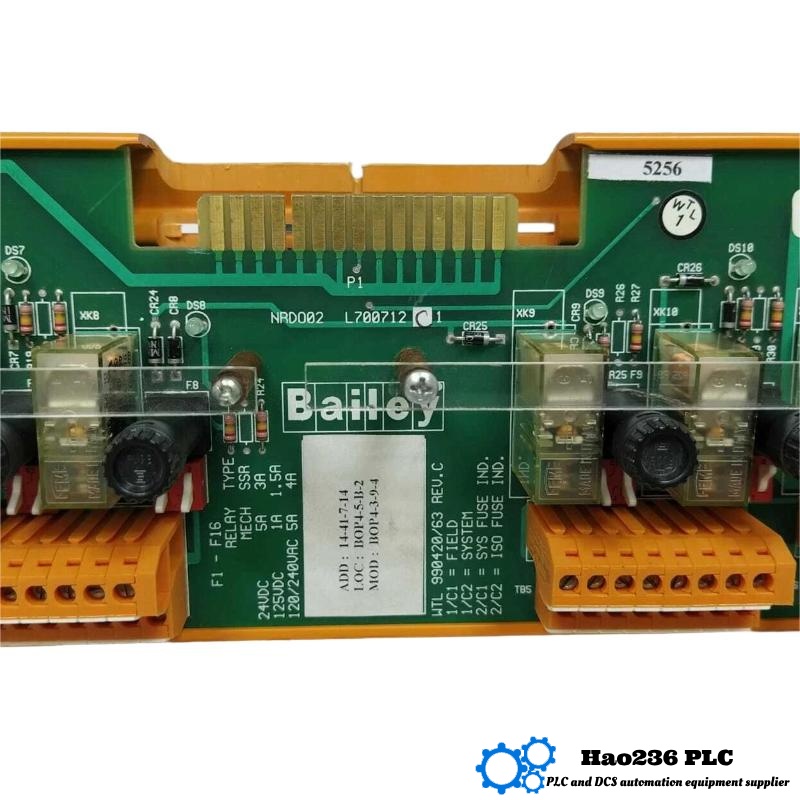

Q1: What is the main purpose of the ABB Bailey NRDO02 relay output terminal unit?
A1: The NRDO02 unit is designed to provide relay outputs that control external field devices such as motors, solenoids, and alarms in industrial and automation systems.

Q2: How many relay channels does the NRDO02 support?
A2: The NRDO02 supports 8 relay output channels.

Q3: What is the output current capacity for each relay channel?
A3: Each relay channel can handle up to 2 A of current.

Q4: What is the voltage rating for the NRDO02 unit?
A4: The NRDO02 operates with a 24 V DC voltage rating.

Q5: How is the NRDO02 unit mounted?
A5: The NRDO02 can be mounted on a DIN rail or directly onto a panel, offering flexibility in installation.

Q6: What types of relays does the NRDO02 use?
A6: The NRDO02 uses electromagnetic SPDT (Single Pole Double Throw) relays for output.

Q7: What is the operating temperature range for the NRDO02?
A7: The unit operates within a temperature range of -20°C to +60°C.

Q8: Can the NRDO02 be used in outdoor environments?
A8: Yes, with its wide temperature range, the NRDO02 is suitable for use in both indoor and outdoor environments.

Q9: How many outputs does the NRDO02 have, and how can they be used?
A9: The NRDO02 has 8 relay outputs, each capable of controlling different external devices like motors, alarms, and solenoids.

Q10: What is the wiring method for the NRDO02 unit?
A10: The unit supports both screw and push-in terminal connections, making wiring easy and secure.
