9) Frequently Asked Questions (FAQ)

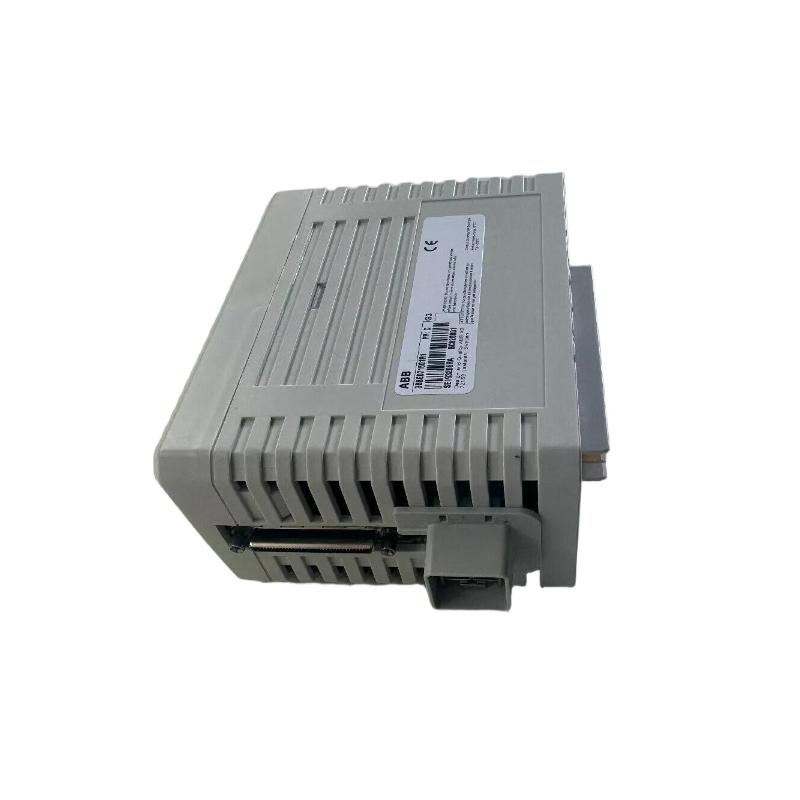

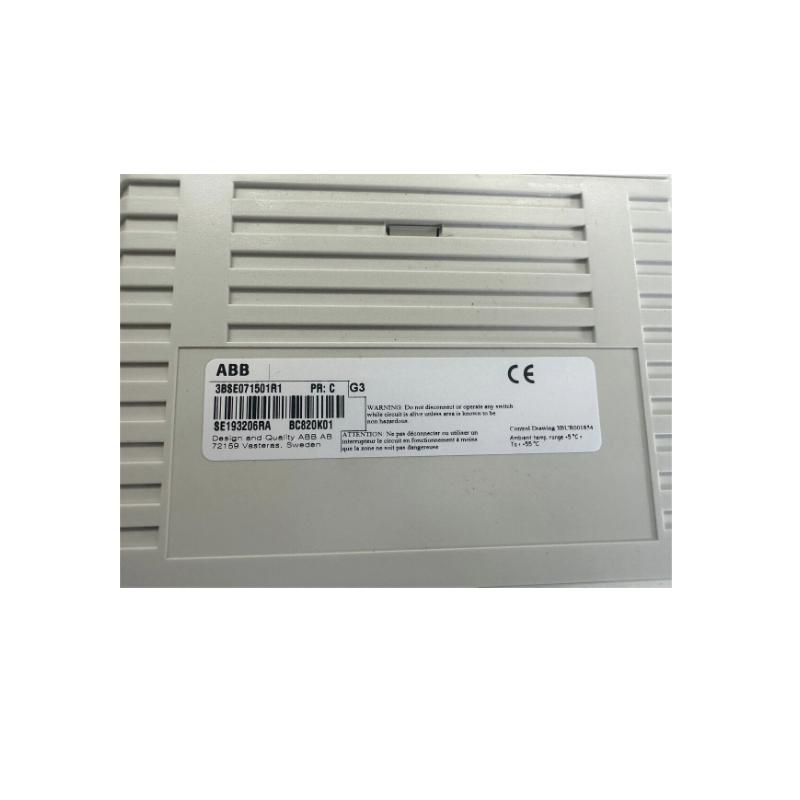

Q1: What is the role of BC820K01?
A1: It is a base unit for AC500 PLC modules that provides mechanical support and internal bus communication for up to six connected modules.

Q2: What power supply does the backplane use?
A2: The internal communication bus distributes a 24 V DC supply to all connected modules.

Q3: How many PLC modules can be mounted on BC820K01?
A3: Up to six modules can be installed depending on the chosen configuration.

Q4: Is external cabling required between connected PLC modules?
A4: No, the backplane bus handles internal communication and power distribution, greatly reducing external wiring.

Q5: What environments can BC820K01 operate in?
A5: It can operate in industrial cabinets within a temperature range of −20°C to +60°C and humidity up to 95% non-condensing.

Q6: How is the unit mounted?
A6: It is designed for standard 35 mm DIN rail mounting.

Q7: Does BC820K01 support both digital and analog modules?
A7: Yes, it supports any AC500-compatible modules, including digital and analog I/O modules.

Q8: What maintenance is typically required?
A8: Maintenance generally involves visual inspection and ensuring module connections remain secure.

Q9: Can the system be expanded after initial installation?
A9: Yes, additional modules can be added up to the maximum supported count.

Q10: Does this base module include a power supply?
A10: No, the base module itself does not include a separate power supply; a dedicated power supply module must be installed in the rack.
