9) Frequently Asked Questions (FAQ)

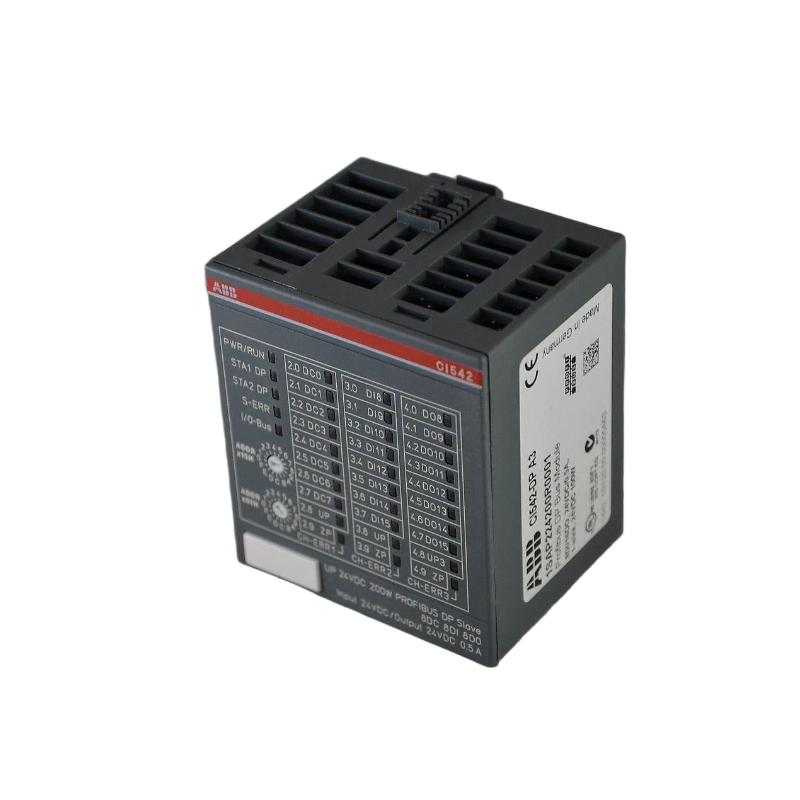

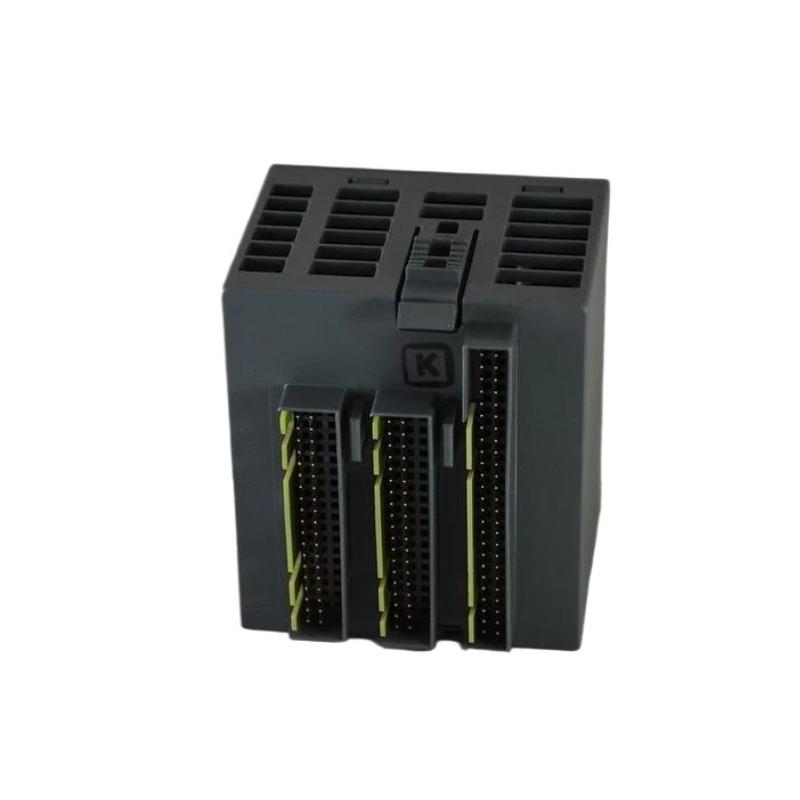

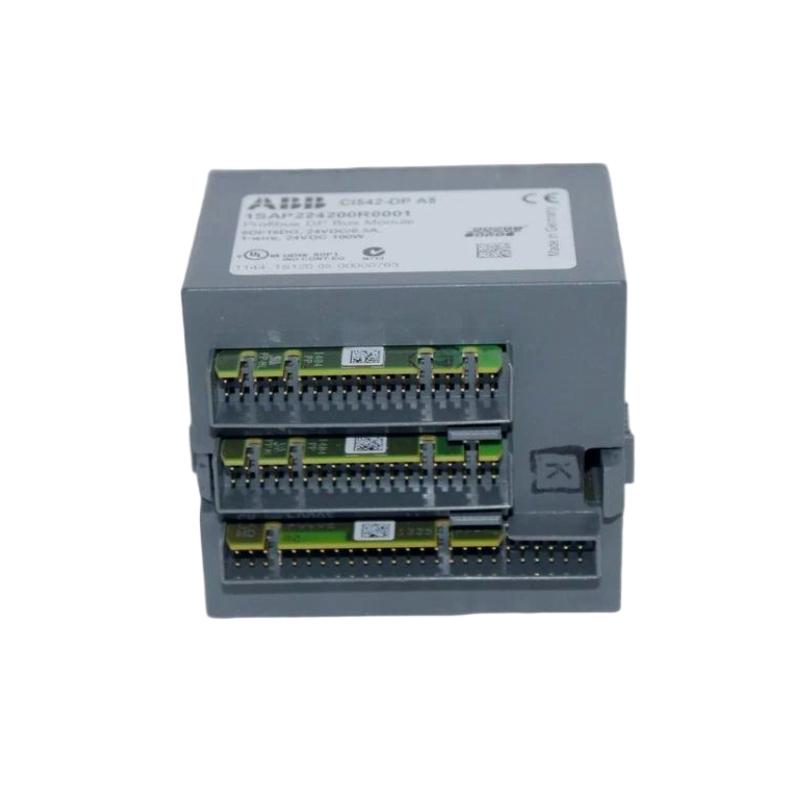

Q1: What is the main purpose of CI542‑DP?
A1: It provides high‑speed PROFIBUS DP communication between a PLC and distributed field devices.

Q2: Which protocol does this module support?
A2: PROFIBUS DP protocol.

Q3: What supply voltage is required?
A3: The module operates on 24 V DC.

Q4: How is CI542‑DP mounted in control cabinets?
A4: It is installed on a standard 35 mm DIN rail.

Q5: Can it communicate with remote I/O racks?
A5: Yes, it enables communication with remote field devices and I/O racks.

Q6: What environments can it work in?
A6: It operates between −20 °C and +60 °C with 5–95 % non‑condensing humidity.

Q7: Is it compatible with modular PLC systems?
A7: Yes, it integrates seamlessly with modular and multi‑rack PLC architectures.

Q8: Does it support diagnostics and fault detection?
A8: Yes, it provides network diagnostics and status monitoring.

Q9: What is the advantage of using PROFIBUS DP?
A9: PROFIBUS DP offers deterministic, high‑speed communication ideal for real‑time control.

Q10: Does the module require frequent maintenance?
A10: No, its robust industrial design minimizes maintenance requirements.
