Frequently Asked Questions (FAQ)

Q1: What is the primary function of CI543?
A1: CI543 is a communication interface module that acquires, conditions, and transmits analog and digital signals between field devices and automation control systems.

Q2: How many digital inputs does the CI543 support?
A2: The module supports 16 digital inputs.

Q3: How many analog channels does CI543 provide?
A3: CI543 provides 12 analog input channels and 6 analog output channels.

Q4: What is the resolution of the analog signals?
A4: The analog channels use 16‑bit resolution for accurate measurements.

Q5: What types of signals can be connected?
A5: CI543 accepts voltage signals (0–10 V, ±10 V) and current signals (0–20 mA, 4–20 mA).

Q6: What is the operating temperature range?
A6: The module operates between –20 °C and +60 °C.

Q7: What is the approximate weight of CI543?
A7: CI543 weighs about 1.90 kg.

Q8: What are the physical dimensions of the module?
A8: The dimensions are about 140 mm × 180 mm × 70 mm.

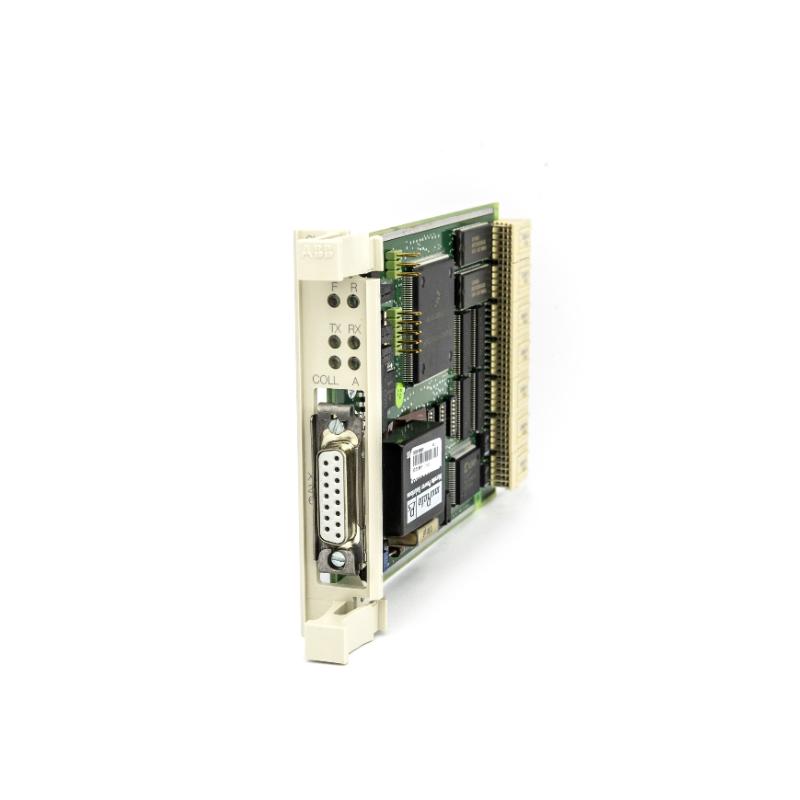

Q9: Does the module provide diagnostic indicators?
A9: Yes, CI543 includes LEDs for power, I/O activity, and fault status.

Q10: Can CI543 be expanded in larger automation systems?
A10: Yes, CI543 integrates with other communication and interface modules for scalable system designs.
