Frequently Asked Questions (QA)

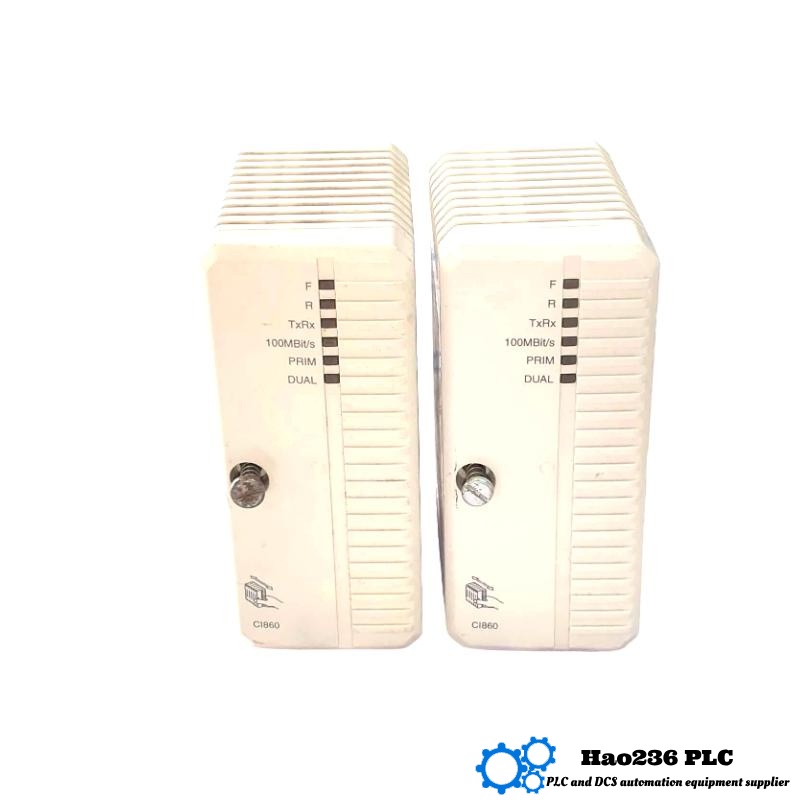

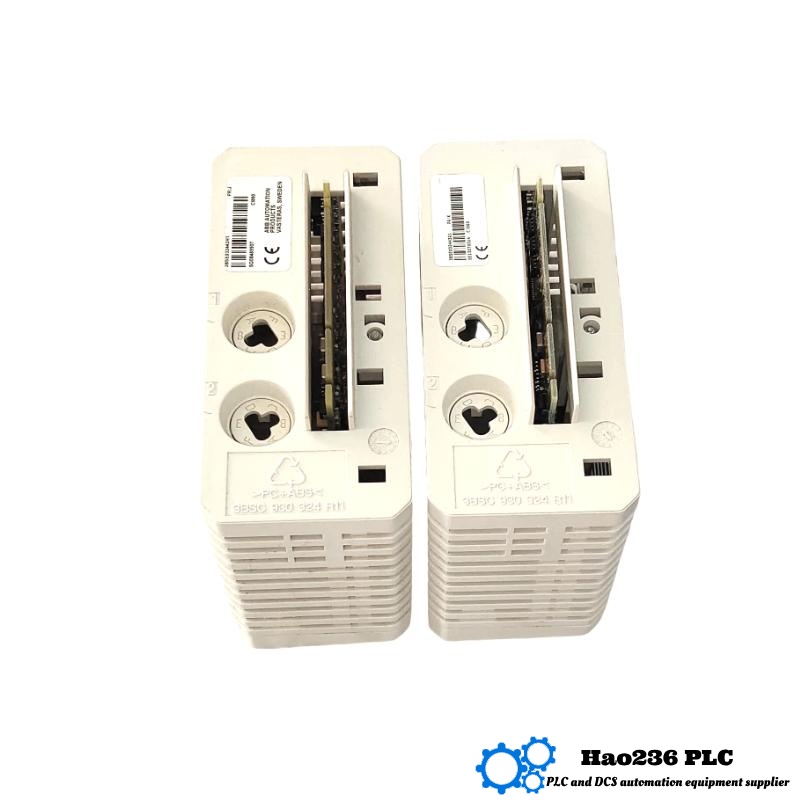

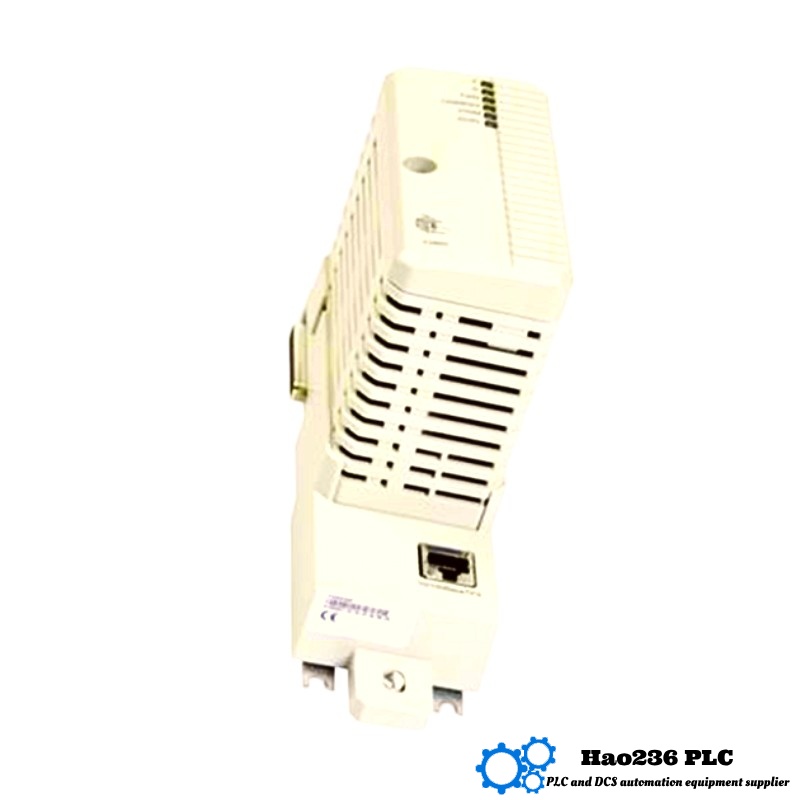

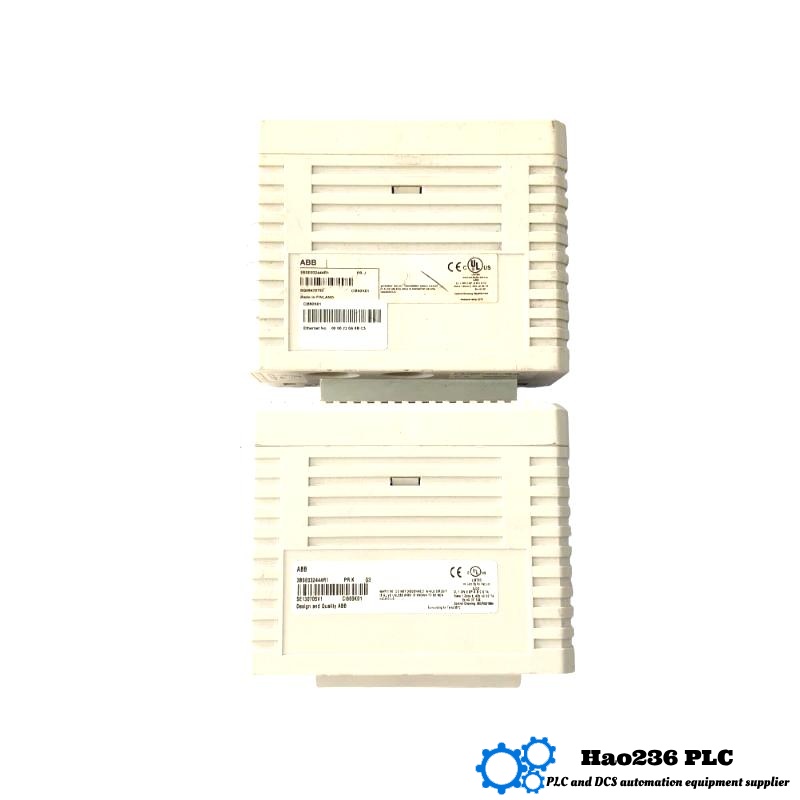

Q1: What is the main function of the CI860K01?
A1: It serves as a communication interface module enabling DriveBus communication between AC 800M controllers and ABB drives.

Q2: How many drives can be connected to one CI860K01?
A2: Up to 24 ABB drives can be connected per module.

Q3: Does the CI860K01 support hot swapping?
A3: Yes, it can be replaced or serviced without shutting down the system.

Q4: What are the physical dimensions and weight of the module?
A4: It measures approximately 185 × 59 × 127.5 mm and weighs about 0.7 kg.

Q5: What is the power supply method for the CI860K01?
A5: It is powered through the CEX-Bus from the AC 800M processor module, so no external power supply is needed.

Q6: What industrial applications are typical for this module?
A6: It is used extensively in rolling mills, paper production, power plants, and various continuous process industries.

Q7: What communication speed does the CI860K01 support?
A7: It supports communication speeds up to 8 Mbit/s via DriveBus protocol.

Q8: Is the module suitable for harsh industrial environments?
A8: Yes, it is designed for indoor industrial use with an IP20 rating and has certifications for marine and other industrial standards.

Q9: Can the CI860K01 be used in redundant systems?
A9: The module itself does not provide redundancy but can be part of a multi-module system to increase reliability.

Q10: What certifications does the module have?
A10: It complies with CE, RoHS, and marine certifications such as ABS, BV, DNV-GL, and Lloyd’s Register.
