Frequently Asked Questions (FAQ)

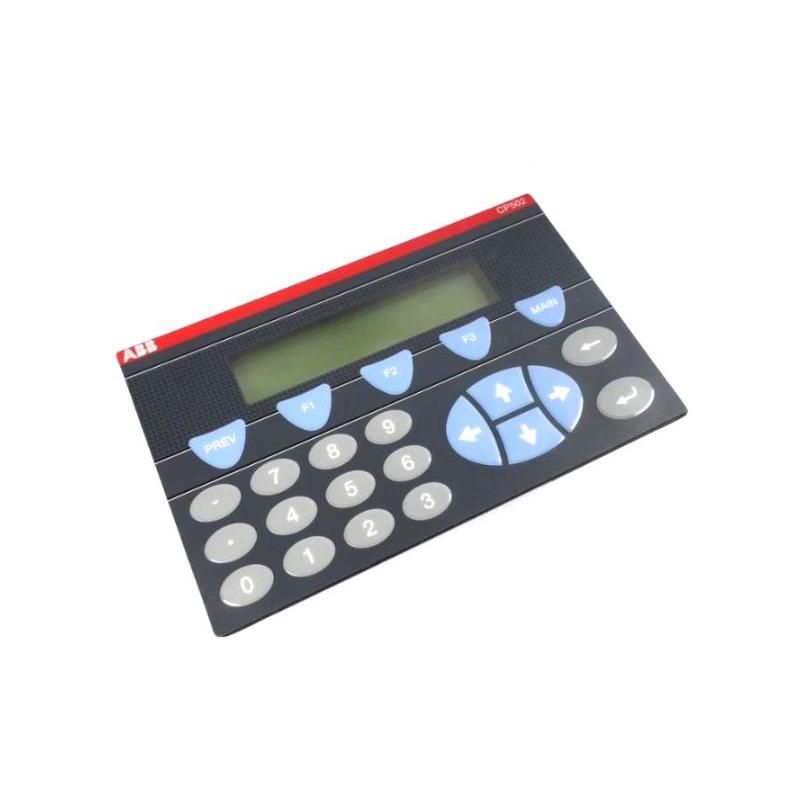

Q1: What is the main function of CP502?
A1: CP502 acts as a central programmable control module that acquires analog and digital signals, executes control logic, and communicates with supervisory systems.

Q2: How many digital inputs are supported by CP502?
A2: The module supports 32 digital input points for reading ON/OFF or discrete field signals.

Q3: How many analog input channels does CP502 provide?
A3: CP502 includes 16 analog input channels for continuous measurement signals.

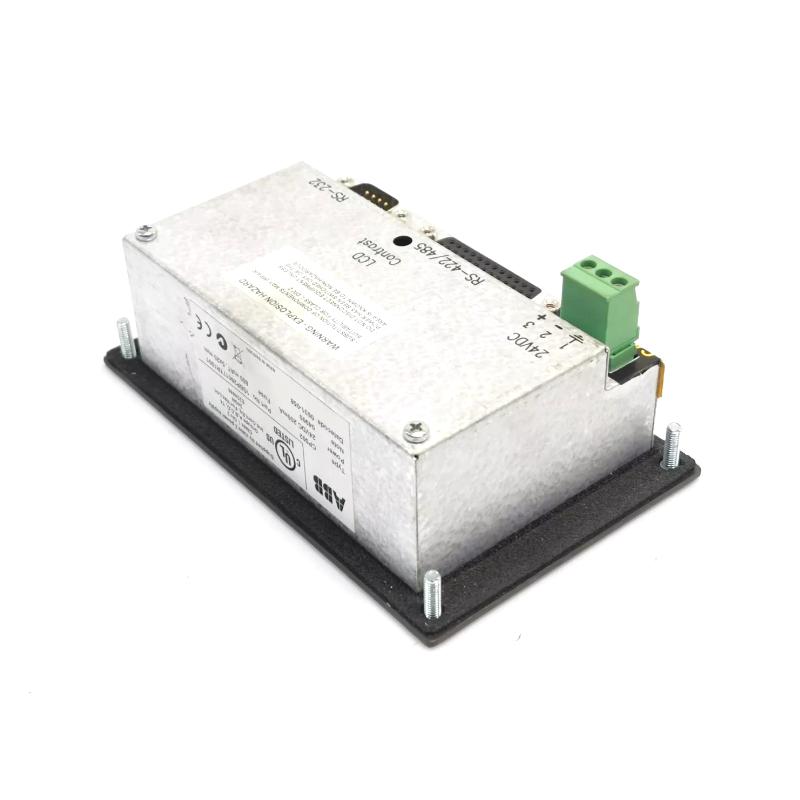

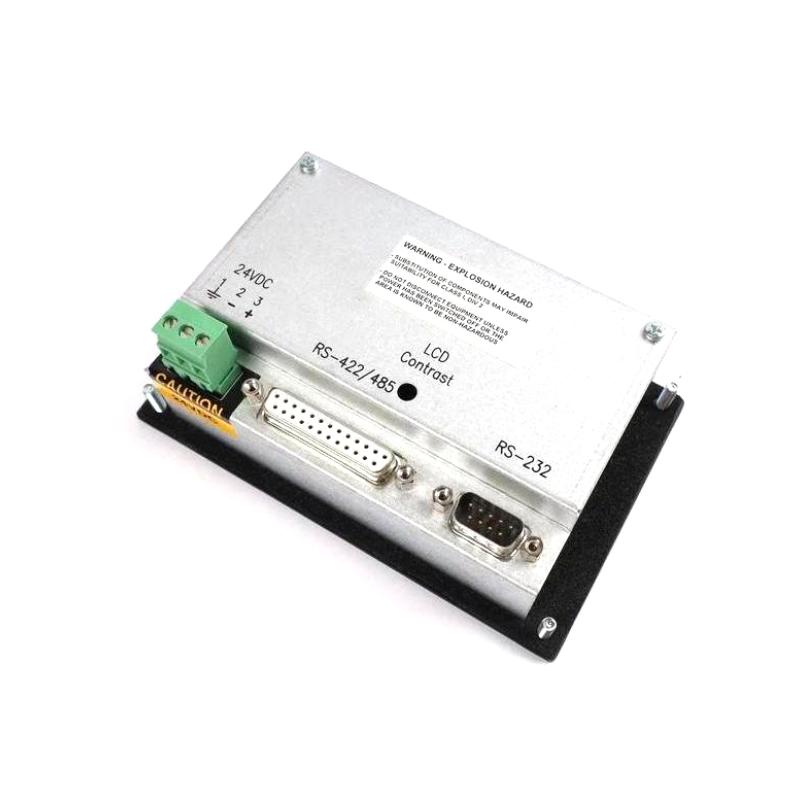

Q4: What types of communication interfaces are built into CP502?
A4: CP502 incorporates RS-485, Ethernet, and Fieldbus interfaces for flexible communication with external devices or supervisory systems.

Q5: What is the operating temperature range for CP502?
A5: CP502 operates reliably between –20°C and +60°C under standard industrial conditions.

Q6: How much does the CP502 module weigh?
A6: The approximate weight of the module is 1.25 kg.

Q7: What are the physical dimensions of CP502?
A7: The dimensions are approximately 140 mm (height) × 100 mm (width) × 70 mm (depth).

Q8: What type of logic processing capability does CP502 offer?
A8: CP502 features an onboard industrial logic processor capable of executing complex control sequences with deterministic performance.

Q9: Is CP502 suitable for harsh industrial environments?
A9: Yes, CP502’s rugged design, isolation, and temperature tolerance make it suitable for operation in challenging industrial settings.

Q10: Can CP502 be expanded with additional I/O modules?
A10: Yes, CP502 can be integrated into modular racks or distributed I/O systems, allowing expansion with compatible modules to meet larger automation requirements.
