FAQ – Frequently Asked Questions

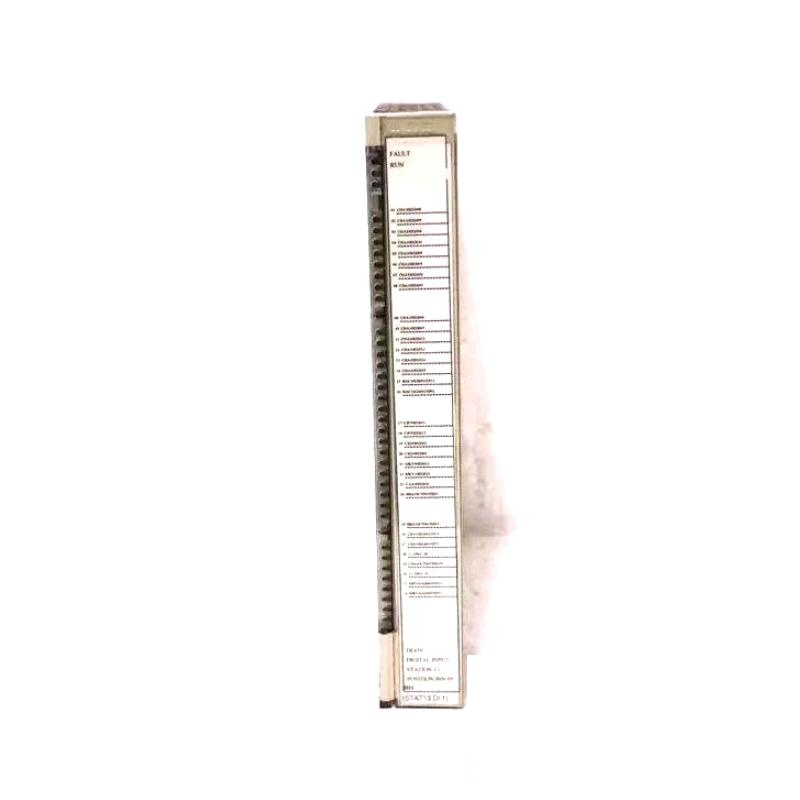

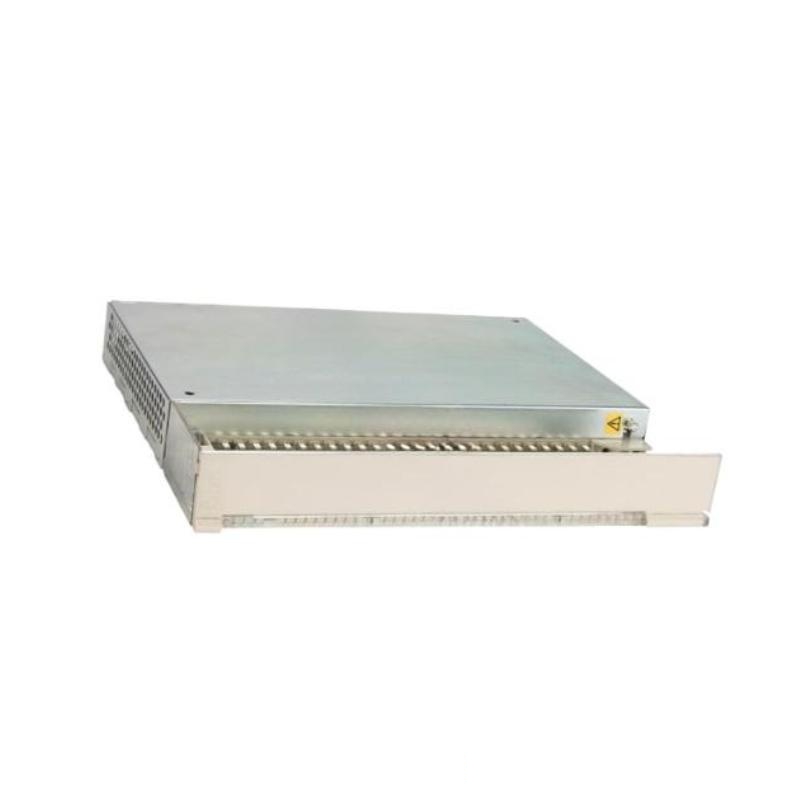

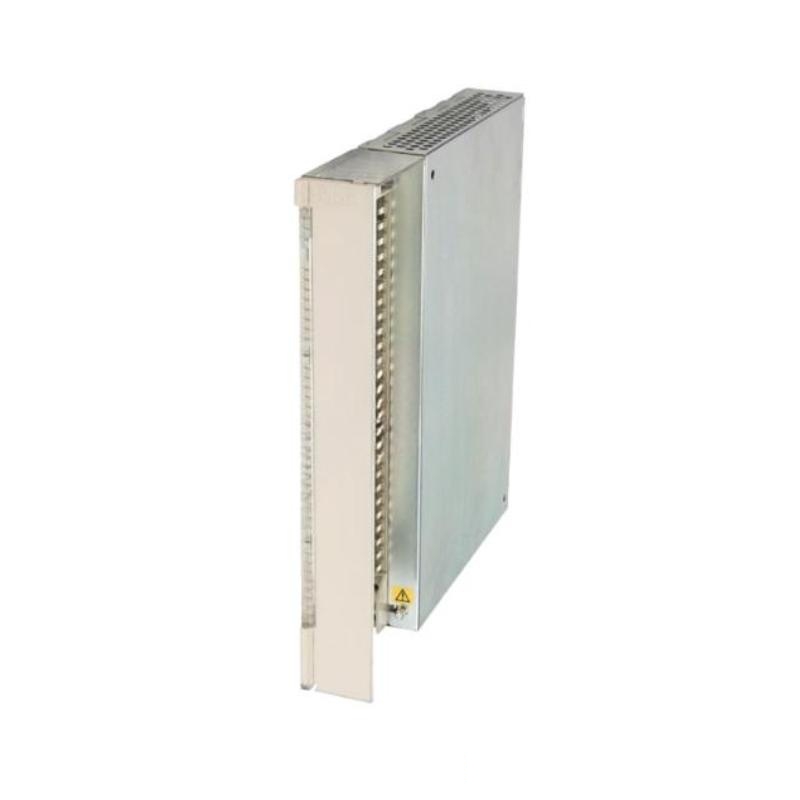

Q1: What does the ABB DI650 3BHT300025R1 module do?
A1: The DI650 is a digital input module used in industrial automation systems to monitor the status of digital input devices such as sensors, switches, and relays.

Q2: How many channels does the DI650 module have?
A2: The DI650 module has 8 input channels for monitoring digital signals.

Q3: What is the voltage range for the DI650 module?
A3: The DI650 operates with a 24V DC input, with a voltage tolerance of ± 20%.

Q4: Is the DI650 compatible with other ABB systems?
A4: Yes, the DI650 is compatible with ABB’s 800xA, AC500, and S500 control systems, among others.

Q5: Can this module be used in harsh environments?
A5: Yes, the DI650 is designed to function in harsh industrial environments with an operating temperature range of -20°C to +60°C.

Q6: How does the DI650 handle high electrical noise?
A6: The DI650 features robust signal processing that is resistant to electrical noise, ensuring stable performance even in challenging conditions.

Q7: What type of protection does the DI650 module offer?
A7: The module is equipped with overcurrent, short-circuit, and surge protection, safeguarding your automation system from electrical faults.

Q8: Can the DI650 be mounted in any industrial panel?
A8: Yes, the DI650 is designed for DIN rail mounting, making installation easy in most industrial control panels.

Q9: How do I monitor the status of the inputs?
A9: The DI650 module features LED indicators for each channel, providing clear visual feedback on the status of the digital inputs.

Q10: What is the weight and size of the DI650 module?
A10: The DI650 has a compact design with dimensions of 140 x 130 x 40 mm and weighs 0.6 kg, making it ideal for space-constrained installations.
