10 FAQs – Q&A Format

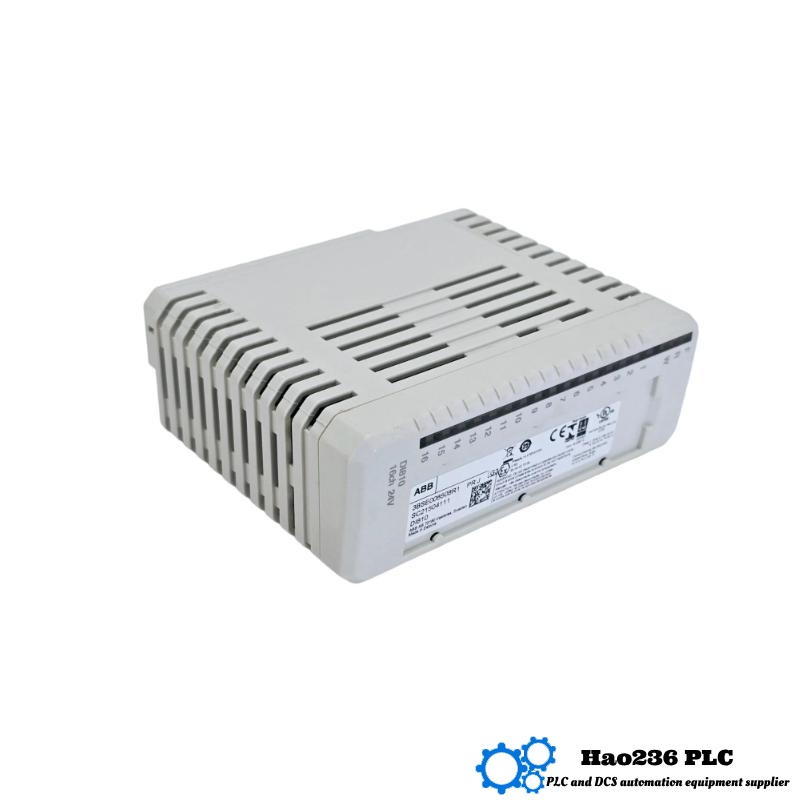

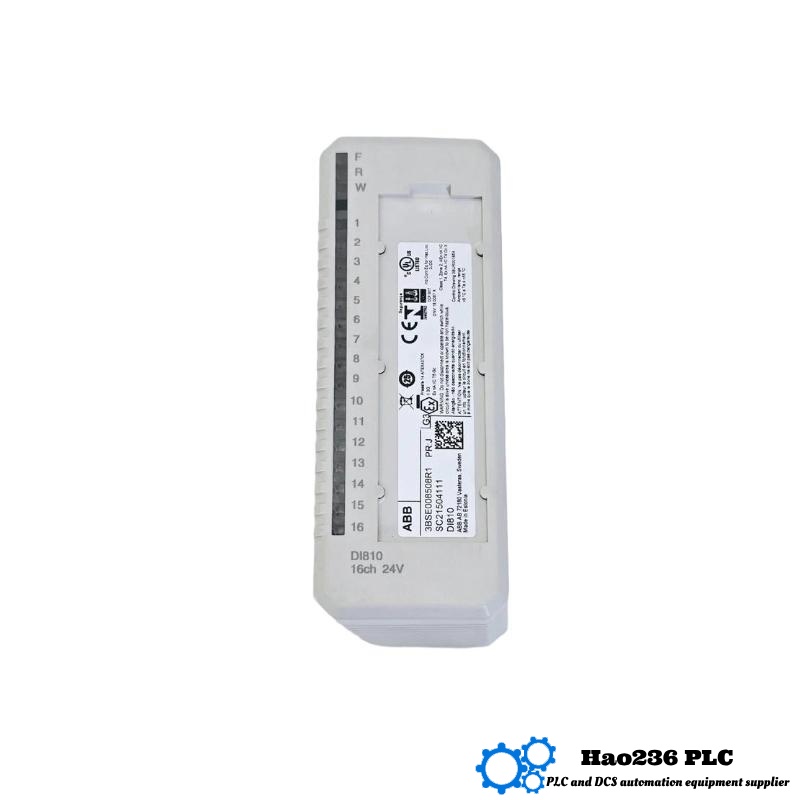

1. Q: What does the DI810‑1 module do?
   A: It reads up to sixteen discrete input signals (24 V DC or dry contacts) and conveys them to the control system.

2. Q: Can it handle both dry-contact and voltage inputs?
   A: Yes. It supports both dry contacts and 24 V DC current-sinking inputs.

3. Q: How are signals filtered?
   A: Users can select input filter times of 2, 4, 8, or 16 ms to suit different signal characteristics.

4. Q: What diagnostics are built-in?
   A: The module tracks voltage thresholds, reports ON/OFF states, and provides LED status and fault detection.

5. Q: How well isolated are the groups?
   A: There is galvanic isolation between two groups (8 channels each) and tested insulation up to 500 V.

6. Q: How hardy is it in extreme environments?
   A: It operates from about 0 °C to +55 °C (some sources suggest –40 °C to +70 °C), with robust IP20-level protection.

7. Q: Can it be installed while a system is running?
   A: Yes — it supports hot-swap use with compatible termination units.

8. Q: What are its physical dimensions and weight?
   A: It measures approximately 119 × 45 × 102 mm and weighs around 0.15 kg.

9. Q: What environment is it best suited for?
   A: Ideal for process, manufacturing, building automation, and infrastructure where reliable signal acquisition is needed.

10. Q: What termination units does it support?
    A: Compatible with TU810, TU812, TU814, TU830, TU833, TU838, and TU850 termination units.
