FAQ – Frequently Asked Questions

Q1: What does the ABB DI811 3BSE008552R1 module do?
A1: The DI811 is a digital input module designed to monitor the status of digital signals from devices like sensors, switches, and relays in industrial control systems.

Q2: How many channels are available on the DI811?
A2: The DI811 module offers 8 digital input channels.

Q3: What is the input voltage range for the DI811 module?
A3: The module operates at a 24 V DC input with a tolerance of ± 20%.

Q4: Can the DI811 be mounted in a control panel?
A4: Yes, the DI811 can be easily mounted on a DIN rail in industrial control panels.

Q5: What is the operating temperature range of the DI811?
A5: The DI811 can operate in temperatures ranging from -20°C to +60°C.

Q6: What is the protection feature of the DI811 module?
A6: The module is equipped with overcurrent, short-circuit, and surge protection for enhanced durability and safety.

Q7: How does the DI811 handle high-speed digital input signals?
A7: The DI811 provides fast and reliable signal processing, ensuring that input signals are accurately captured and processed in real-time.

Q8: Is the DI811 compatible with other ABB automation systems?
A8: Yes, the DI811 is compatible with ABB’s S800 I/O systems and integrates seamlessly with ABB control systems.

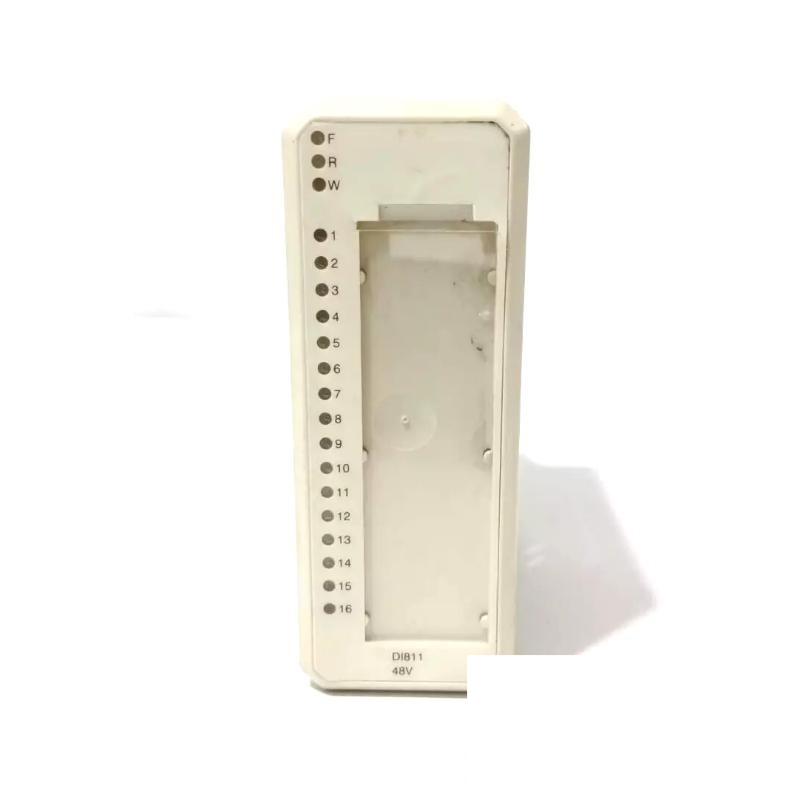

Q9: How can I monitor the status of the input channels?
A9: Each input channel on the DI811 module has a dedicated LED indicator to show its status (On/Off), providing clear feedback during operation.

Q10: What are the physical dimensions and weight of the DI811 module?
A10: The DI811 has dimensions of 45 x 102 x 119 mm and weighs 0.15 kg.
