10 Common FAQs – Q&A Format

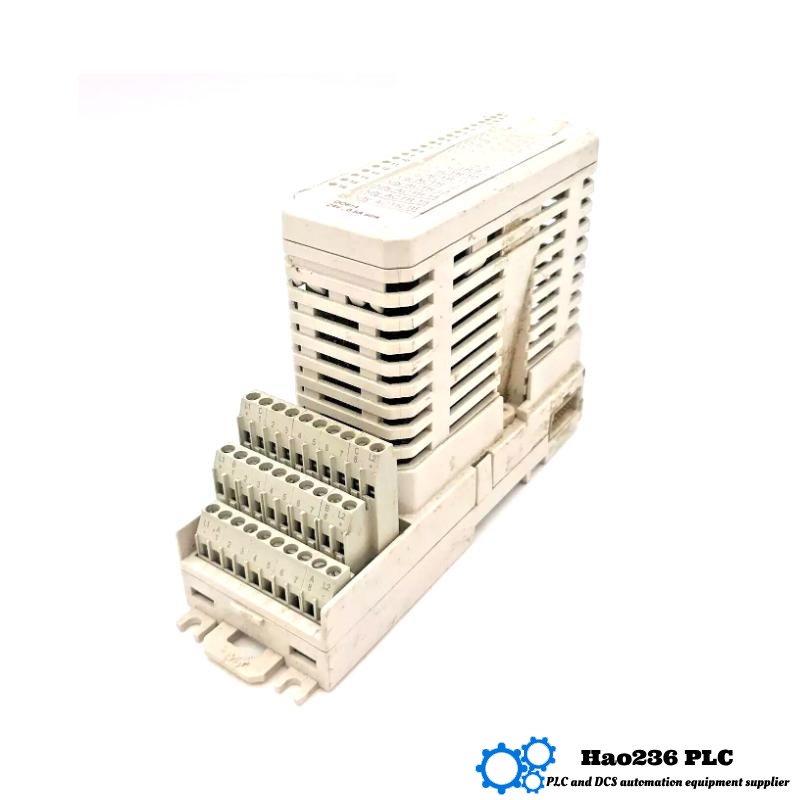

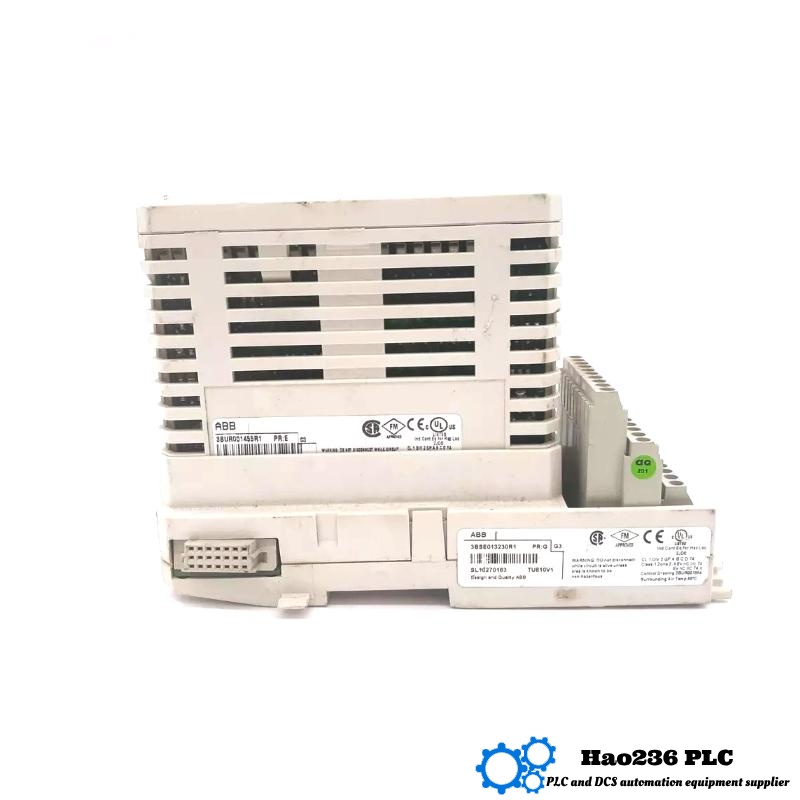

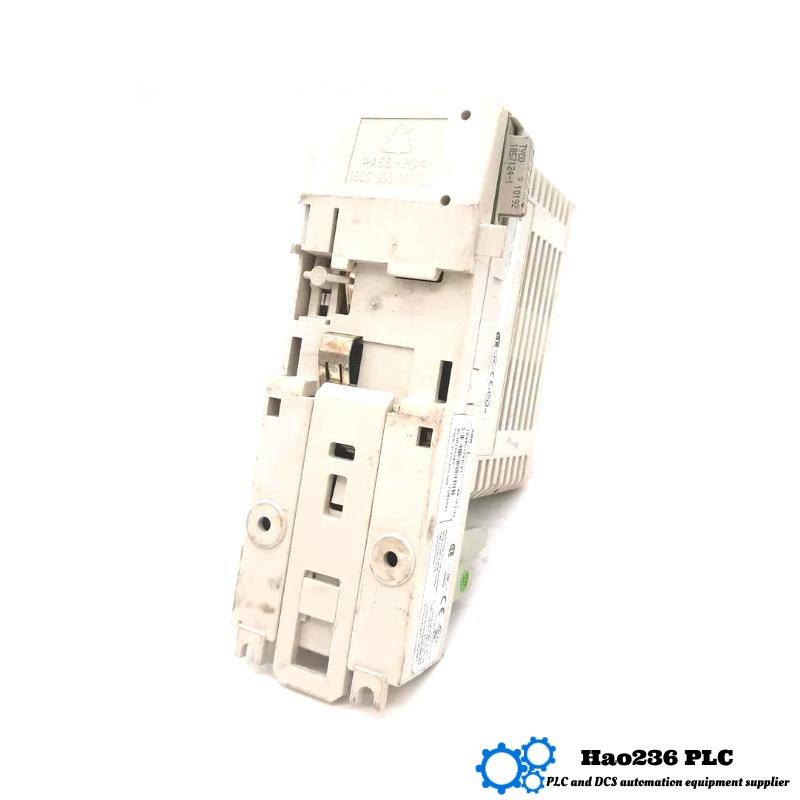

Q1: What is the function of the ABB DO814 module?
A1: It is a digital output module with 16 channels, used to control devices like valves, relays, or indicators by switching 24 VDC signals in industrial automation systems.

Q2: What kind of devices can it control?
A2: It can control any device that accepts 24 VDC signals such as solenoid valves, contactors, lamps, and small motors.

Q3: What does “current sinking” mean?
A3: Current sinking means the module switches the connection between the device and ground, allowing current to flow from the positive voltage through the load into the module.

Q4: Is the DO814 suitable for safety-critical applications?
A4: While not a SIL-certified safety module, it offers short-circuit, over-temperature, and diagnostic functions, increasing operational reliability.

Q5: Can it detect faults on each channel?
A5: Yes. It includes built-in diagnostic capabilities such as process voltage supervision and LED indicators for error status.

Q6: Is this module compatible with the ABB 800xA system?
A6: Absolutely. It is designed for integration within ABB’s 800xA DCS platform using S800 I/O architecture.

Q7: Does it support hot swapping?
A7: Yes, the S800 I/O modules including DO814 support hot swapping when used with compatible termination units (MTUs).

Q8: What certifications does the module carry?
A8: It is certified for CE, UL, ATEX Zone 2, marine classification societies like DNV, BV, ABS, and complies with RoHS and WEEE standards.

Q9: Can it be used in outdoor environments?
A9: It is not rated for direct outdoor use but can be installed in protected enclosures within harsh environments, thanks to its robust design and certifications.

Q10: What mounting accessories are needed?
A10: It requires a termination unit (TU), such as TU810, TU812, TU830, or similar, to connect field wiring and mount the module.
