Frequently Asked Questions (FAQ)

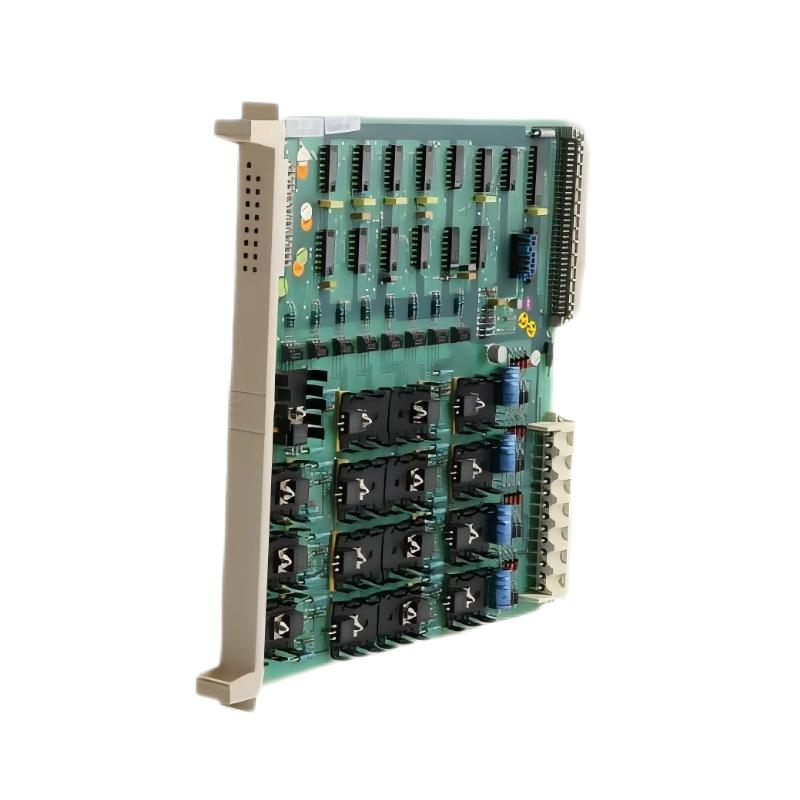

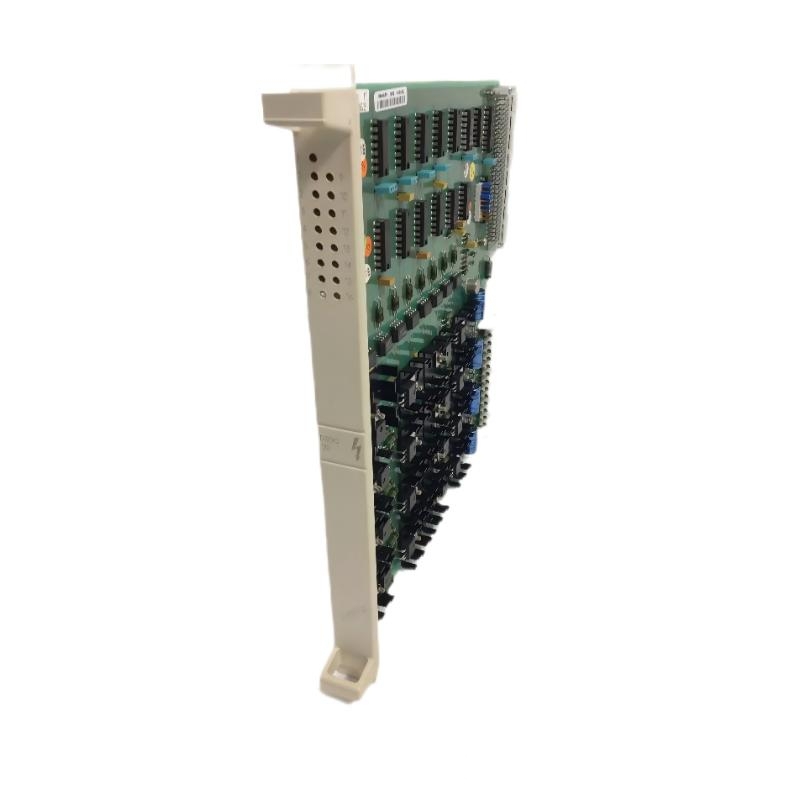

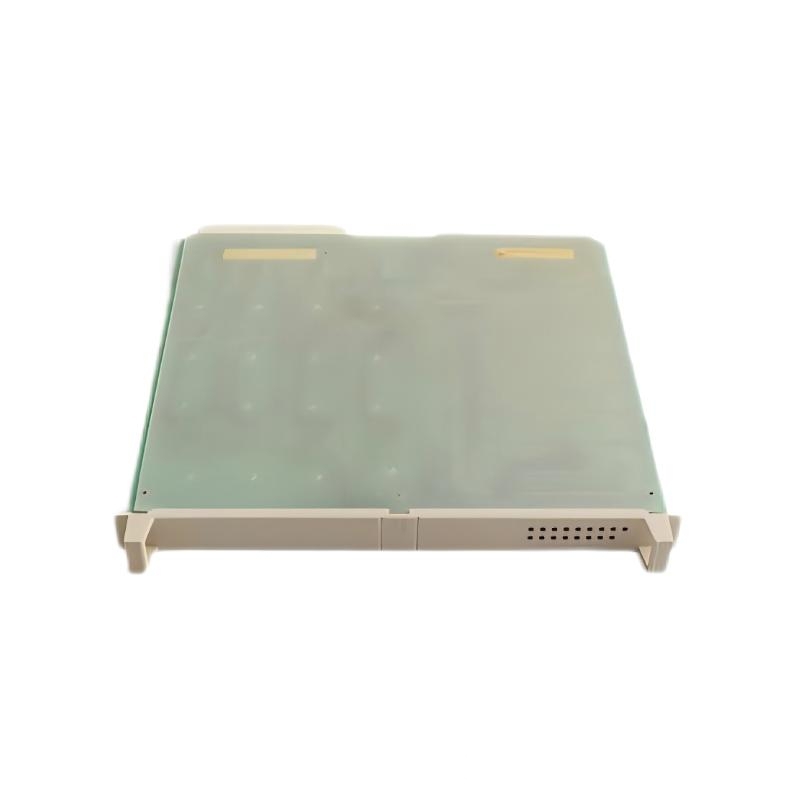

Q1: What is the function of the ABB DSDO 120 module?
A1: It acts as a digital output module that sends control signals to field devices such as actuators and relays.

Q2: How many output channels does the DSDO 120 provide?
A2: It provides 16 individual digital output channels.

Q3: What voltage range does the module support?
A3: It operates within 18–30 VDC, typically at 24 VDC.

Q4: Is it suitable for real-time applications?
A4: Yes, with a switching response time of less than 1 millisecond.

Q5: How is the module protected against electrical faults?
A5: It features 500 V electrical isolation between the output channels and ground.

Q6: Can the module be mounted in standard racks?
A6: Yes, it supports both DIN rail and rack mounting.

Q7: Are there LED indicators for each channel?
A7: Yes, each output channel has its own LED status indicator.

Q8: Is the DSDO 120 compatible with other ABB controllers?
A8: It integrates seamlessly with ABB’s Advant Controller 100 Series.

Q9: What is the operating temperature range of the module?
A9: It operates in environments ranging from -20°C to +60°C.

Q10: Is the module certified for global use?
A10: Yes, it carries CE, UL, and RoHS certifications.
