FAQ (Q&A Format)

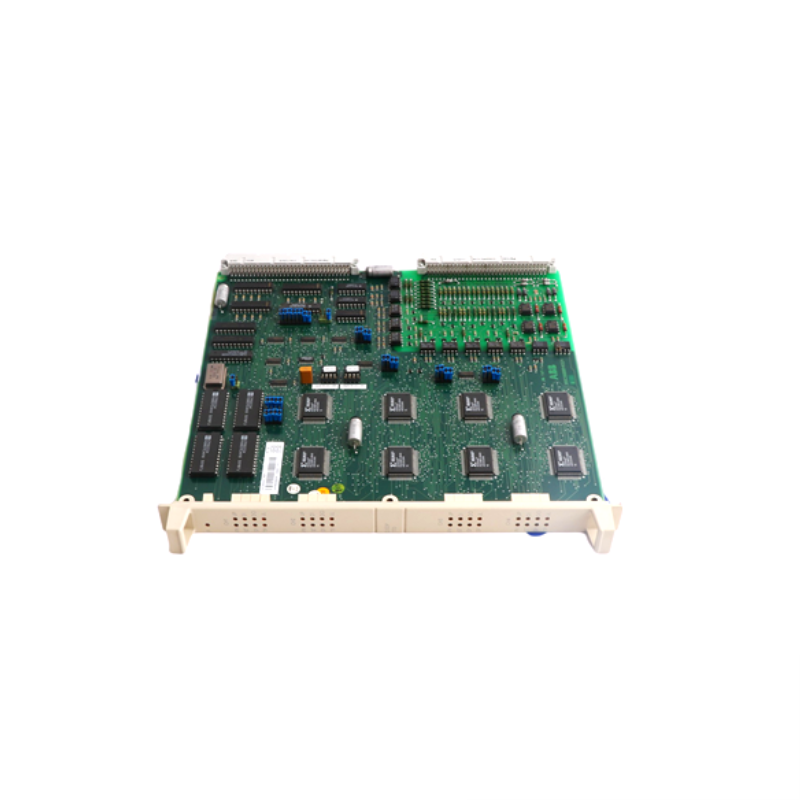

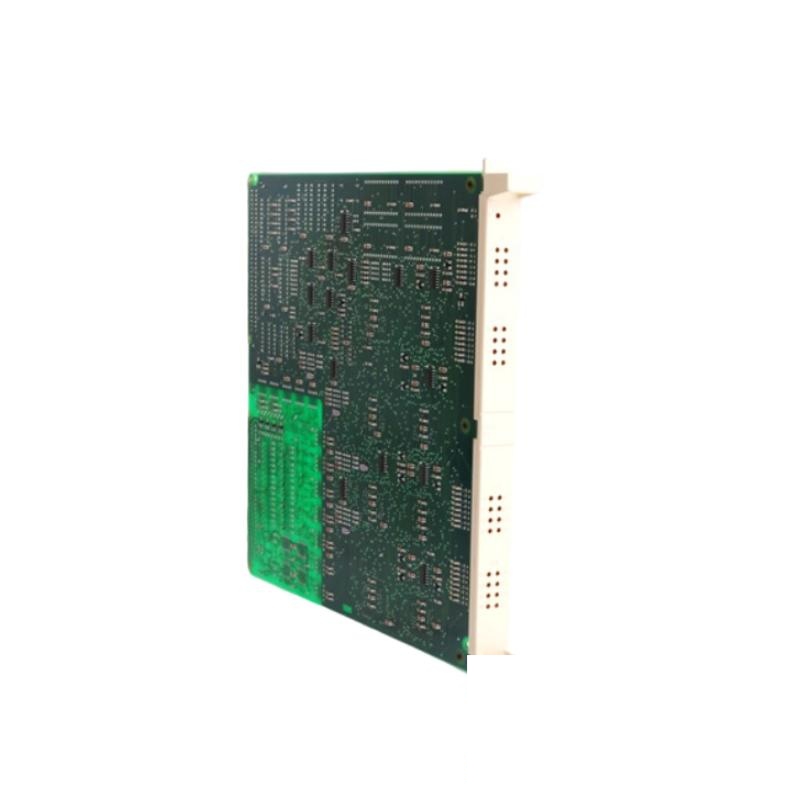

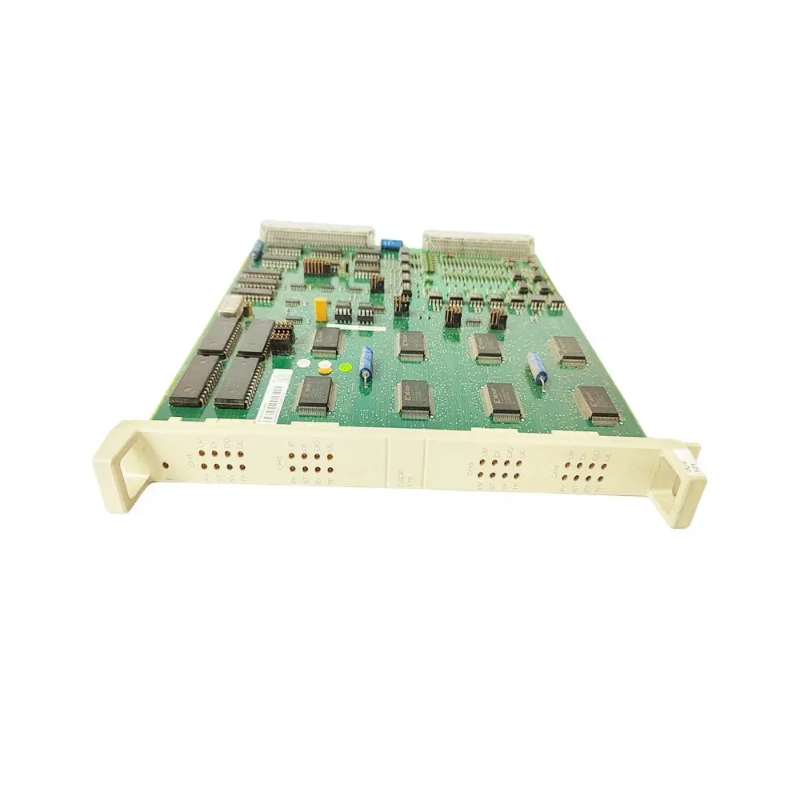

Q1: What is the main function of the ABB DSDP 170 module?
A1: It is used for high-speed pulse counting and frequency monitoring from digital signal sources.

Q2: How many pulse inputs does it support?
A2: Typically 4 or 8 inputs, depending on configuration.

Q3: What is the maximum pulse frequency the module can handle?
A3: It can process signals up to 100 kHz.

Q4: What type of signal isolation is provided?
A4: It offers galvanic isolation on each channel to ensure signal integrity.

Q5: Is the module suitable for harsh environments?
A5: Yes, it operates in temperatures from -20°C to +60°C and handles vibration well.

Q6: Can it be integrated into existing ABB DCS setups?
A6: Absolutely, it is fully compatible with DS series infrastructure.

Q7: What is the counting capacity of the module?
A7: It supports 32-bit pulse counting, offering high-resolution tracking.

Q8: What mounting method is used?
A8: It is designed for DIN rail installation.

Q9: Is it suited for real-time process monitoring?
A9: Yes, its fast response and stable operation make it ideal for real-time feedback.

Q10: How is power supplied to the board?
A10: Power is delivered via the system DS bus.
