10 FAQs – Q&A Format

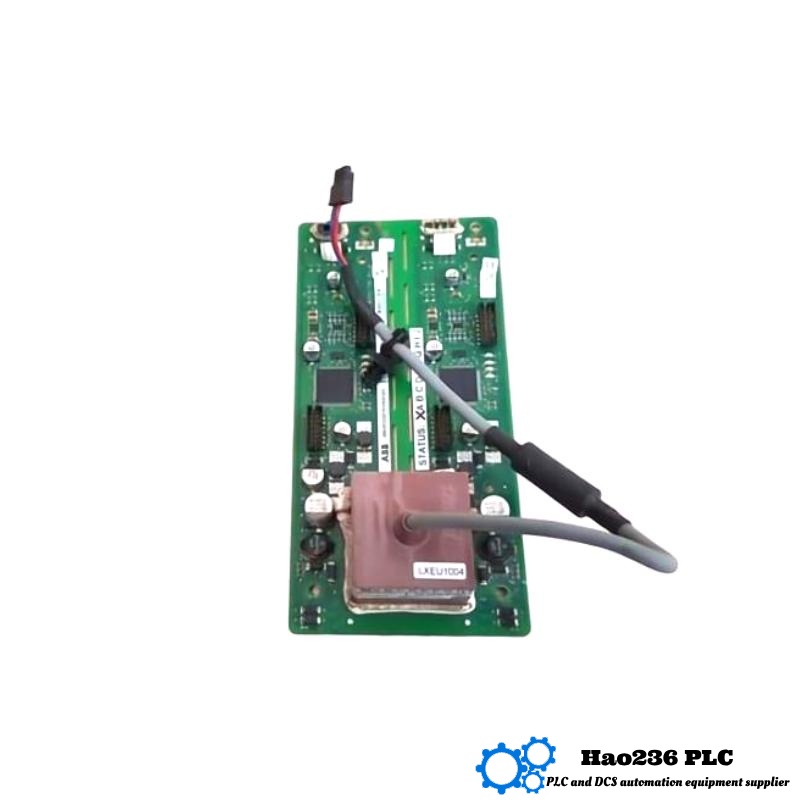

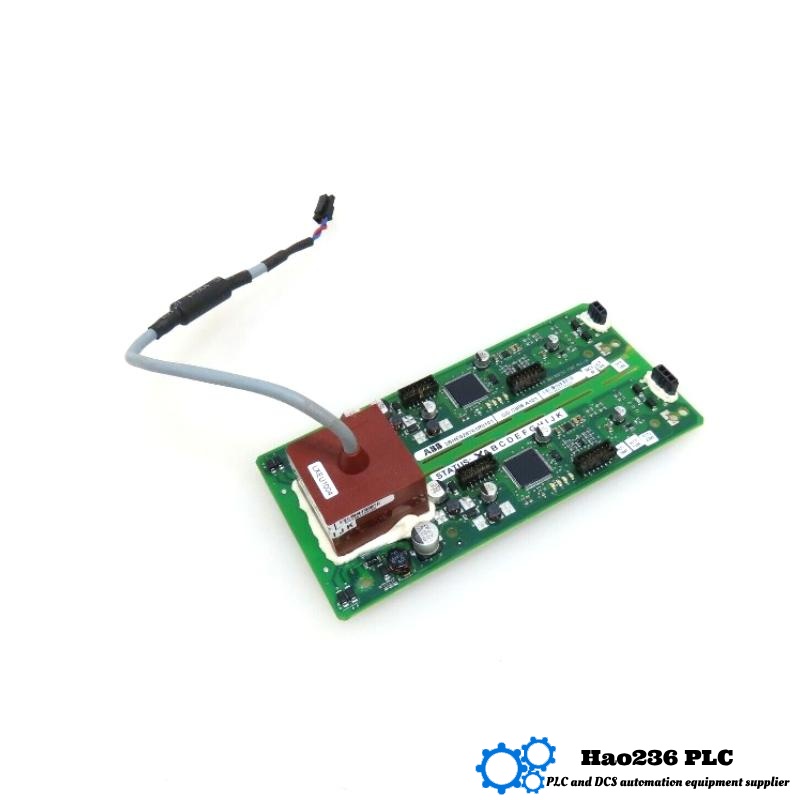

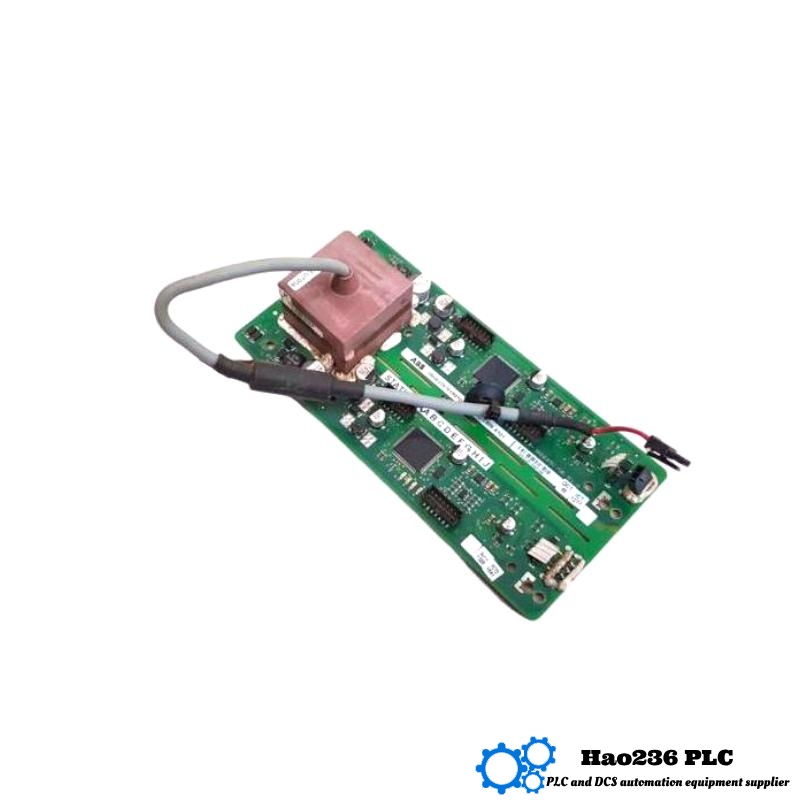

Q1: What is the GD C806A 1001 designed to do?
A1: It acts as a gate driver, managing power semiconductor switching in industrial drives.

Q2: Which systems commonly use this module?
A2: It’s deployed in ABB ACS2000 series drives in industrial automation and motor control.

Q3: What are the module’s dimensions?
A3: It measures approximately 120 × 100 × 25 mm.

Q4: How heavy is it?
A4: Between 0.25 kg and 0.35 kg depending on sub-assembly.

Q5: Is it easy to replace or source?
A5: Yes—this model is stocked as a spare part, facilitating quick replacement.

Q6: Does the module offer environmental resistance?
A6: Yes; it’s built to withstand industrial operating conditions.

Q7: What drives does it integrate with?
A7: It integrates with ACS2000 medium-voltage AC drive platforms.

Q8: Does the module include diagnostics?
A8: While details are limited, gate driver boards typically support gate feedback interfaces.

Q9: What semiconductors can it drive?
A9: It is suited for IGBTs, MOSFETs, and other power semiconductor devices.

Q10: Is this module custom or standard?
A10: It is a standard, off-the-shelf ABB spare that ships without special ordering.
