FAQ (Frequently Asked Questions)

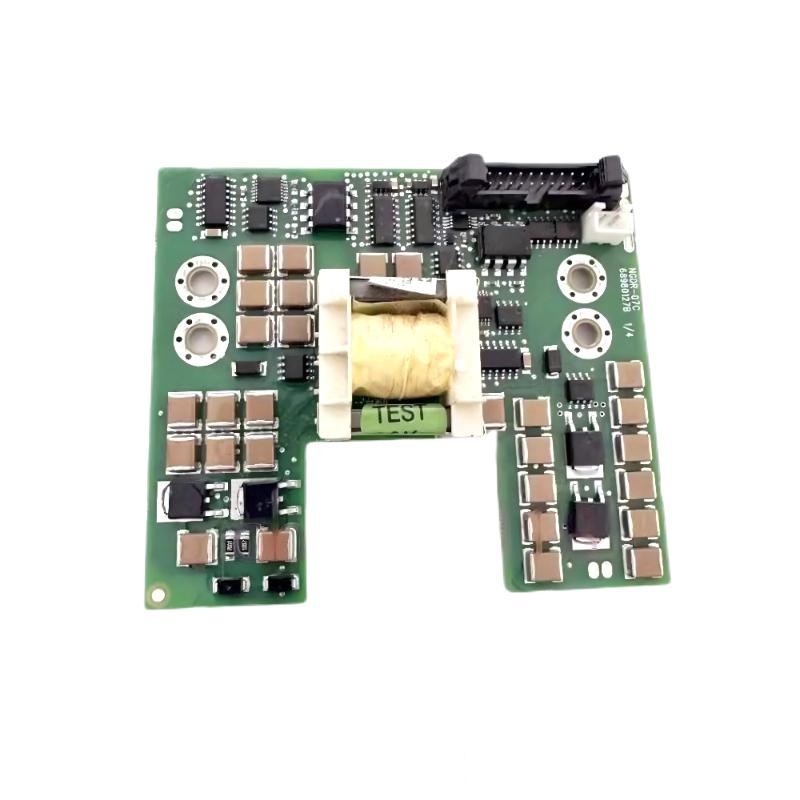

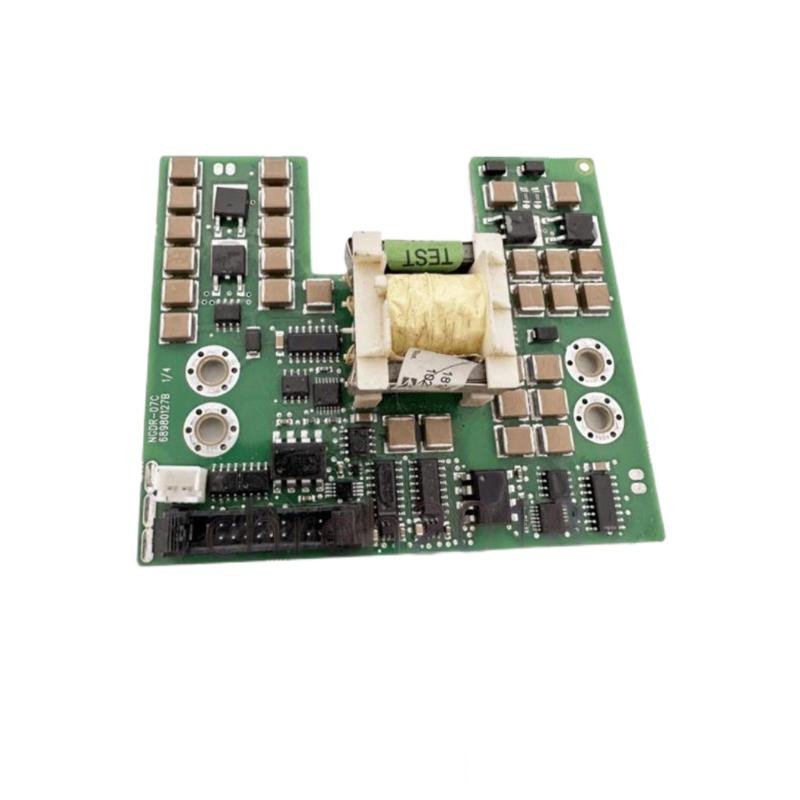

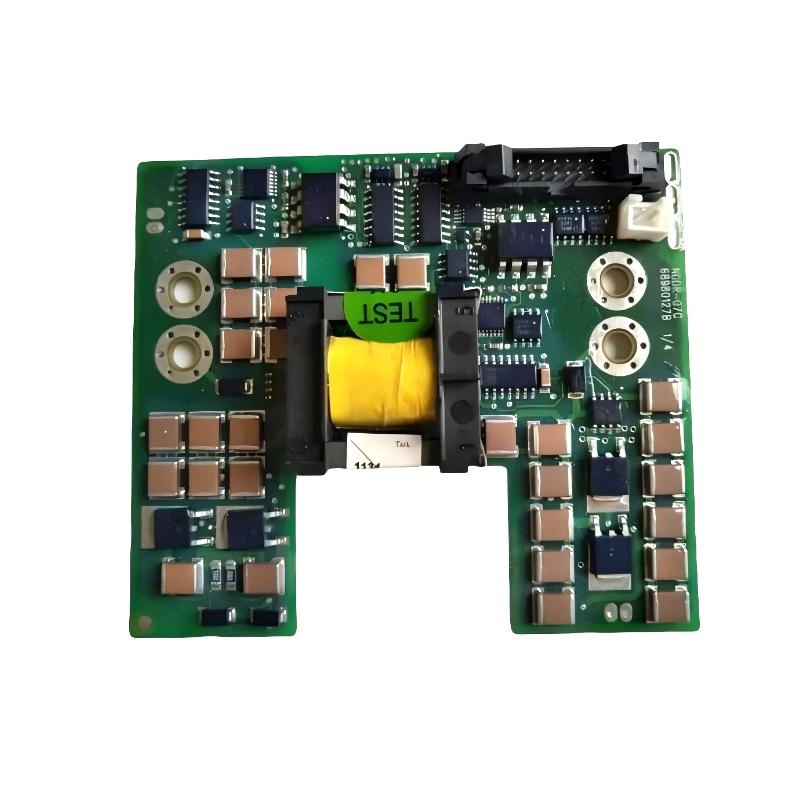

Q1: What is the primary function of the NGDR-07C trigger driver board?

A1: It controls the firing sequence of power semiconductors in inverter systems to convert DC to AC power efficiently.

Q2: What are the physical dimensions of the NGDR-07C?

A2: The board measures 159 x 149 x 20 mm.

Q3: How much does the NGDR-07C weigh?

A3: It weighs approximately 0.11 kg.

Q4: What type of power devices does this driver board support?

A4: It supports thyristors and IGBTs used in inverter circuits.

Q5: What environmental conditions can the NGDR-07C operate under?

A5: It operates reliably between –20°C and 70°C in typical industrial settings.

Q6: Is the NGDR-07C compatible with other ABB inverter products?

A6: Yes, it is designed to integrate smoothly with ABB inverter and drive systems.

Q7: What maintenance is required for this driver board?

A7: Minimal maintenance is needed due to its robust design; periodic inspection is recommended.

Q8: How is the NGDR-07C mounted?

A8: It can be panel-mounted or installed inside protective enclosures.

Q9: Does the NGDR-07C improve inverter efficiency?

A9: Yes, its precise triggering reduces switching losses and improves overall inverter performance.

Q10: Can the NGDR-07C handle high switching frequencies?

A10: It is optimized for fast switching applications, supporting high-frequency operations.
