FAQ (Frequently Asked Questions)

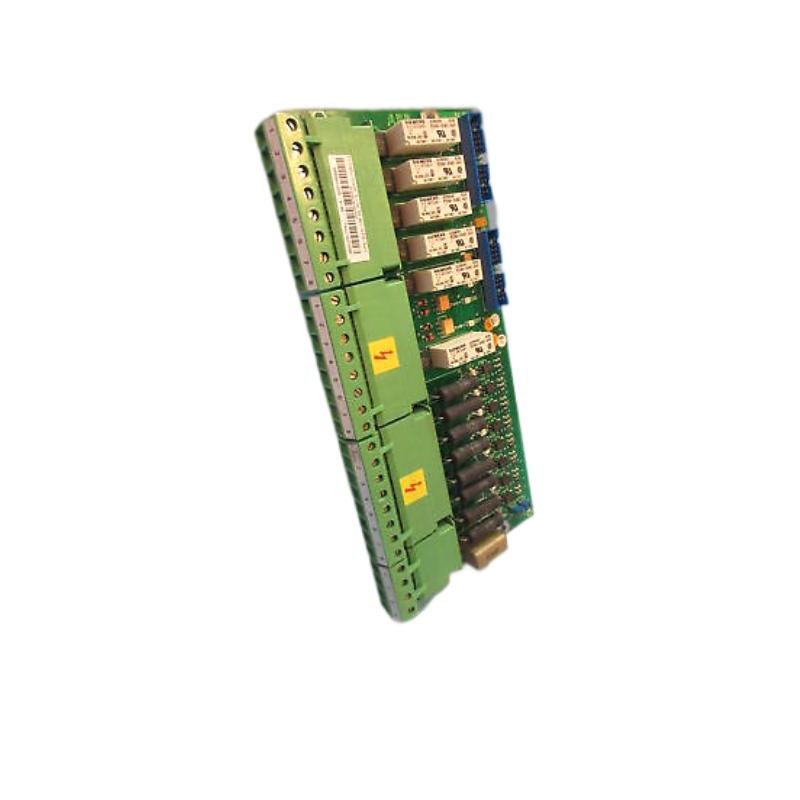

Q1: What is the main function of the SDCS-IOB-22?
A1: It acts as an Input/Output interface board, transferring and isolating control signals between field devices and the central control unit.

Q2: Which ABB drive systems are compatible with it?
A2: The SDCS-IOB-22 is compatible with ABB DCS400, DCS500, DCS600, and DCS800 series drives.

Q3: How many input and output channels does it provide?
A3: It includes 16 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs.

Q4: What is the operating voltage for this board?
A4: The board operates on a 24 VDC nominal supply voltage.

Q5: Does the SDCS-IOB-22 have electrical isolation?
A5: Yes, it provides 2.5 kV isolation between I/O and logic sections for signal safety.

Q6: What environmental conditions can it handle?
A6: It operates from 0°C to +55°C and can be stored between −40°C and +70°C, with humidity up to 95%.

Q7: What protection mechanisms are integrated?
A7: Surge suppression, short-circuit, and reverse-polarity protection are standard.

Q8: How can I monitor its operational status?
A8: LED indicators display power, communication, and fault conditions in real time.

Q9: Is it easy to replace or upgrade?
A9: Yes, its modular design allows quick replacement without system rewiring.

Q10: What are the size and weight of the SDCS-IOB-22?
A10: The module measures 190 mm × 125 mm × 40 mm and weighs approximately 0.74 kg.
