FAQ (Frequently Asked Questions)

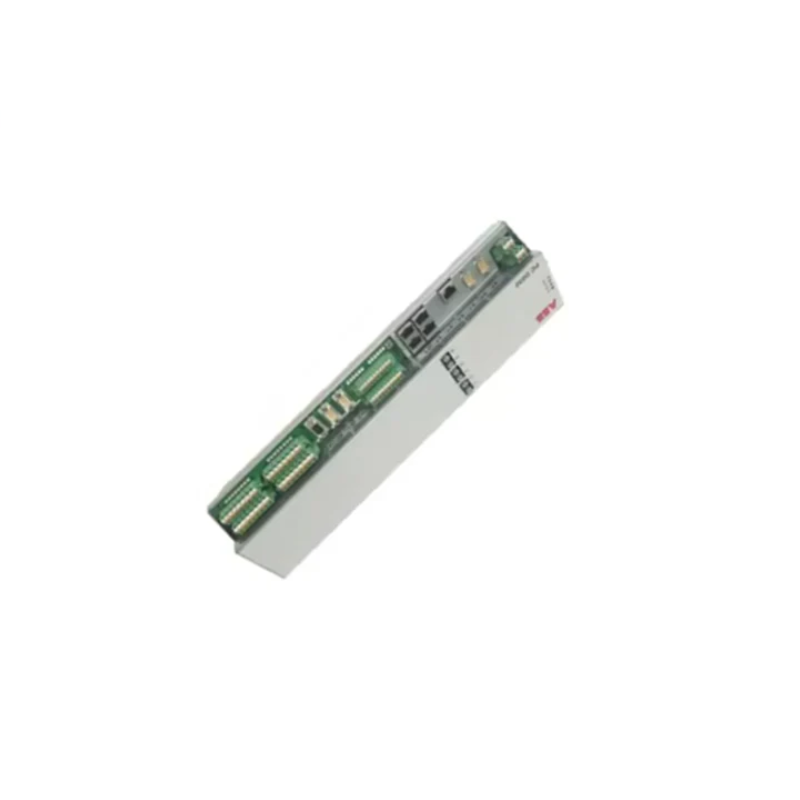

Q1: What is the main function of the SDCS‑MP‑1 board?
A1: It acts as a measurement or signal‑monitoring board within ABB’s DCS modular drive system.

Q2: What supply voltage does the module use?
A2: It is designed to operate under a 24 V DC supply for the board electronics.

Q3: What is the typical size and weight?
A3: Approximately 180 mm × 140 mm × 25 mm and weight about 0.23 kg.

Q4: Is it designed for new installations or retrofit?
A4: It is suitable for both new installations and retrofit scenarios where measurement/monitoring boards are required.

Q5: What environments is the board built for?
A5: Industrial drive and automation environments with wide temperature ranges and modular cabinet use.

Q6: How does it help reduce downtime?
A6: As a modular board, it can be swapped quickly without replacing full drive units, thus reducing maintenance downtime.

Q7: Which series does it belong to?
A7: It belongs to the DCS Control System Series by ABB, specifically the “MP” measurement board family.

Q8: Can it be used as a spare part for drive service?
A8: Yes — its modular design makes it ideal as a spare board for service kits.

Q9: Does it support signal measurement only, or control tasks as well?
A9: Primarily measurement/monitoring tasks within the drive system, not the main control of the motor/drive output.

Q10: What advantage does the board offer compared to replacing large modules?
A10: It offers a cost‑effective path by replacing a smaller module rather than a large drive system, thereby saving cost and reducing downtime.
