FAQ (Frequently Asked Questions)

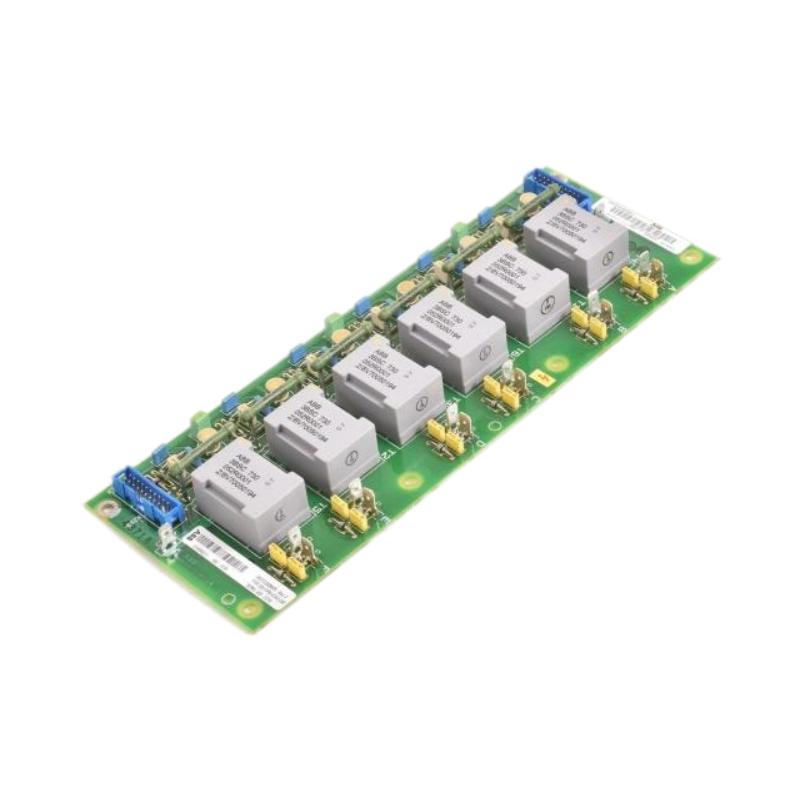

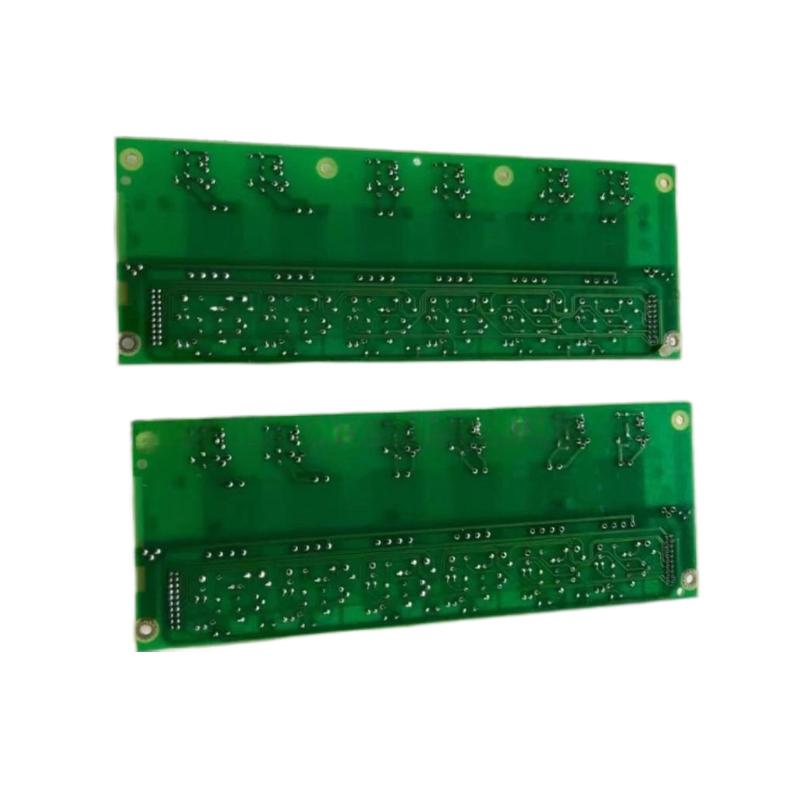

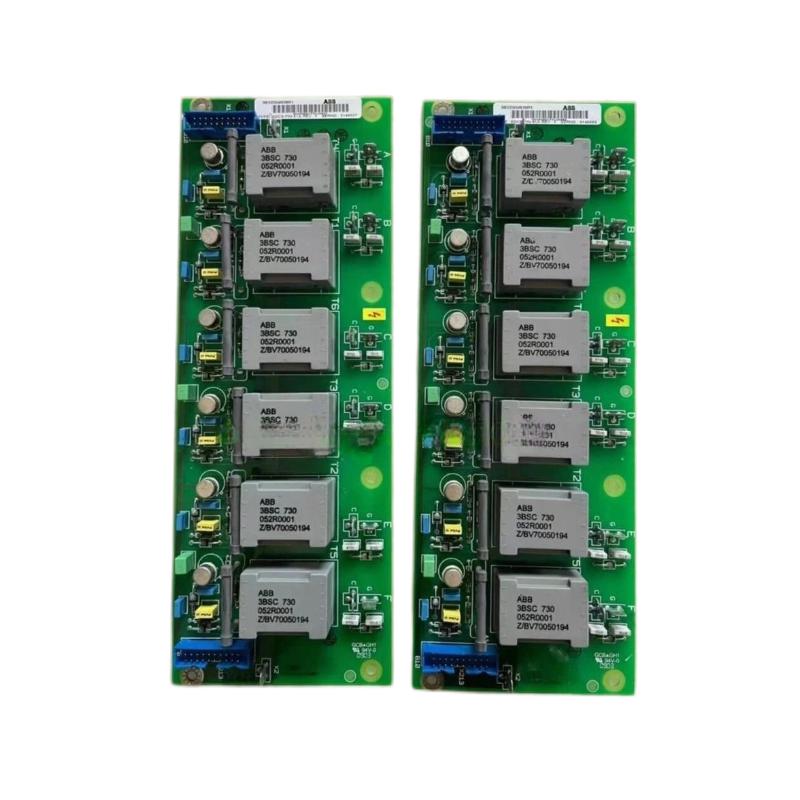

Q1: What is the function of the SDCS-PIN-41A module?
A1: It converts encoder or tachometer signals into standard pulse feedback for the drive’s control system, supporting dual encoder inputs.

Q2: What drives are compatible with the SDCS-PIN-41A?
A2: It is compatible with ABB DCS 500, DCS 600, and DCS 800 series drives.

Q3: Can it handle two encoders simultaneously?
A3: Yes, the SDCS-PIN-41A is designed for dual-channel encoder operation.

Q4: What is the power supply requirement?
A4: The module operates on 24 V DC (±10%).

Q5: What kind of encoders can be connected?
A5: It supports TTL, HTL, and RS-422 standard encoders.

Q6: Is the module plug-and-play?
A6: Yes, it installs easily in the drive’s control rack with no external configuration required.

Q7: What diagnostic features does it have?
A7: Built-in LED indicators show power, signal, and fault conditions.

Q8: How is it protected against electrical faults?
A8: It includes surge, reverse polarity, and short-circuit protection circuits.

Q9: What is the typical operational temperature range?
A9: It functions reliably from 0 °C to +55 °C.

Q10: What is its expected service life?
A10: More than 10 years under standard industrial operating conditions.
