ABB SDCS-UCM-1C 3ADT220090R0008 Measurement Board Product Introduction The ABB SDCS-UCM-1C 3ADT220090R0008 is a high-precision measurement board designed to operate within ABB’s legacy DCS (Drive ……

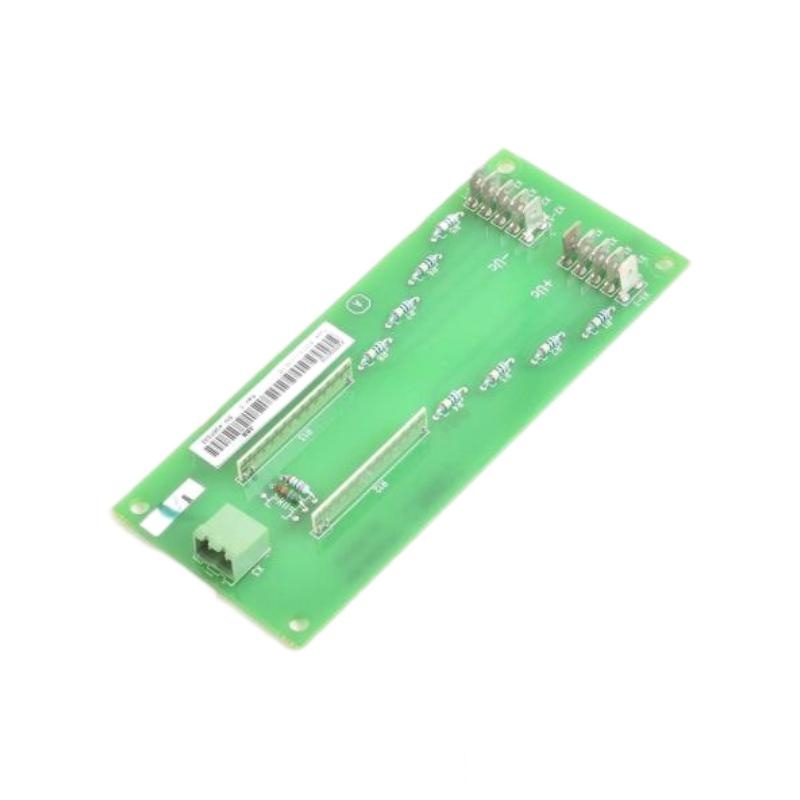

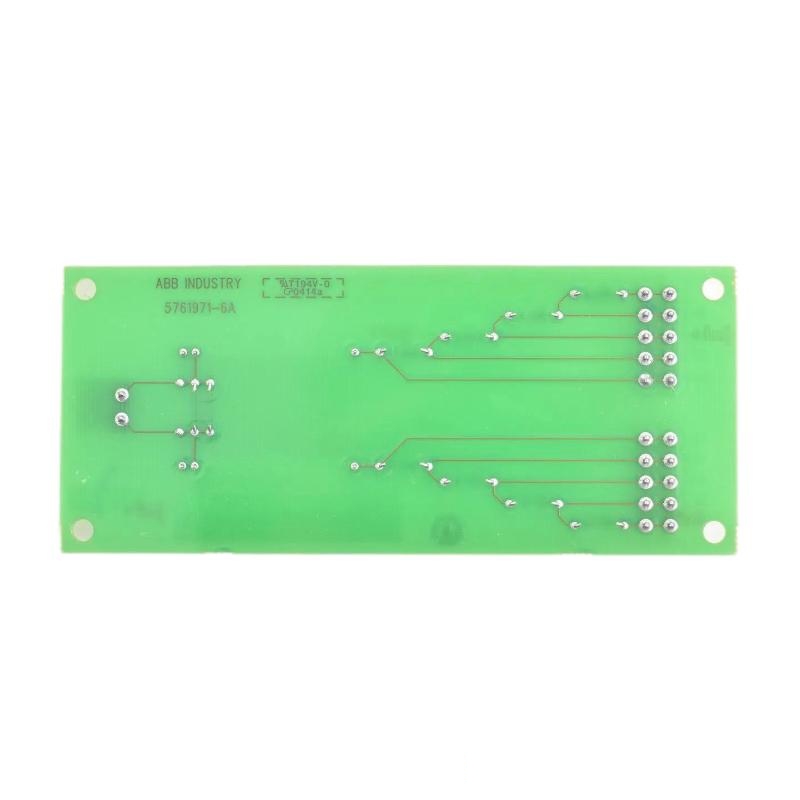

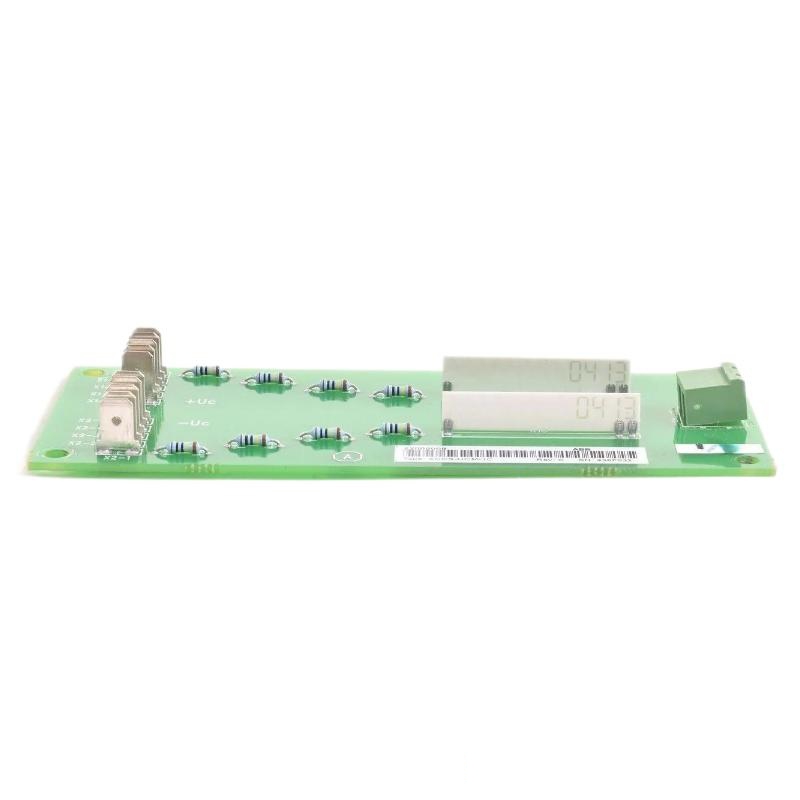

ABB SDCS-UCM-1C 3ADT220090R0008 Measurement Board

Manufacturer: ABB
Product Number: SDCS-UCM-1C
Product Type: Measurement Board
Origin: Switzerland
Dimensions: 220 x 110 x 30mm
Weight: 0.3 kg
Order Number: 3ADT220090R0008
Shipping Port:Xiamen, China
Condition:New & In Stock
Payment Methods:T/T, PayPal, Western Union
Warranty:1 Year
Lead Time:1-3 Working Days
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:24-Hour Service
Certificate:COO
Views:299

Request Quote

Our advantage

ABB SDCS-UCM-1C 3ADT220090R0008 Measurement Board

Global Logistics

We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.

Brand new and original

Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.

24-hour service

We provide 7*24 hours service to our customers. We will be there whenever you need us.

Price advantage

All our products are priced very favorably because we have our own warehouse and supply.

FAQ (Frequently Asked Questions)

Q1: What system is the SDCS-UCM-1C compatible with?
A1: It is compatible with ABB’s DCS 400, DCS 500, and DCS 600 drive systems.

Q2: What signals does the SDCS-UCM-1C measure?
A2: It measures current, voltage, and temperature signals and provides analog/digital feedback.

Q3: What is the weight of the SDCS-UCM-1C module?
A3: The measurement board weighs approximately 0.3 kg.

Q4: Can the SDCS-UCM-1C be used in modern ABB drives?
A4: It is designed for legacy DCS systems; newer ABB drives use updated modules.

Q5: What are the board’s physical dimensions?
A5: The module measures 220 x 110 x 30 mm.

Q6: What kind of protection does the SDCS-UCM-1C include?
A6: It includes built-in protection against over-voltage and signal surges.

Q7: How is the SDCS-UCM-1C mounted?
A7: It can be panel-mounted or fixed using screws.

Q8: What is the typical operating temperature range for the module?
A8: It operates reliably between –10°C and +60°C.

Q9: Is the SDCS-UCM-1C still available from ABB?
A9: It is generally considered a legacy component but is available through ABB distributors and refurbished suppliers.

Q10: What industries typically use the SDCS-UCM-1C?
A10: Industries such as steel, cement, pulp & paper, and mining rely on this module for drive monitoring and feedback.
