ABB SDCS-UCM-1C DCF1224246R0001 Measurement Board Product Introduction The ABB SDCS-UCM-1C DCF1224246R0001 is a precision measurement board developed for use within ABB’s Drive Control System (DCS) plat……

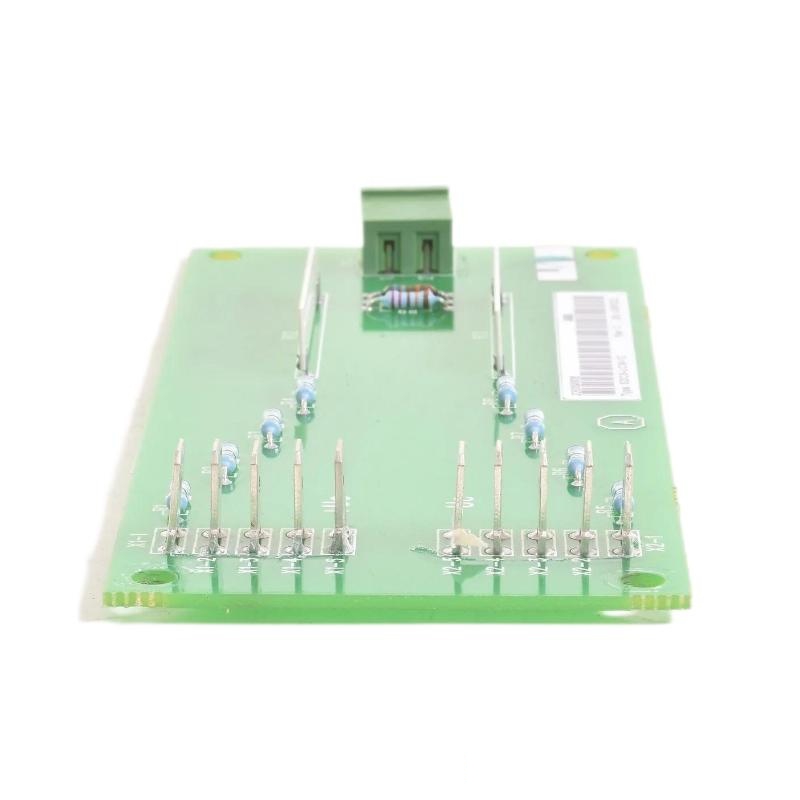

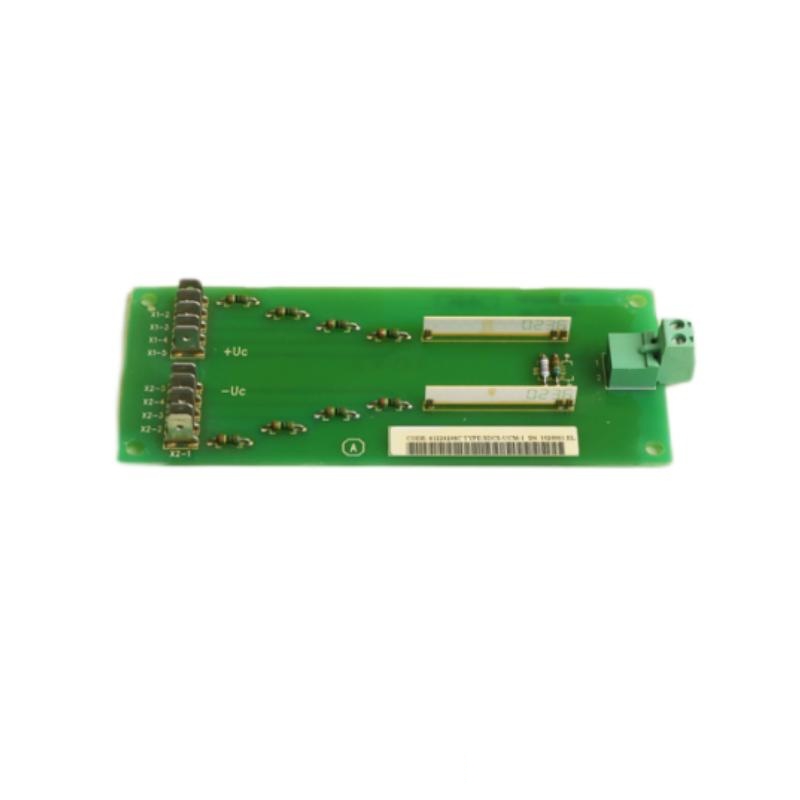

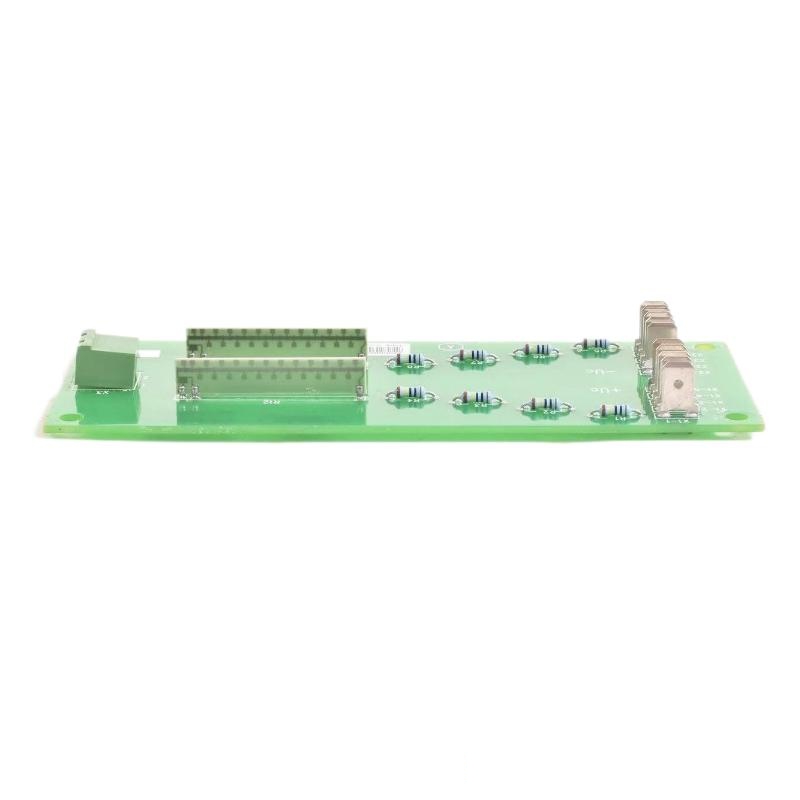

ABB SDCS-UCM-1C DCF1224246R0001 Measurement Board

Manufacturer: ABB
Product Number: SDCS-UCM-1C
Product Type: Measurement Board
Origin: Switzerland
Dimensions: 220 x 110 x 30mm
Weight: 0.3 kg
Order Number: DCF1224246R0001
Shipping Port:Xiamen, China
Condition:New & In Stock
Payment Methods:T/T, PayPal, Western Union
Warranty:1 Year
Lead Time:1-3 Working Days
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:24-Hour Service
Certificate:COO
Views:273

Request Quote

Our advantage

ABB SDCS-UCM-1C DCF1224246R0001 Measurement Board

Global Logistics

We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.

Brand new and original

Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.

24-hour service

We provide 7*24 hours service to our customers. We will be there whenever you need us.

Price advantage

All our products are priced very favorably because we have our own warehouse and supply.

FAQ (Frequently Asked Questions)

Q1: Which ABB drive systems is the SDCS-UCM-1C DCF1224246R0001 compatible with?
A1: It is compatible with ABB DCS 400, DCS 500, and DCS 600 drive platforms.

Q2: What electrical parameters does the board measure?
A2: It measures voltage, current, and temperature signals with high precision.

Q3: What are the physical dimensions of the measurement board?
A3: The board measures 220 x 110 x 30 mm.

Q4: How much does the SDCS-UCM-1C DCF1224246R0001 weigh?
A4: It weighs approximately 0.3 kg.

Q5: Is the board suitable for harsh industrial environments?
A5: Yes, it is designed to operate reliably between –10°C and +60°C and includes overvoltage protection.

Q6: How is the measurement board installed?
A6: It is mounted on panels using screws.

Q7: Can this board be used in new ABB drive systems?
A7: No, it is designed for legacy ABB DCS systems, not modern drive platforms.

Q8: What type of output signals does the board provide?
A8: Both analog and digital signals for integration with control units.

Q9: Does the SDCS-UCM-1C have built-in protection features?
A9: Yes, it features surge and overvoltage protection to safeguard the module.

Q10: Where is this module typically used?
A10: Commonly used in steel mills, cement plants, mining, pulp and paper, and manufacturing plants using ABB legacy drives.
