FAQ (10 Q&A)

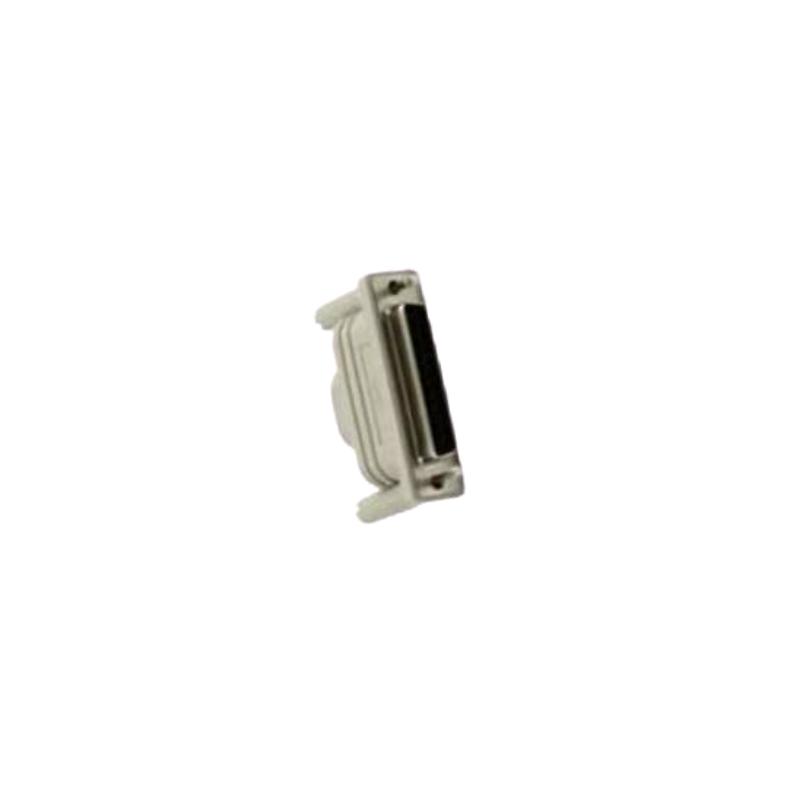

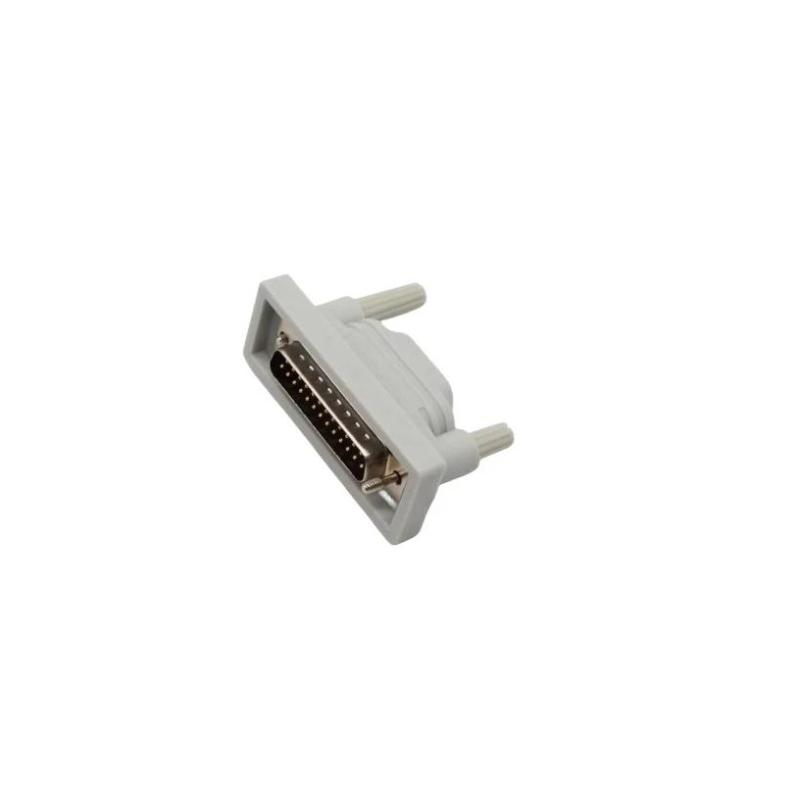

Q1: What is the TB851 used for?
A1: It terminates the CEX‑Bus line to prevent signal reflections and maintain communication integrity.

Q2: Does it require external power?
A2: No, it is a passive module and operates without power.

Q3: Where should it be installed?
A3: At the end of the CEX‑Bus line in the control system cabinet.

Q4: Which systems is it compatible with?
A4: ABB AC 800M and 800xA distributed control systems.

Q5: Can it be reused in another installation?
A5: Yes, if the module is still functional and properly installed.

Q6: What happens if the terminator is missing?
A6: Signals may reflect back, causing data errors or communication failures.

Q7: What environmental conditions can it handle?
A7: Operating temperature 0–55 °C, storage −40–+70 °C, humidity 5–95 % non‑condensing.

Q8: How is it mounted?
A8: On a DIN rail or panel mount with standard screws.

Q9: Does it provide diagnostic feedback?
A9: No, it is passive; status is monitored indirectly through bus performance.

Q10: Is it compliant with environmental standards?
A10: Yes, it is RoHS and CE compliant.
