FAQ (10 Questions and Answers)

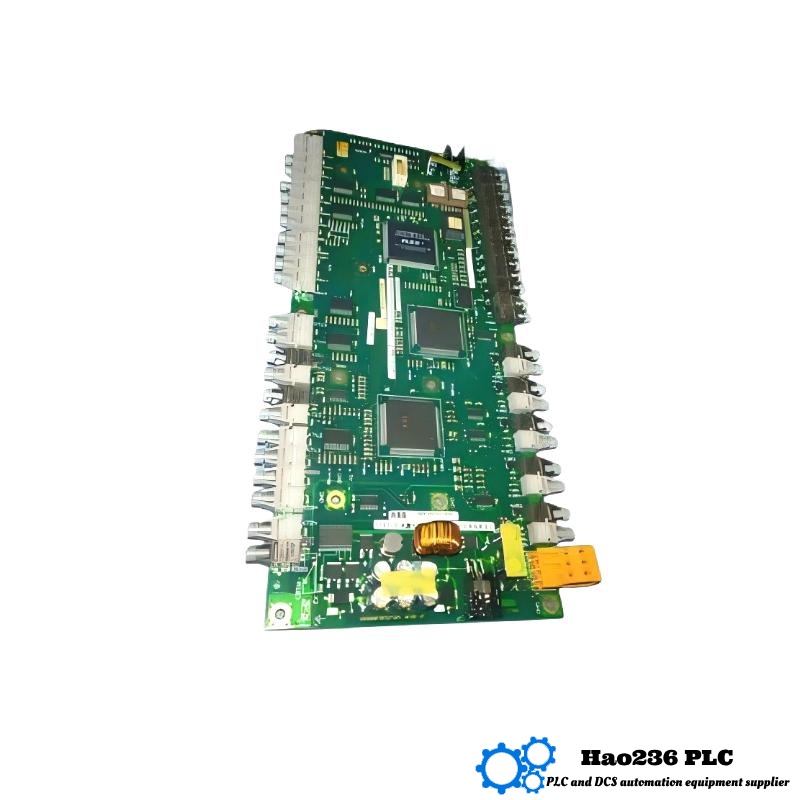

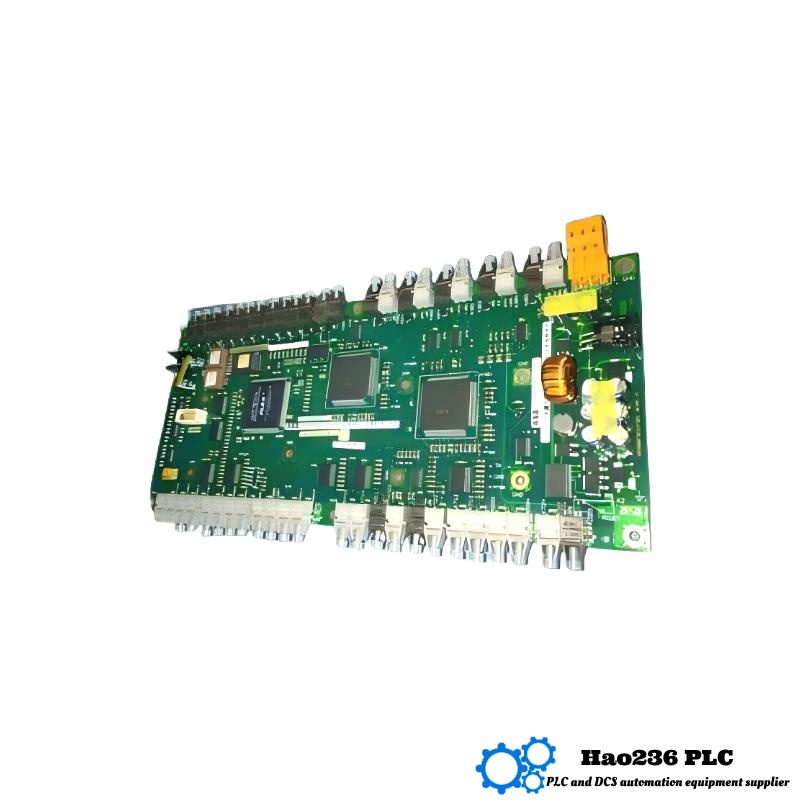

Q1: What is the primary function of the UFC760BE103 3BHB007030R0103 IGCT module?
A1: The UFC760BE103 IGCT module is designed for high-speed power switching in industrial applications, particularly for motor drives, power inverters, and electric grids.

Q2: How does the integrated gate drive benefit the UFC760BE103 module?
A2: The integrated gate drive reduces the need for external components, simplifying installation and improving system reliability.

Q3: What is the maximum switching frequency of the UFC760BE103?
A3: The UFC760BE103 can operate at switching frequencies up to 20 kHz, making it ideal for fast switching applications.

Q4: Can the UFC760BE103 be used in renewable energy systems?
A4: Yes, the module is ideal for use in power inverters, particularly in renewable energy systems like wind and solar power generation.

Q5: What is the current rating of the UFC760BE103?
A5: The UFC760BE103 has a current rating of 760 A, making it suitable for medium- to high-power industrial applications.

Q6: What is the temperature range for the UFC760BE103 module?
A6: The UFC760BE103 operates within a temperature range of -40°C to +125°C, allowing it to perform in extreme environmental conditions.

Q7: How compact is the UFC760BE103 module?
A7: The module has dimensions of 160 × 90 × 30 mm, allowing for installation in compact spaces.

Q8: What type of cooling does the UFC760BE103 require?
A8: The UFC760BE103 uses forced air cooling to maintain its operating temperature and ensure reliability.

Q9: Is the UFC760BE103 compatible with other ABB systems?
A9: Yes, the UFC760BE103 is compatible with other ABB power electronics and automation systems, particularly in high-power industrial applications.

Q10: How does the UFC760BE103 compare to other IGCT modules in the UFC series?
A10: The UFC760BE103 offers a balanced performance for medium-power applications, with a current rating of 760 A and fast switching, similar to other models in the UFC series but optimized for specific applications like power inverters and motor drives.
