Frequently Asked Questions (FAQ)

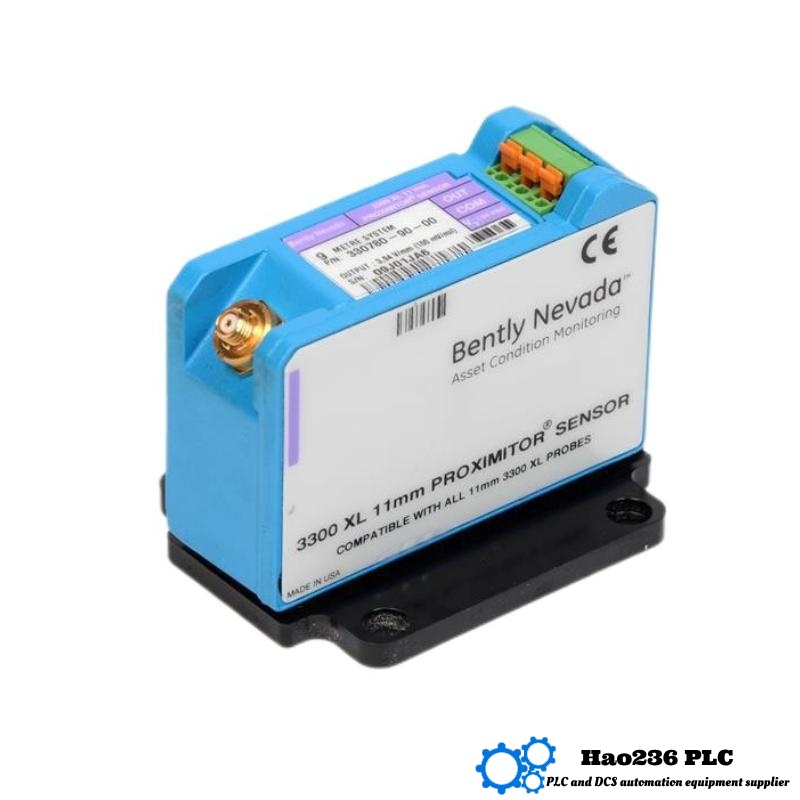

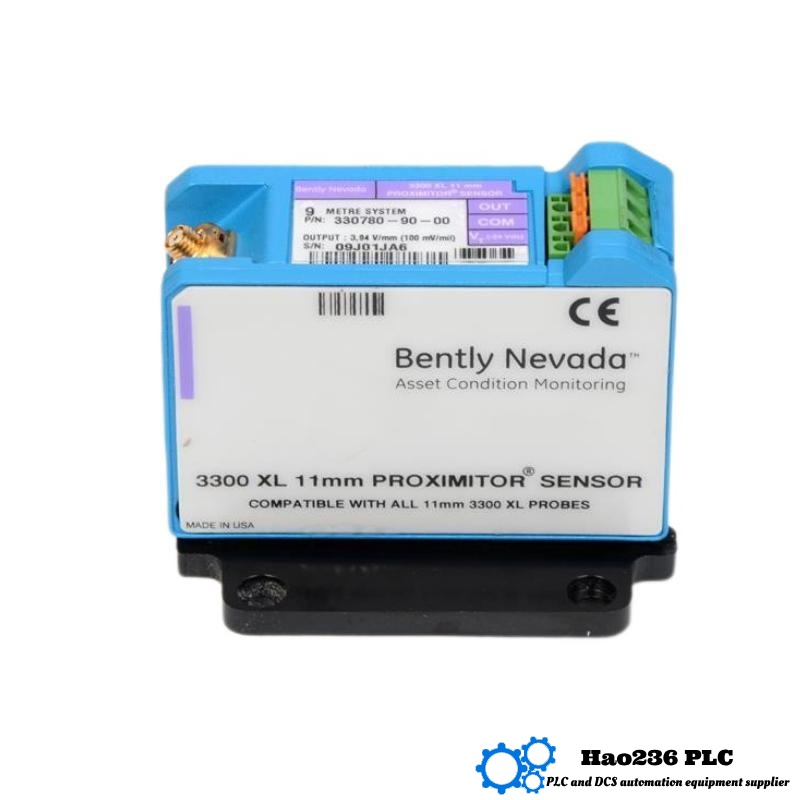

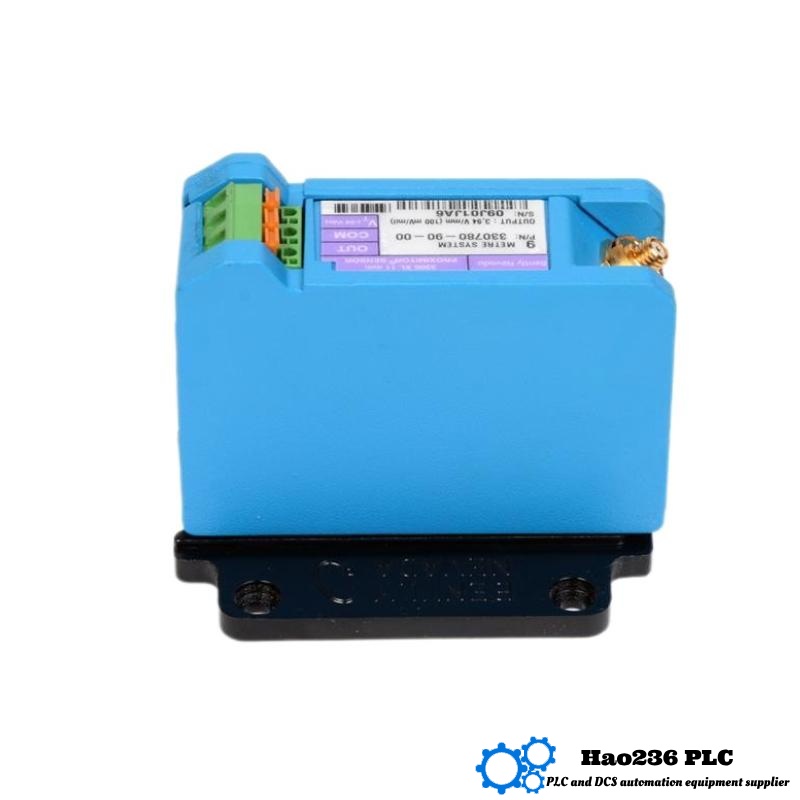

Q1: What is the primary function of the 330780-90-00 sensor?
A1: The sensor measures shaft displacement and vibration to monitor the health of rotating machinery.

Q2: What is the system length of this model?
A2: The 330780-90-00 sensor has a system length of 9.0 meters (29.5 feet).

Q3: What is the mounting type for this sensor?
A3: This model features a panel mount configuration.

Q4: What is the output signal of the sensor?
A4: The sensor provides a 3.94 V/mm (100 mV/mil) output.

Q5: What is the operating temperature range?
A5: The sensor operates between -52°C and +100°C.

Q6: What is the storage temperature range?
A6: The sensor can be stored between -52°C and +105°C.

Q7: Is the sensor resistant to humidity?
A7: Yes, it is designed to withstand 100% condensing humidity, though it is non-submersible.

Q8: What is the weight of the sensor?
A8: The sensor weighs approximately 0.246 kg.

Q9: What are the dimensions of the sensor?
A9: The sensor measures 81.3 × 50 × 63.5 mm.

Q10: Is the sensor compatible with existing monitoring systems?
A10: Yes, it is compatible with the 3300 XL series monitoring systems.
