FAQ (10 Q&A)

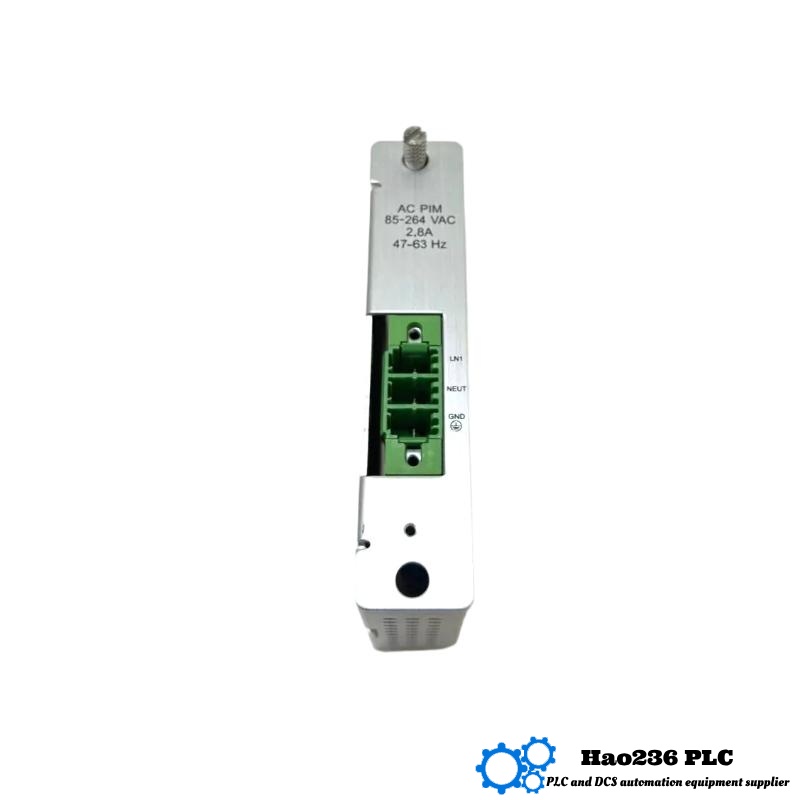

Q1: What input voltages does 3500/15 126564‑01 support?
A1: It likely supports both AC (e.g. 85–264 VAC) and DC (e.g. 20–30 VDC) inputs, enabling flexible deployment in different plant power setups.

Q2: What is its regulated output?
A2: The module is expected to deliver 24 VDC to the rack bus and internal modules.

Q3: Can it be used redundantly?
A3: Yes — it should support single or dual-redundant configuration to improve reliability of the monitoring system.

Q4: What environmental conditions can it tolerate?
A4: Designed for industrial environments — typical operating temperature from –30°C to +65°C and storage down to –40°C, humidity up to 95% non-condensing.

Q5: What protection features are built in?
A5: Likely includes overcurrent, short-circuit protection, thermal shutdown, and input surge protection.

Q6: How large is the module physically?
A6: The module likely has dimensions around 120.7 mm height × 50.8 mm width × 251.5 mm depth (typical 3500/15 module form factor).

Q7: How heavy is it?
A7: Its weight is probably in the range of ~ 1.3 to 1.5 kilograms, similar to comparable modules.

Q8: In which slot of the rack is it installed?
A8: It is intended to occupy the leftmost (power supply) slot(s) of the 3500 rack backplane.

Q9: What industries use this module?
A9: Power generation, petrochemical, oil & gas, water treatment, heavy manufacturing — anywhere machinery protective monitoring is critical.

Q10: How often should it be maintained or tested?
A10: Routine periodic inspections of operating temperature, voltages, and module status are recommended; the module is typically designed for long service life with minimal maintenance.
