FAQ (De‑AI’d Q&A)

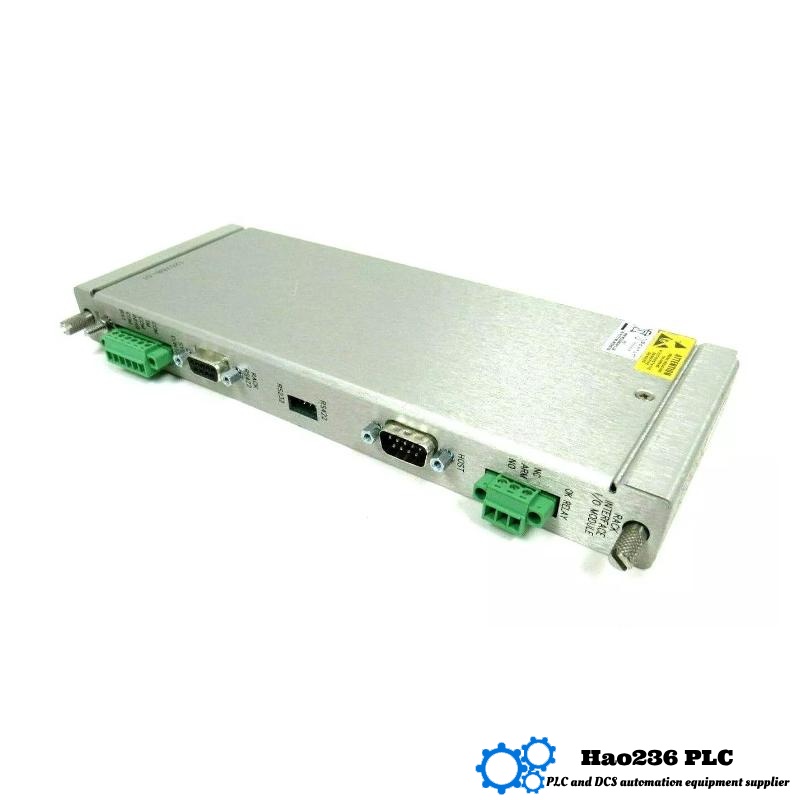

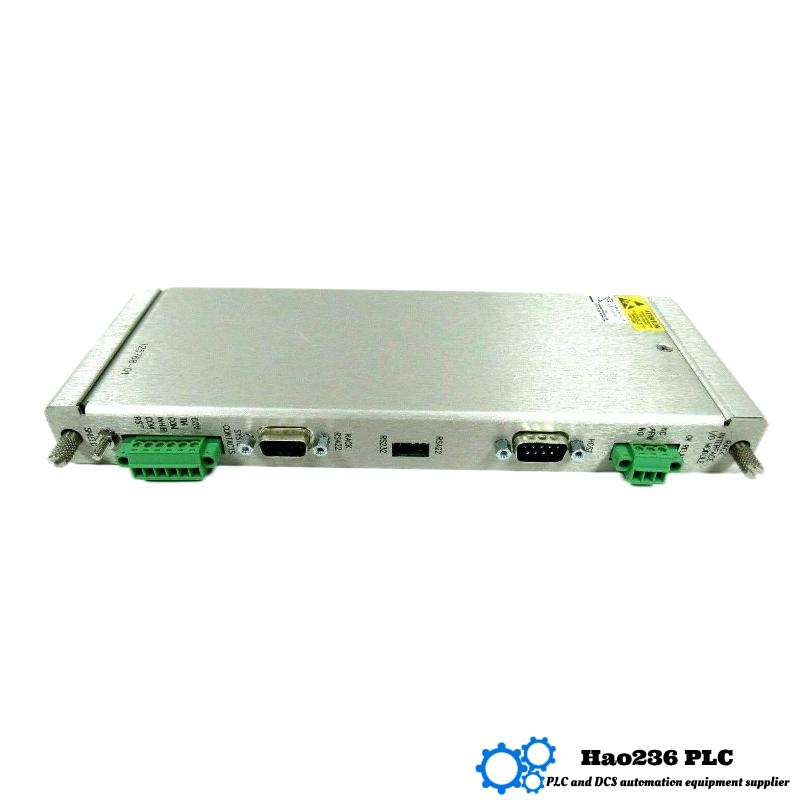

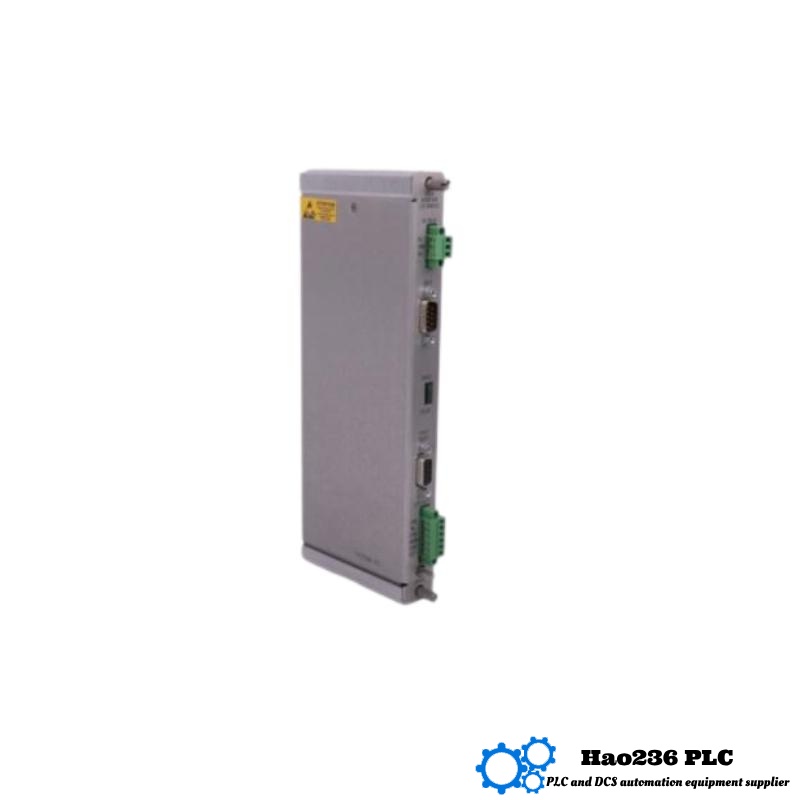

Q1: What is the role of the 125744‑02 module?
A1: It acts as the rack interface, handling configuration commands and data exchange with external tools without affecting the protection path.

Q2: What does the 125768‑01 module do?
A2: It provides RS‑232 or RS‑422 I/O to connect external devices for configuration and data logging.

Q3: Are these modules hot‑swappable?
A3: Yes—they can be replaced while the system is active, without shutting down the entire rack.

Q4: How much power do they consume?
A4: The rack interface consumes about 4.75 W; the I/O module consumes up to 5 W.

Q5: What temperature range do they operate within?
A5: Both modules operate reliably from –40 °C to +85 °C.

Q6: Do they support redundancy?
A6: Yes—the 125744‑02 supports a TMR configuration to compare module outputs across three redundant systems.

Q7: What physical space do they occupy?
A7: They occupy full‑height front and rear slots of a standard monitoring rack.

Q8: What LED indicators are available?
A8: The rack interface has LEDs for power, RX/TX, config validity, and trip multiplier status, plus a key‑lock switch.

Q9: Can they be used with long cables?
A9: Yes, RS‑422 communications support long cable distances (hundreds of meters), suitable for remote control rooms.

Q10: Why separate interface from monitoring path?
