FAQ (10 Q&A)

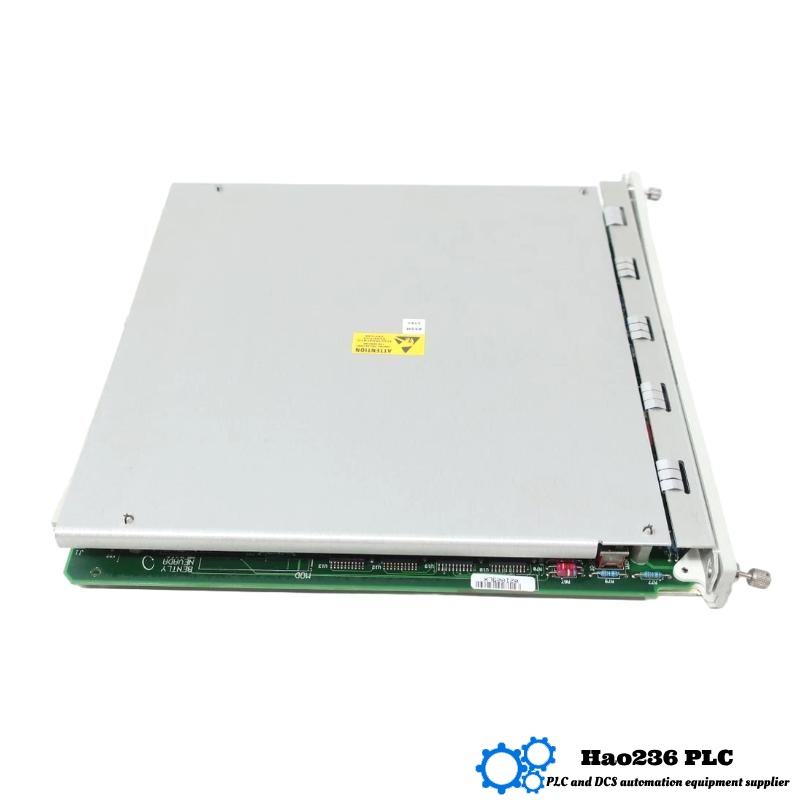

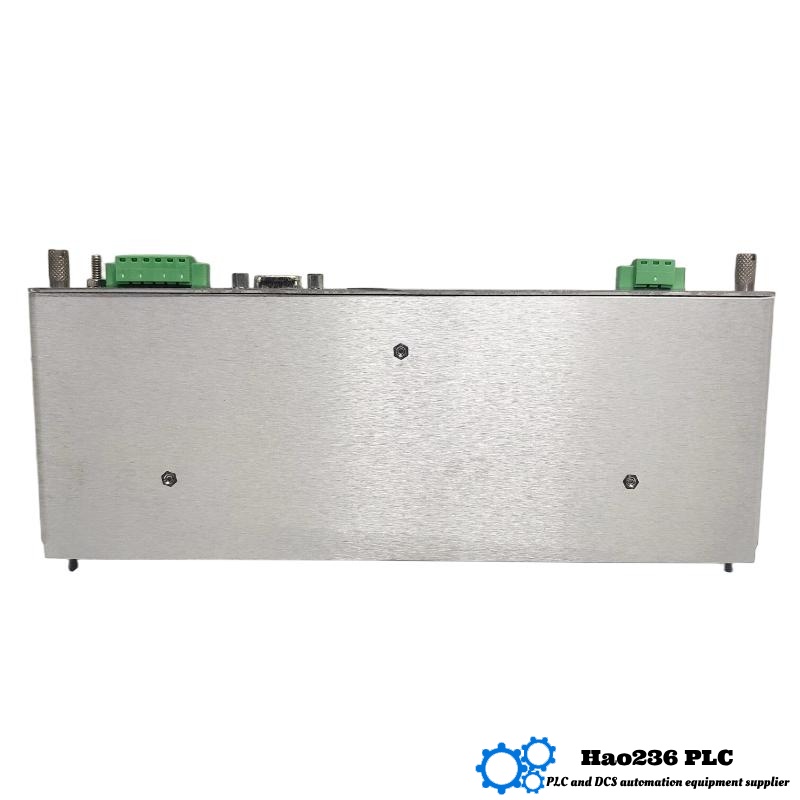

Q1: What is the primary role of module 125744‑02 in the 3500 system?
A1: It serves as the Rack Interface Module (RIM), the communication and control hub for the 3500 rack, connecting rack internals to external systems.

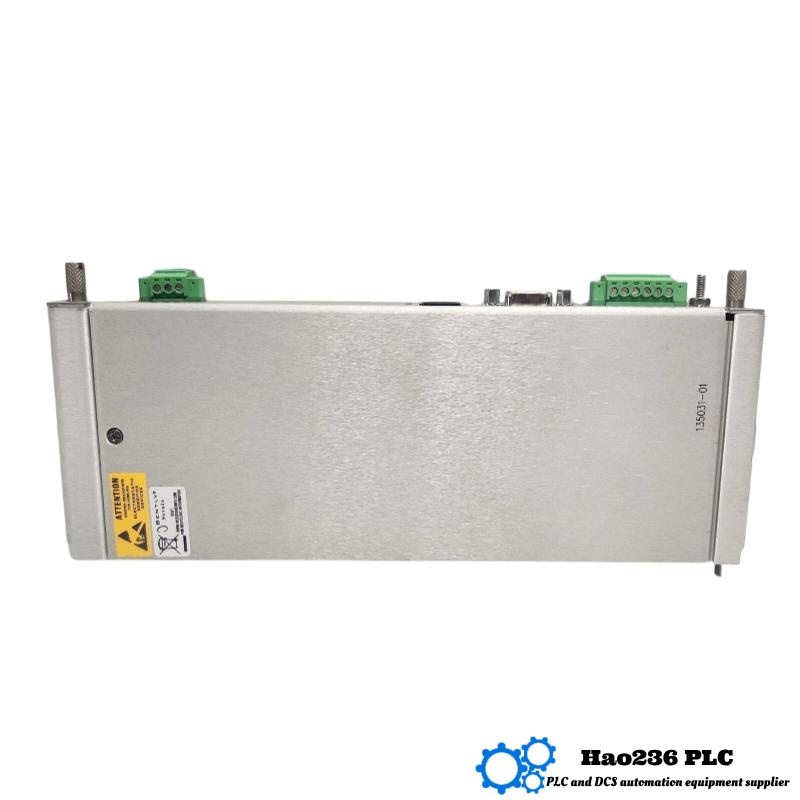

Q2: How does module 135031‑01 support the RIM?
A2: The 135031‑01 is an I/O expansion module that attaches to the RIM to provide additional external interface capability (modem, digital/analog channels, signaling).

Q3: What is the typical power consumption of 125744‑02?
A3: The typical consumption is about 4.75 W.

Q4: What environmental temperature range can 125744‑02 operate in?
A4: It can operate reliably from –30 °C to +65 °C.

Q5: What are the communication speeds / limits of the RIM?
A5: The RIM supports up to 38.4 k baud on the front panel serial interface; RS422 links up to long cable distances; internal rack bus also supports long runs.

Q6: How long can the modem cable be for the I/O module?
A6: The modem or I/O cable length is limited to about 2.1 meters (7 feet).

Q7: What are the physical dimensions of RIM and I/O modules?
A7: RIM: 241.3 mm × 24.4 mm × 241.8 mm; I/O: 241.3 mm × 24.4 mm × 99.1 mm.

Q8: What are their weights?
A8: RIM weighs ~0.91 kg; I/O module (135031‑01) weighs ~0.45 kg.

Q9: Can you replace or upgrade the RIM / I/O while the rack is live?
A9: In many installations, with care and proper procedure, module replacement is feasible with minimal disruption, though external communications may momentarily drop.

Q10: In what kinds of plants is this module combination used?
A10: It is used in power plants, petrochemical and refining, oil & gas platforms, and any facility using 3500 racks for condition monitoring requiring external communications and signaling.
