❓ FAQs

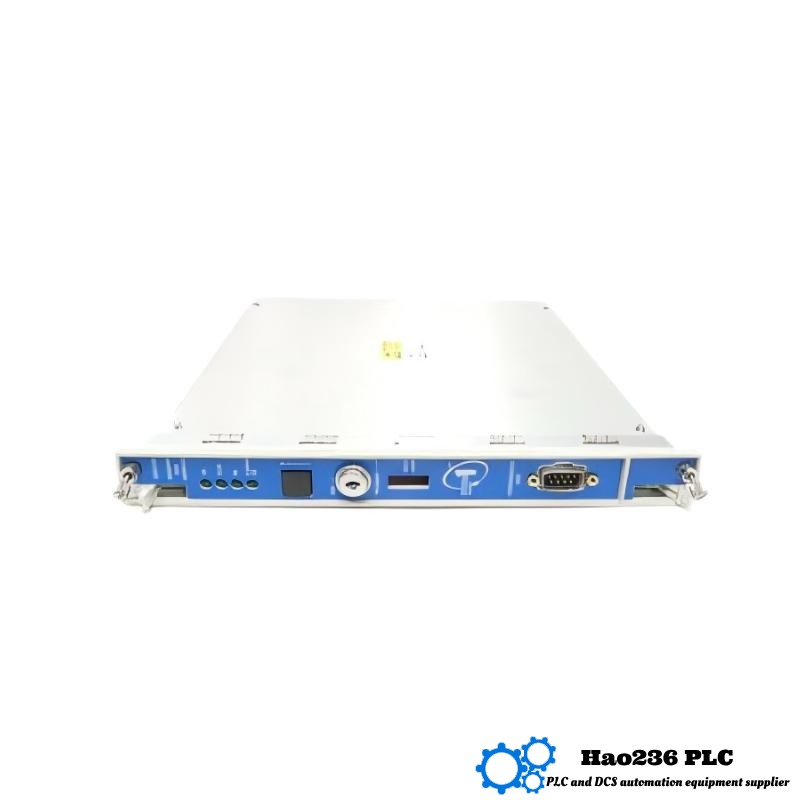

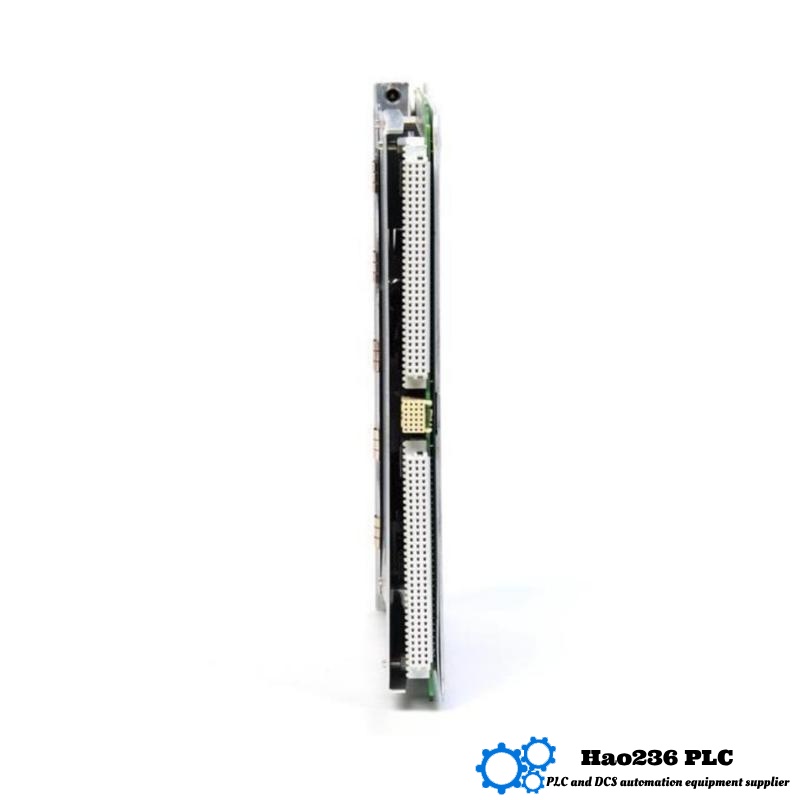

Q1: What is the primary function of the 3500/22 138607-01 module?
A1: The module serves as the interface between the 3500 monitoring system and external systems, enabling high-speed data transfer for transient data collection and analysis.

Q2: What communication protocols does the module support?
A2: The module supports RS-485, Modbus RTU, DeviceNet, and CANopen communication protocols.

Q3: What is the power consumption of the module?
A3: The module operates with a power consumption of 10.5 W.

Q4: What is the operating temperature range of the module?
A4: The module functions within a temperature range of –40°C to +85°C.

Q5: What are the dimensions of the module?
A5: The module has dimensions of 94 mm × 136 mm × 66 mm.

Q6: What is the weight of the module?
A6: The module weighs approximately 0.2 kg.

Q7: What is the required power supply voltage for the module?
A7: The module requires a DC power supply voltage ranging from 9 to 36 VDC.

Q8: Can the module operate in high humidity environments?
A8: Yes, the module is designed to operate reliably in environments with up to 95% relative humidity, non-condensing.

Q9: Is the module compatible with other systems beyond the Bently Nevada 3500 series?
A9: The module supports standard communication protocols like Modbus RTU and DeviceNet, enabling compatibility with various industrial control systems.

Q10: How critical is this module for machinery protection systems?
A10: It is very critical, as it ensures timely and accurate data transfer needed for transient event monitoring and overall machinery health management.
