❓ FAQ – Frequently Asked Questions (Q&A)

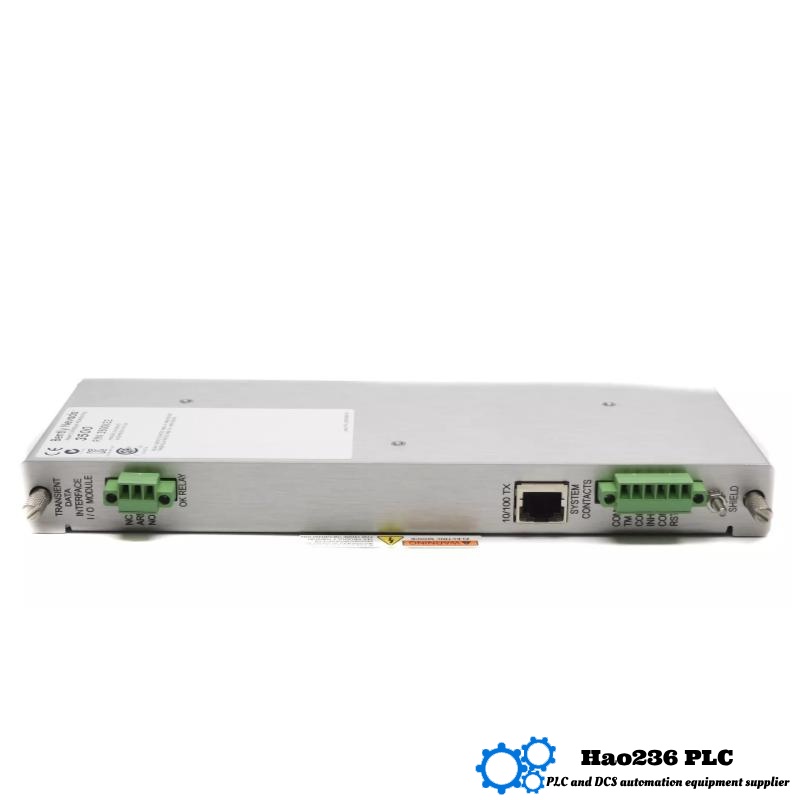

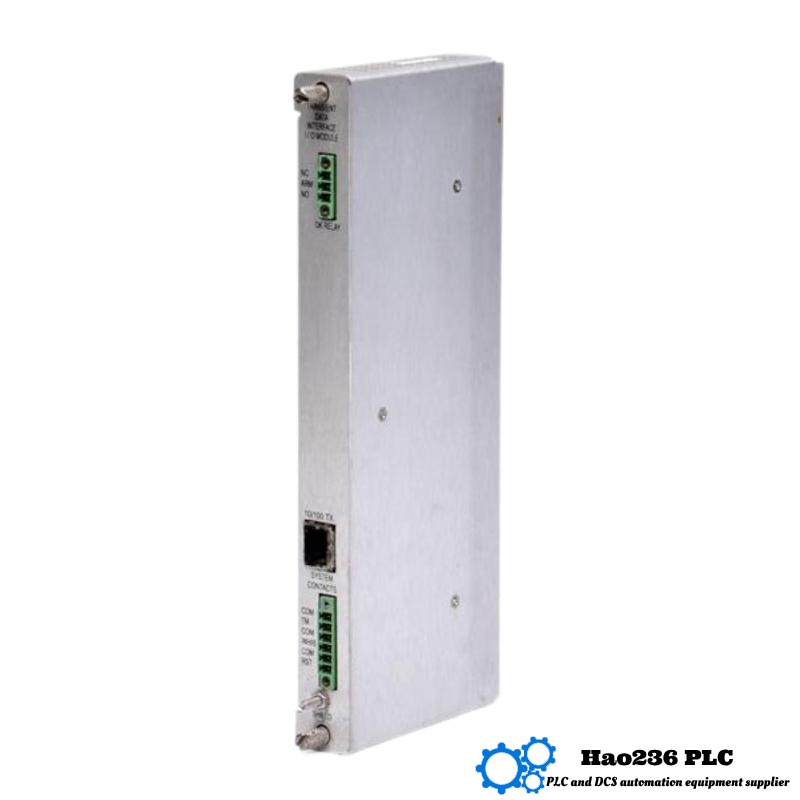

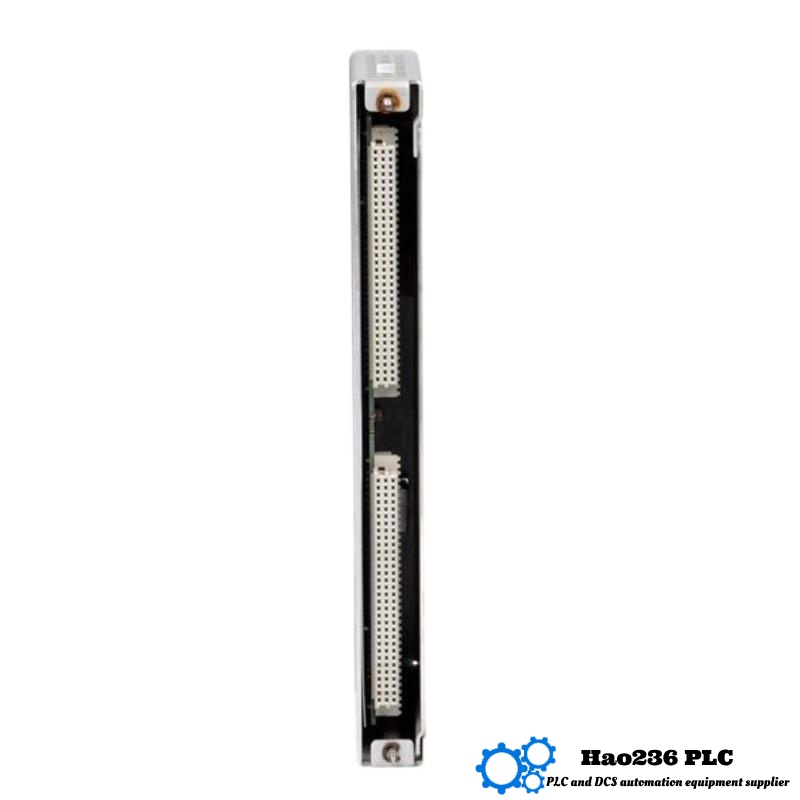

Q1: What is the primary function of the 3500/22M 146031-01 module?
A1: It functions as a System Interface Module, allowing data communication between the 3500 rack and external systems like DCS and monitoring software.

Q2: Can I use this module with any 3500 rack configuration?
A2: Yes, it is fully compatible with all Bently Nevada 3500 Series racks.

Q3: What type of communication does the module support?
A3: It supports Ethernet communication and Modbus TCP/IP protocol.

Q4: Does it support remote configuration?
A4: Yes, the module can be configured remotely via a web-based interface.

Q5: Is this module hot-swappable?
A5: No, for safety and system stability, the module should not be removed or inserted while the system is powered.

Q6: What industries typically use this module?
A6: It is widely used in oil and gas, power generation, petrochemical, mining, and industrial automation sectors.

Q7: Does the 3500/22M replace the older 3500/22 model?
A7: Yes, it is an upgraded version offering enhanced functionality and network support.

Q8: How is the module installed?
A8: It installs into a designated slot in the 3500 rack using a plug-and-play connection design.

Q9: What is the typical power consumption of this module?
A9: It consumes approximately 4.5W of power, supplied via the rack’s backplane.

Q10: What are the maintenance requirements?
A10: The module is designed for minimal maintenance; however, routine checks and firmware updates are recommended.
