❓ FAQ – Frequently Asked Questions (Q&A)

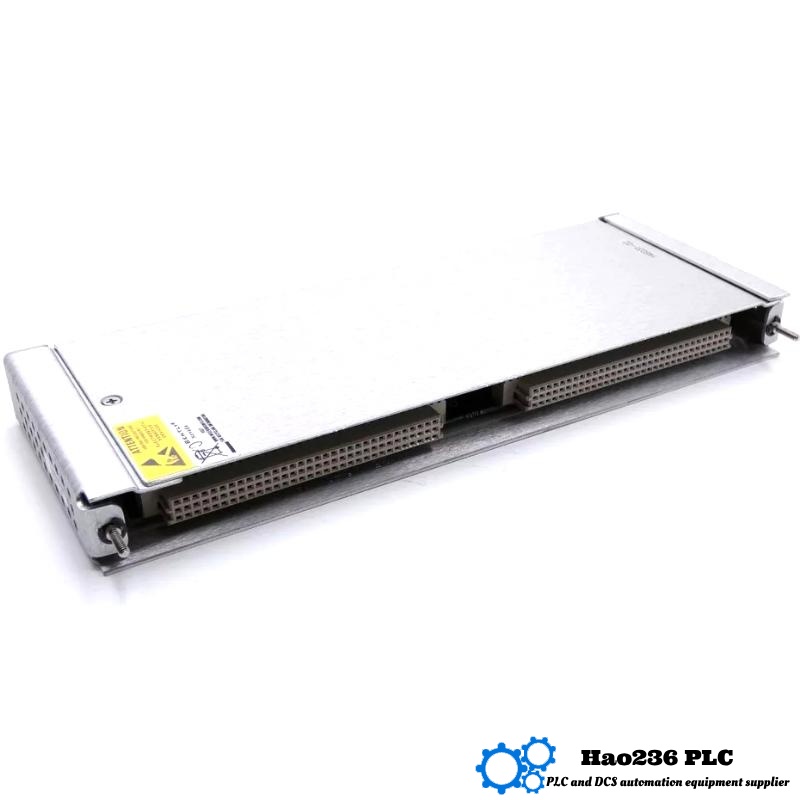

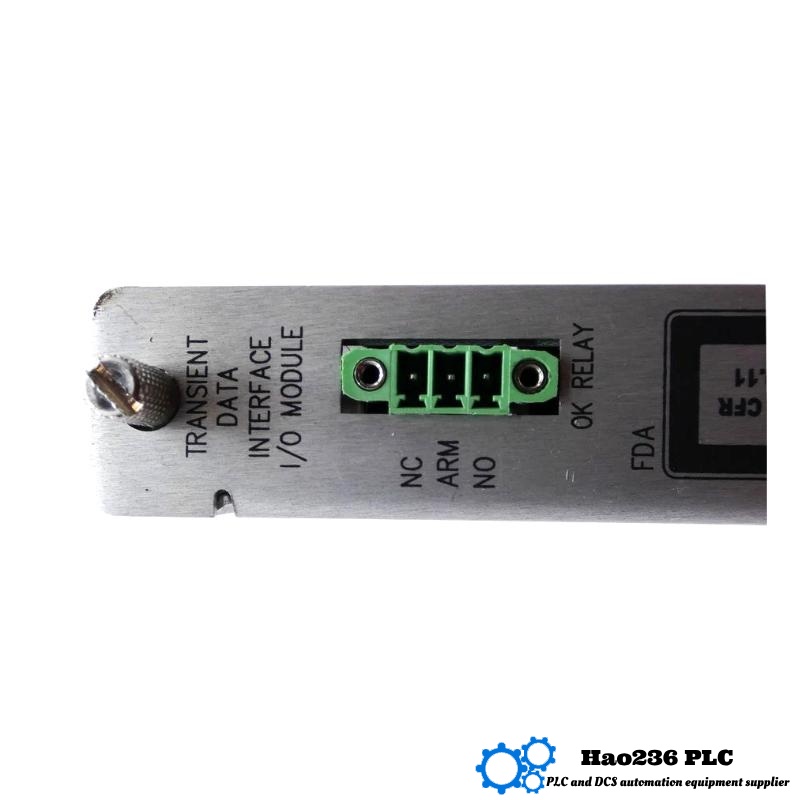

Q1: What does the 3500/22M 146031-02 module do?
A1: It acts as the system interface, transmitting data from the 3500 rack to external systems via Ethernet.

Q2: Is this module an upgrade over 146031-01?
A2: Yes. The 146031-02 version includes enhanced communication reliability and updated firmware compatibility.

Q3: Does it support Modbus TCP/IP?
A3: Yes, Modbus TCP/IP is supported for integration with various control and monitoring systems.

Q4: How is the module configured?
A4: Configuration is done via an intuitive web browser-based interface using its Ethernet port.

Q5: What are the benefits of dual Ethernet ports?
A5: Dual ports allow for network redundancy, reducing communication failure risks.

Q6: Can it be hot-swapped?
A6: No, powering down the system is required before inserting or removing the module.

Q7: What monitoring modules is it compatible with?
A7: It works with all modules in the 3500 Series, including vibration, speed, and temperature modules.

Q8: Is the module firmware upgradable?
A8: Yes, firmware can be upgraded over the network via the configuration interface.

Q9: What maintenance does it require?
A9: Minimal maintenance is needed; periodic diagnostics and firmware checks are recommended.

Q10: What kind of systems can it connect to?
A10: It can connect to DCS, SCADA, data historians, and enterprise monitoring systems.
