❓ FAQ – Frequently Asked Questions (Q&A)

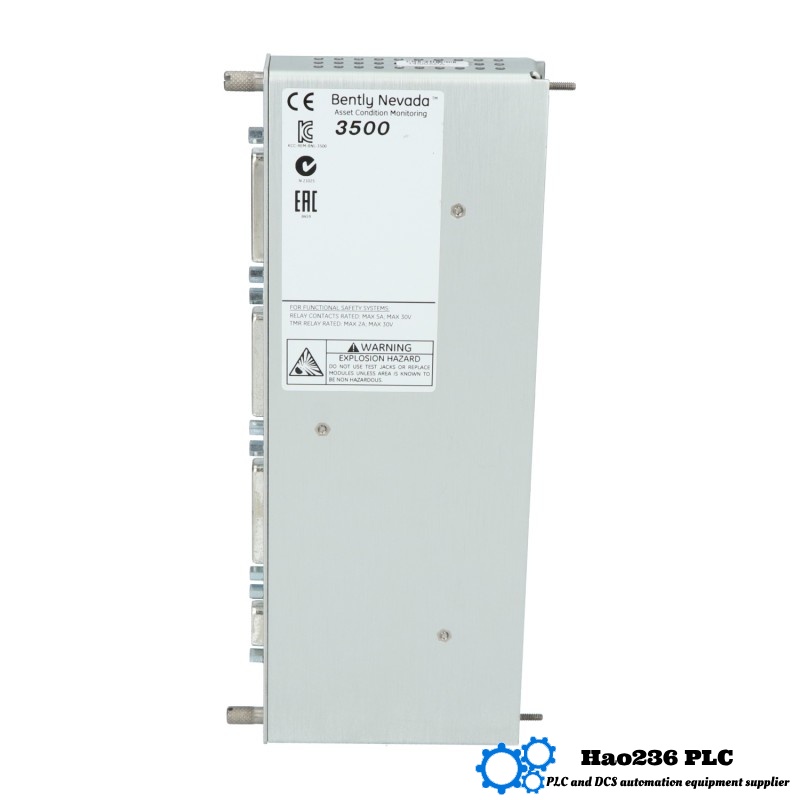

Q1: What is the function of the 3500/22M 147364-01 module?
A1: It serves as a system interface that communicates machinery condition data from the 3500 rack to external control or diagnostic systems via Ethernet.

Q2: How does this model differ from earlier 146031 models?
A2: The 147364-01 offers firmware enhancements, network redundancy, and improved diagnostics capabilities.

Q3: Does it support Modbus TCP/IP communication?
A3: Yes, the module supports Modbus TCP/IP, enabling integration with various SCADA and DCS platforms.

Q4: What’s the benefit of dual Ethernet ports?
A4: Redundant Ethernet ensures continuous communication if one network path fails, improving system uptime.

Q5: How is the module configured?
A5: Configuration is done through a standard web browser interface using the module’s Ethernet IP address.

Q6: Can it be used in high-temperature environments?
A6: Yes, it operates reliably from -30°C to +65°C and stores safely down to -40°C.

Q7: Is it compatible with older 3500 racks?
A7: Yes, it is fully backward-compatible with all standard 3500 Series rack configurations.

Q8: Does it require external power supply?
A8: No, it draws power directly from the 3500 rack’s internal power distribution.

Q9: Can firmware updates be performed remotely?
A9: Yes, the module supports over-the-network firmware updates via the web configuration interface.

Q10: What type of data does it transmit?
A10: It transmits static, dynamic, alarm, and system event data to monitoring and control systems.
