Frequently Asked Questions (FAQ)

Q1: What sensors are compatible with the 3500/54M module?
A: It works with proximity probes (eddy current) and magnetic pickups that produce signals within the specified voltage range.

Q2: How does the module respond to an overspeed event?
A: It sends an alarm or trip signal to shut down the machinery or alert operators depending on system configuration.

Q3: Can the alarm setpoint be changed in the field?
A: Yes, the alarm setpoint is adjustable locally on the module.

Q4: What kind of redundancy does this module support?
A: It supports 2-of-2 and 2-of-3 voting schemes for highly reliable overspeed detection.

Q5: Is remote alarm reset possible?
A: Yes, it can be reset both locally and remotely.

Q6: What environmental conditions can the module operate in?
A: It operates reliably in -30°C to +65°C and up to 95% non-condensing humidity.

Q7: Does the module provide a buffered transducer output?
A: Yes, the 3500/54M module provides buffered outputs, which allow continuous monitoring of the transducer signal without affecting the primary measurement.

Q8: What industry standards does the 3500/54M comply with?
A: This module meets the stringent requirements of API 670 and API 612 standards for overspeed protection of rotating machinery.

Q9: What are the physical dimensions and weight of this module?
A: The module measures approximately 263 mm (length) × 58 mm (width) × 28 mm (height) and weighs around 1.5 kg.

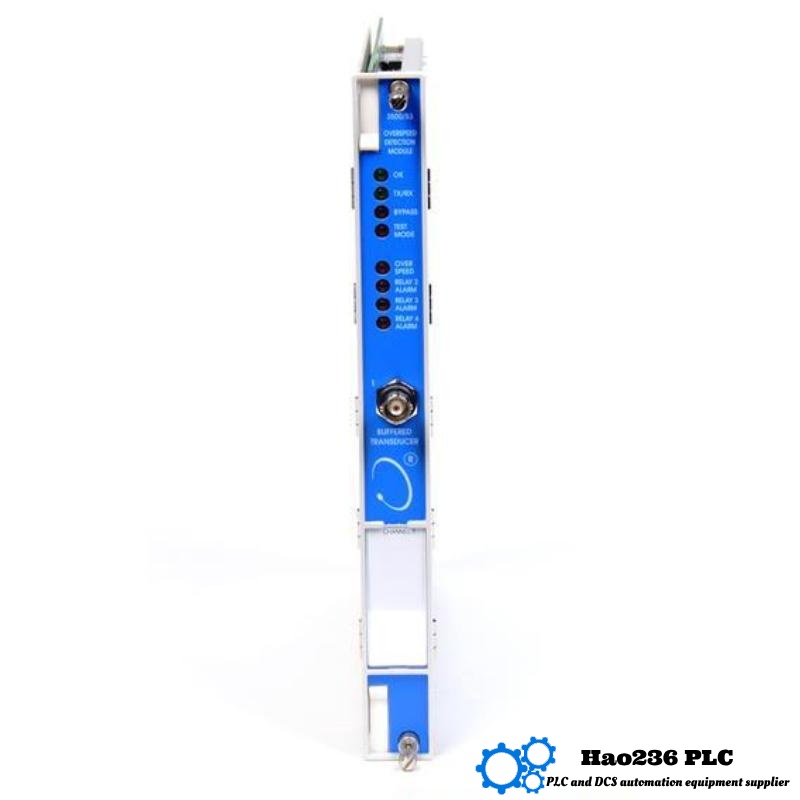

Q10: What information do the front panel LEDs provide?
A: The front panel LEDs indicate module health status, alarm/trip conditions, communication status, bypass mode, and test mode, enabling quick visual diagnostics.
