❓ Frequently Asked Questions (FAQ)

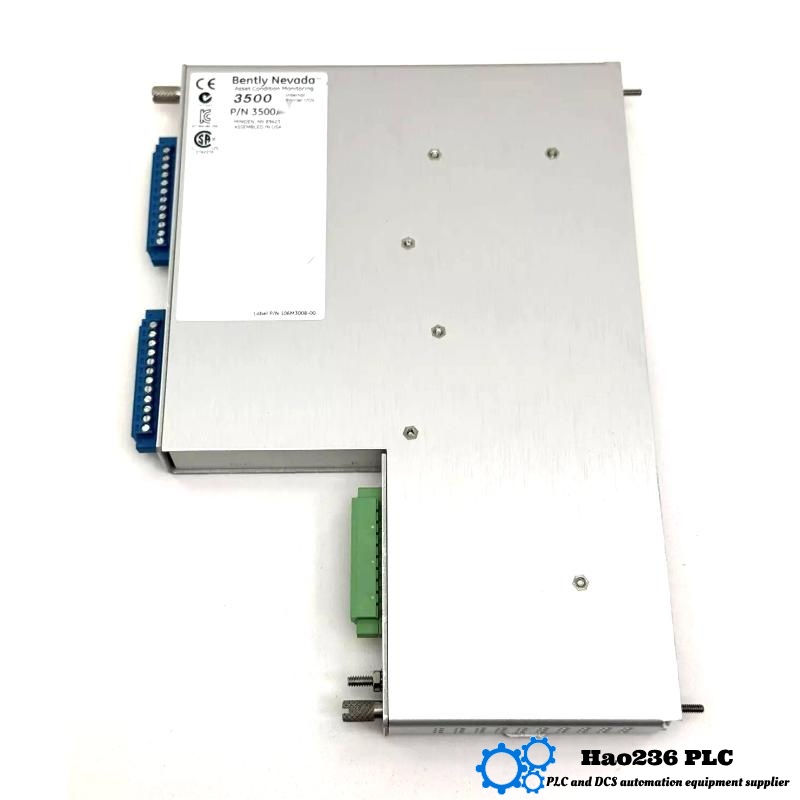

Q1: What does the 3500/72M 135489-01 I/O module do?
A1: It provides the interface for sensor wiring, electrical isolation, and signal transmission between field sensors and the 3500/72M Rod Position Monitor.

Q2: What kind of sensors can be used with this module?
A2: It supports proximity probes and rod drop sensors used to measure position and motion in reciprocating compressors.

Q3: What are internal barriers and why are they important?
A3: Internal barriers limit electrical energy going to hazardous-area sensors, making the system intrinsically safe and reducing explosion risks.

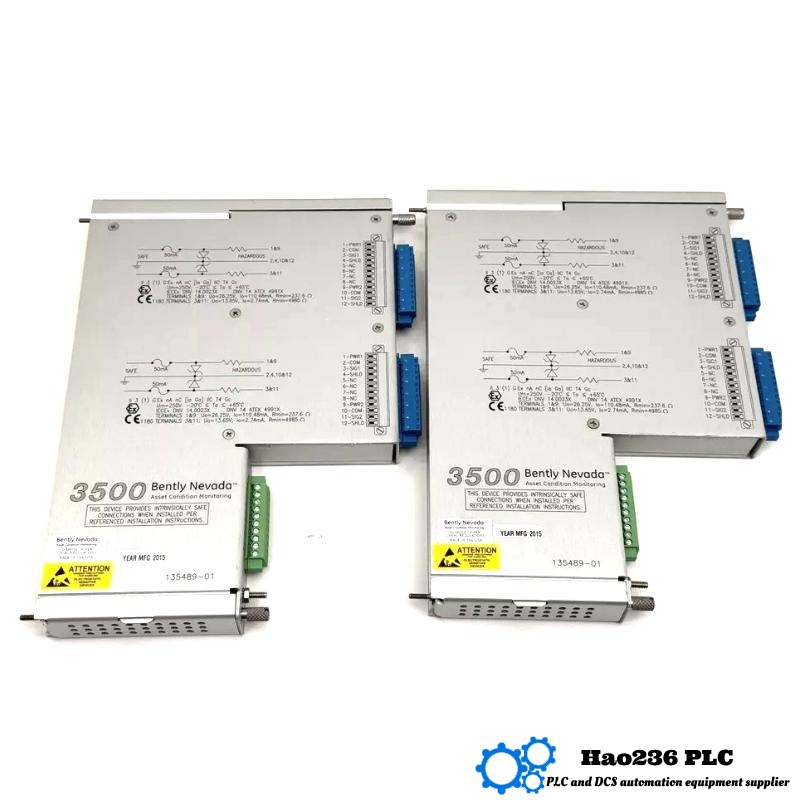

Q4: What is the difference between barrier and non-barrier versions?
A4: The barrier version provides intrinsic safety and is slightly deeper and heavier, while the non-barrier version is more compact but lacks hazardous area protection.

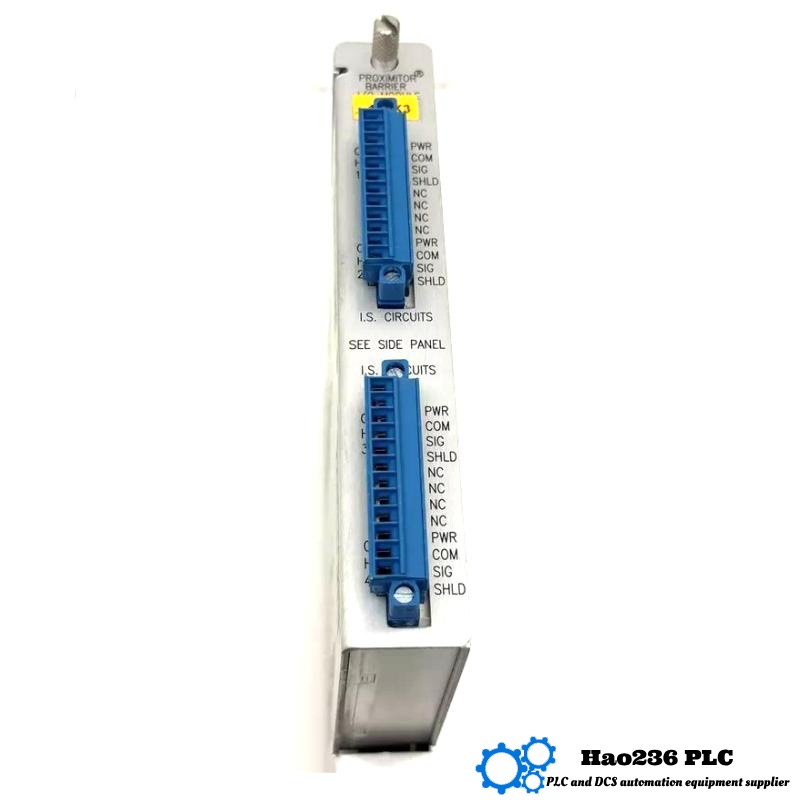

Q5: Can I install this module without using external terminal blocks?
A5: Yes, this module features internal terminations, so no external terminal strips are needed for wiring.

Q6: How does it pair with the front monitoring module?
A6: It installs directly behind the 3500/72M Rod Position Monitor in the rack and handles the I/O connections and signal routing.

Q7: Is this module suitable for outdoor or industrial environments?
A7: Yes, it supports a wide operating temperature and humidity range, making it ideal for harsh industrial settings.

Q8: Can I use this I/O module with other front-end modules?
A8: It is specifically designed for use with the 3500/72M front module. Using it with other types may not be compatible.

Q9: What happens if the module fails?
A9: Signal transmission to the monitoring system may be interrupted, and the monitoring module could raise alarms or lose input readings.

Q10: How do I maintain this module?
A10: Periodic inspection of wiring, checking terminations, verifying signal integrity, and ensuring environmental conditions remain within limits is recommended.
