❓ Frequently Asked Questions (FAQ)

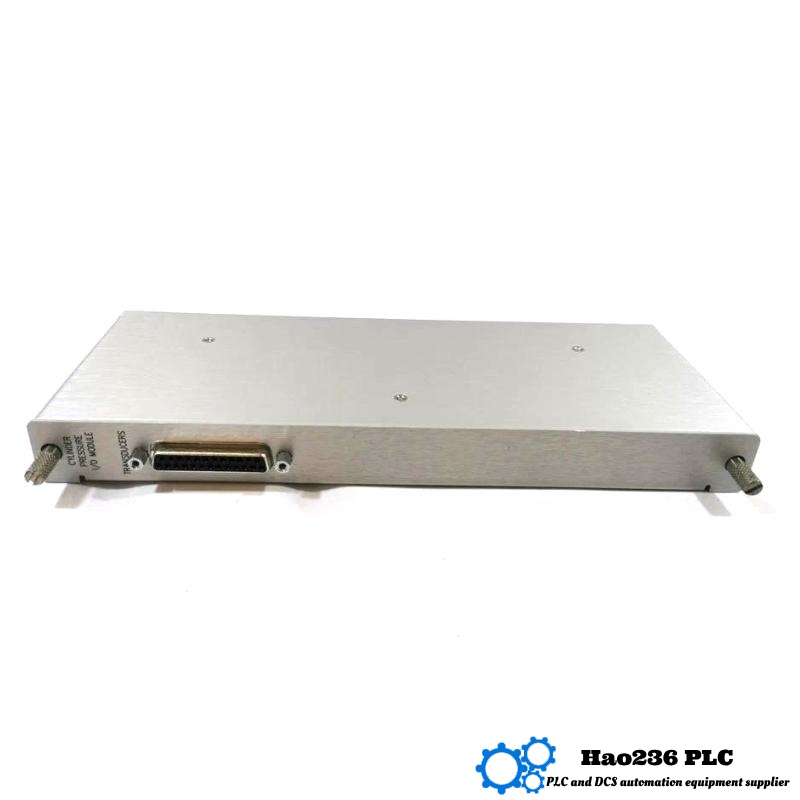

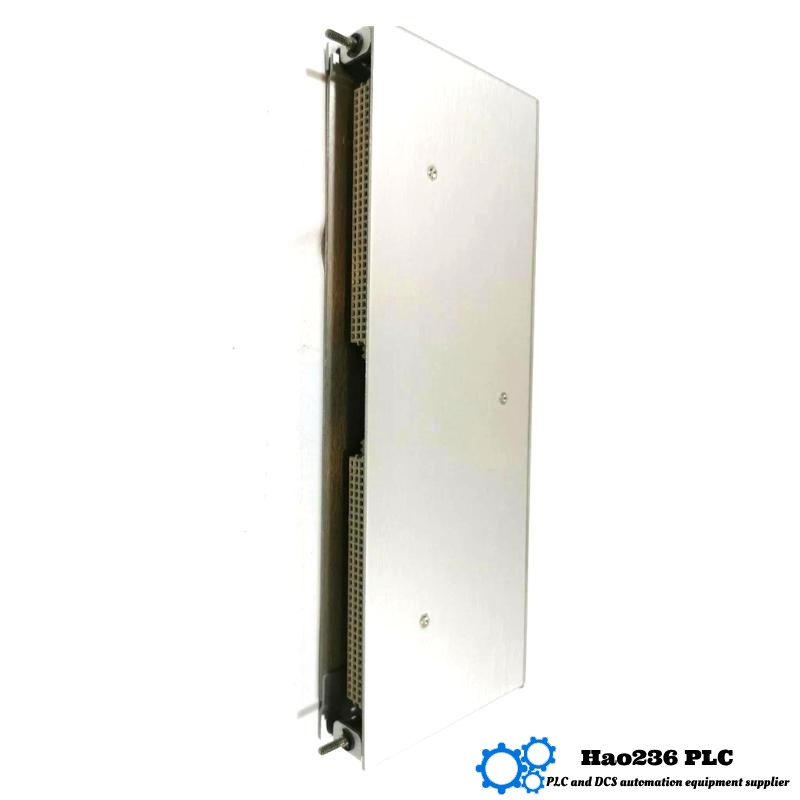

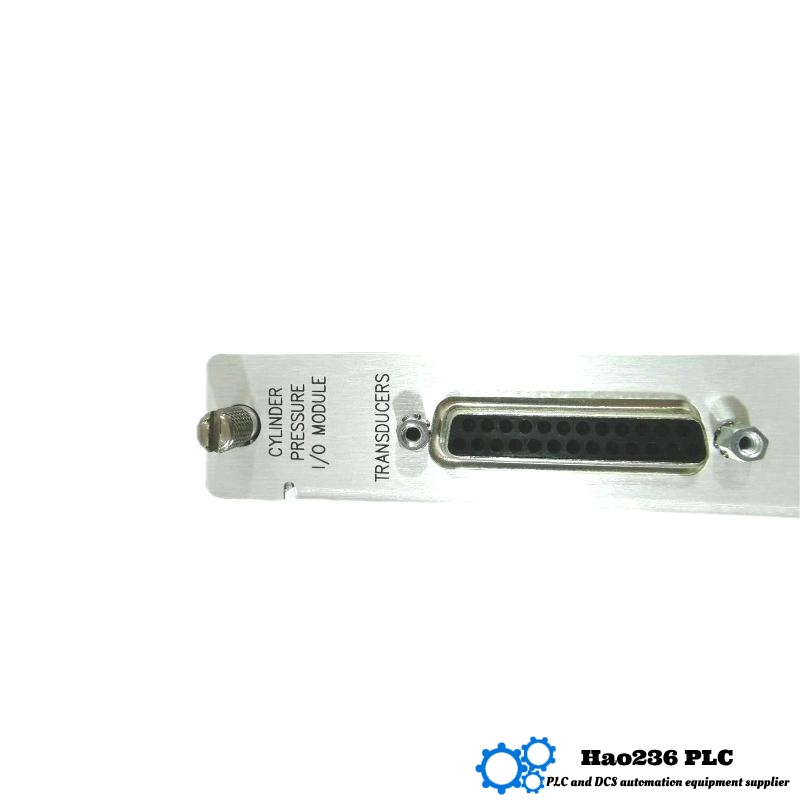

Q1: What is the main purpose of the 3500/77M 143737-01 module?
A1: It is used for dynamic pressure monitoring in machinery, helping detect pulsations, instabilities, or surges in real time.

Q2: How many channels does this module support?
A2: It supports 2 independent input channels, allowing dual-point monitoring.

Q3: What kind of sensors are compatible with it?
A3: It works with charge-type and voltage-type dynamic pressure transducers.

Q4: Can it be installed in any 3500 rack system?
A4: Yes, it is fully compatible with standard 3500 racks and I/O configurations.

Q5: Does it have real-time alarming capability?
A5: Yes, it provides real-time processing and individual OK, Alert, and Danger alarms per channel.

Q6: What is the operating temperature range of this module?
A6: It operates between -30°C and +65°C, with storage down to -40°C.

Q7: Can the data be exported or integrated with other systems?
A7: Yes, buffered outputs and optional 4–20 mA support allow integration with control systems or diagnostic tools.

Q8: What kind of diagnostics does the module offer?
A8: It provides self-checks, sensor health monitoring, and front-panel indicators for fault status.

Q9: What industries benefit most from using this module?
A9: Oil & gas, power generation, chemical processing, and industries using high-speed rotating or reciprocating machinery.

Q10: What makes this module different from vibration modules?
A10: Unlike vibration modules, this unit focuses on dynamic pressure—detecting pressure waves, pulsations, and combustion instabilities instead of shaft displacement or velocity. This makes it ideal for detecting fluid or gas-related issues in machinery rather than purely mechanical imbalances.
