Frequently Asked Questions (FAQ)

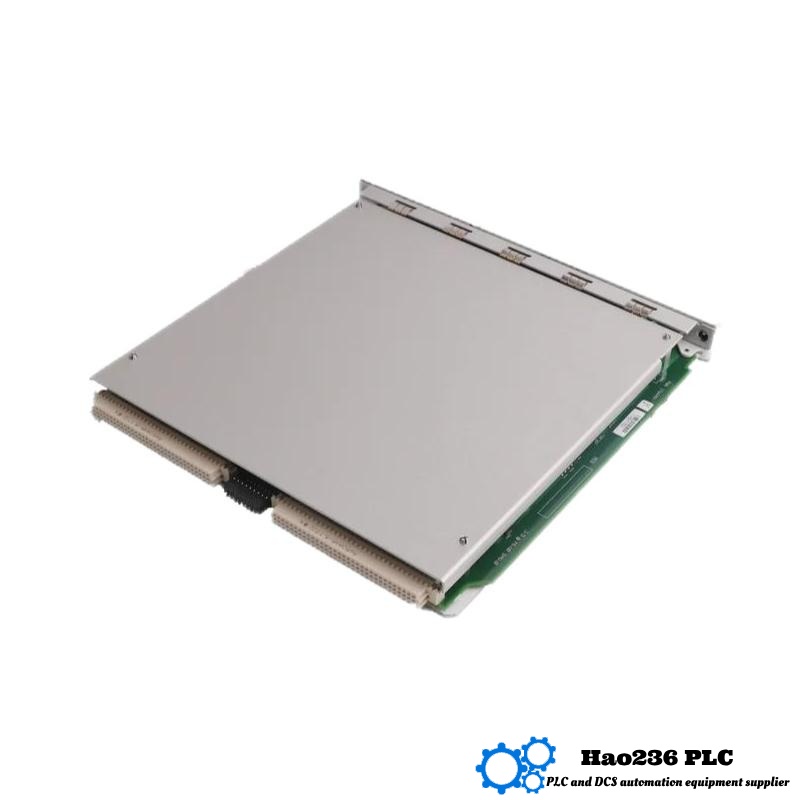

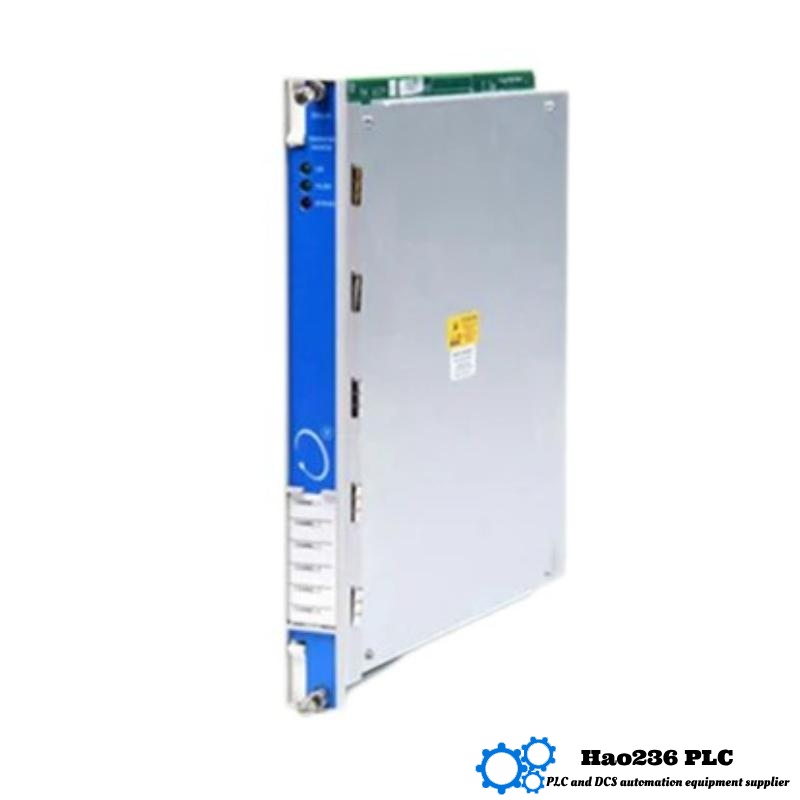

Q1: What is the primary function of the 3500/90 125728-01 module?
A1: Its main function is to act as a communication gateway between the 3500 Monitoring System and external host systems, enabling real-time condition monitoring data transmission.

Q2: Which communication protocols are supported by this module?
A2: It supports Ethernet, Modbus RTU, and Modbus TCP/IP communication protocols.

Q3: Is this module compatible with legacy Bently Nevada systems?
A3: It is specifically designed for the 3500 Series and may not be directly compatible with older 3300 or 7200 Series systems.

Q4: Can this module be hot-swapped during operation?
A4: Yes, it supports hot-swapping without shutting down the entire rack, ensuring operational continuity.

Q5: What kind of data does it transmit to host systems?
A5: It transmits machinery health data such as vibration levels, speed, temperature, and system diagnostics.

Q6: Is the 3500/90 module suitable for use in hazardous environments?
A6: Yes, it has certifications including ATEX and IECEx, making it suitable for hazardous locations.

Q7: How is the module powered?
A7: It draws power directly from the 3500 rack’s backplane; no external power supply is needed.

Q8: Does the module require configuration software?
A8: Yes, it is configured using the 3500 System Configuration Software, typically via a connected TDI module.

Q9: How many channels of data can the 3500/90 handle?
A9: It can access data from all modules installed in the 3500 rack, supporting up to 28 channels.

Q10: What is the typical installation position for this module in a rack?
A10: It is usually installed in one of the communication module slots of the 3500 rack, typically near the TDI.
