FAQ (Frequently Asked Questions)

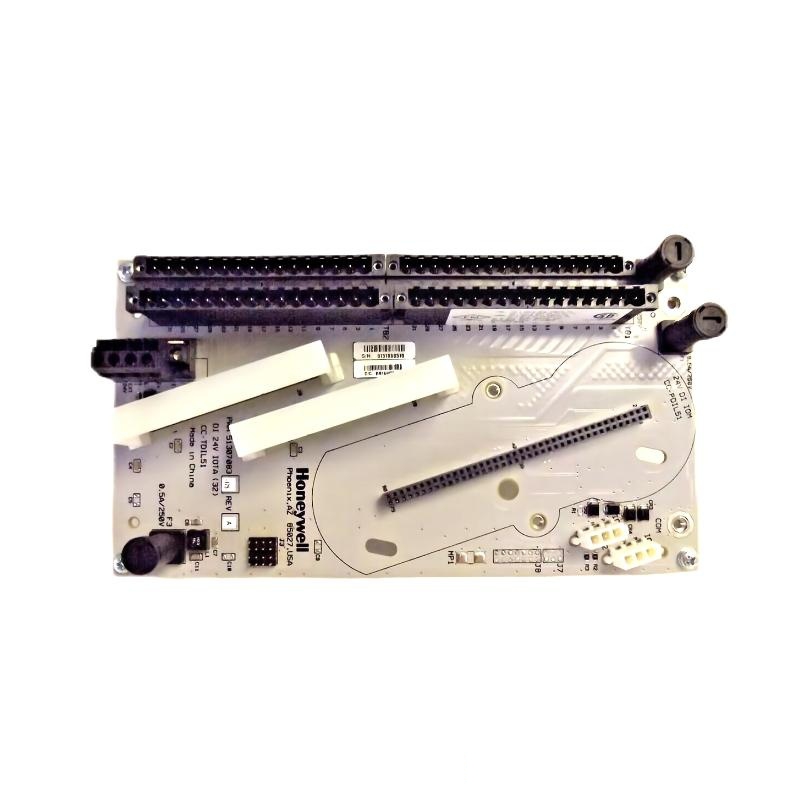

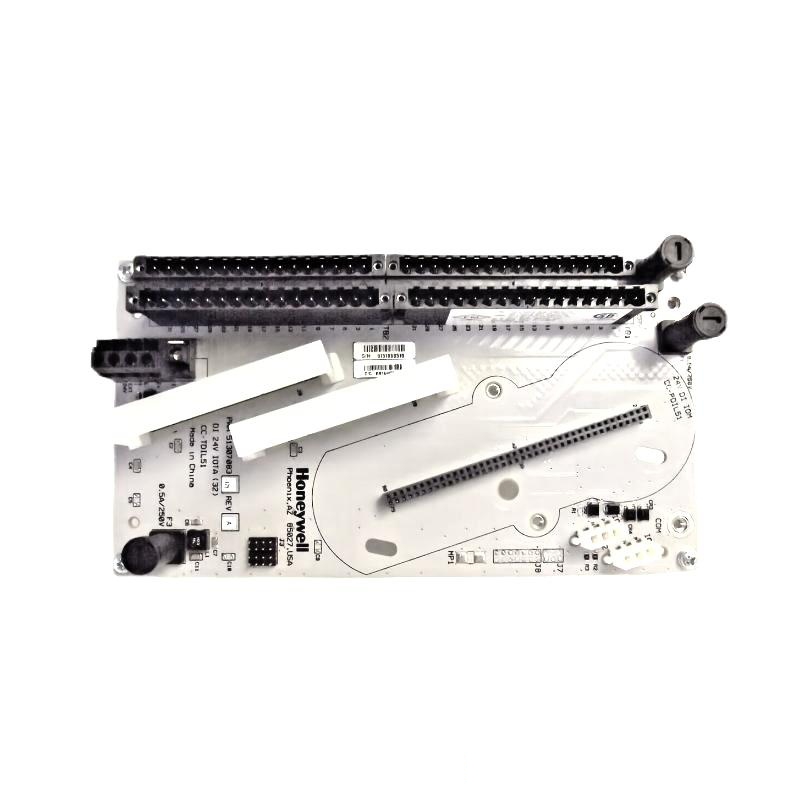

Q1: What is the primary function of the CC-TDIL51 Digital Input Module?
A1: The module is used to receive digital input signals from field devices such as sensors, switches, and proximity detectors, and send them to the control system for processing.

Q2: How many input channels are available in the CC-TDIL51?
A2: The module has 8 input channels, providing reliable monitoring for a wide range of digital devices.

Q3: What is the voltage supply required for the CC-TDIL51 module?
A3: The module operates with a 24 V DC power supply.

Q4: What is the protection rating of the CC-TDIL51?
A4: The module has an IP20 protection rating, meaning it is protected from solid objects larger than 12mm but is not waterproof.

Q5: Can the CC-TDIL51 module be mounted on a DIN rail?
A5: Yes, the module is designed for easy installation on a standard DIN rail.

Q6: What is the temperature range in which the CC-TDIL51 can operate?
A6: The module can function in temperatures ranging from -20°C to 60°C, making it suitable for a variety of industrial environments.

Q7: What input types are supported by the CC-TDIL51 module?
A7: The module supports both sourcing and sinking input types, allowing it to work with a variety of field devices.

Q8: How do I configure the CC-TDIL51 module?
A8: Configuration can be done easily through Honeywell’s control systems, following the detailed setup instructions provided in the product manual.

Q9: What is the weight of the CC-TDIL51 module?
A9: The module weighs 0.5 kg, making it lightweight and easy to handle.

Q10: Can the CC-TDIL51 be used in hazardous or extreme conditions?
A10: Yes, the module is designed for high durability and can operate in harsh industrial environments within the specified temperature and protection range.
