Frequently Asked Questions (FAQs)

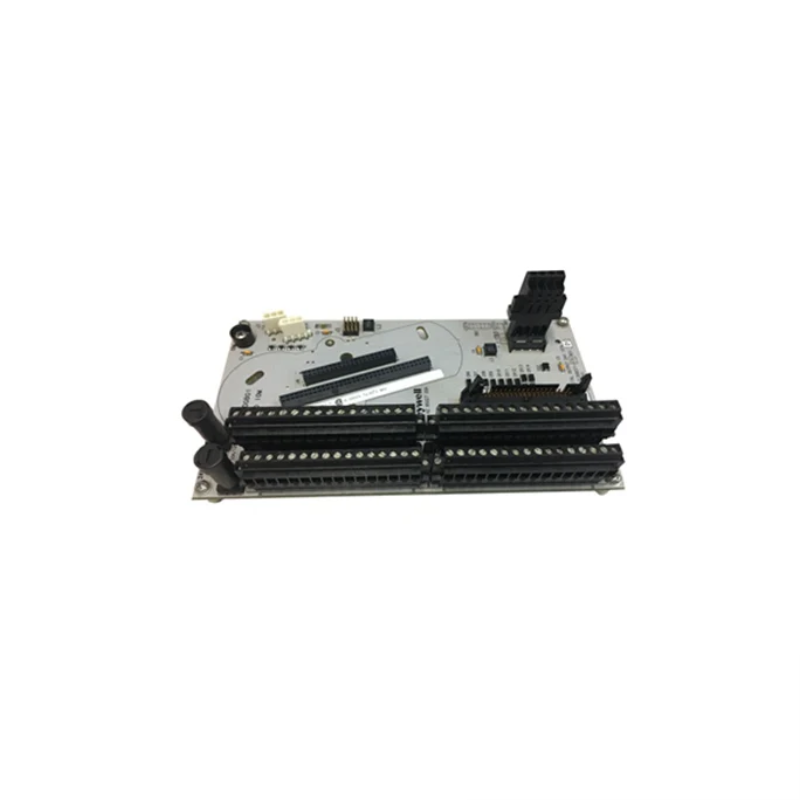

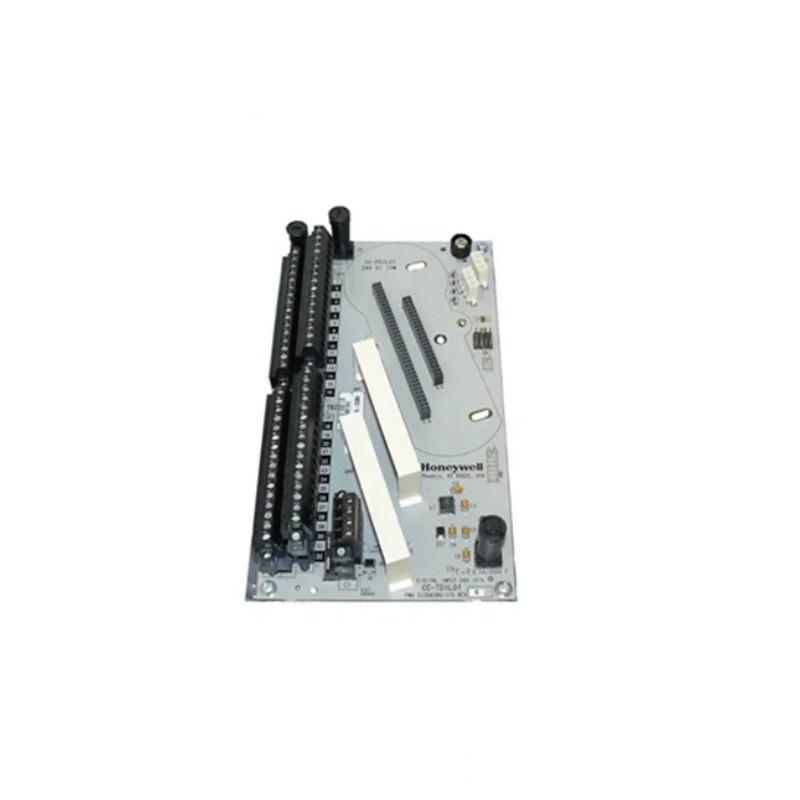

Q1: What is the main function of the Honeywell CC-TDOR01?
A1: The CC-TDOR01 is a digital output module that converts control signals into binary outputs, used to control devices such as actuators, relays, and valves in industrial applications.

Q2: How many output channels does the CC-TDOR01 have?
A2: The CC-TDOR01 has 8 output channels, allowing it to control multiple devices simultaneously.

Q3: What is the power supply requirement for this module?
A3: The module operates on 24V DC ±10%, which is a standard voltage for industrial automation systems.

Q4: What is the temperature range for the CC-TDOR01?
A4: The module operates within a temperature range of -10°C to +60°C, making it suitable for most industrial environments.

Q5: Is this module compatible with Honeywell’s C200 and C300 controllers?
A5: Yes, the CC-TDOR01 integrates seamlessly with Honeywell’s C200 and C300 series controllers, ensuring smooth communication and control.

Q6: How is the CC-TDOR01 mounted?
A6: The module is designed for DIN rail mounting, which makes it easy to install in control cabinets or other industrial enclosures.

Q7: What is the protection rating of the CC-TDOR01?
A7: The module has an IP20 protection rating, meaning it is protected from dust and physical contact but is not waterproof.

Q8: Can the CC-TDOR01 module be used outdoors?
A8: The module is designed for indoor use in environments with a moderate temperature range. For outdoor use, it should be placed in an appropriate enclosure to protect it from environmental factors.

Q9: What communication protocols does the CC-TDOR01 support?
A9: The module supports communication protocols like Modbus RTU and HART, enabling flexible integration with other devices and systems.

Q10: How do I integrate this module with existing systems?
A10: The CC-TDOR01 can be easily integrated into your system by connecting the appropriate devices and wiring it to your Honeywell C200 or C300 controllers using standard communication protocols.
