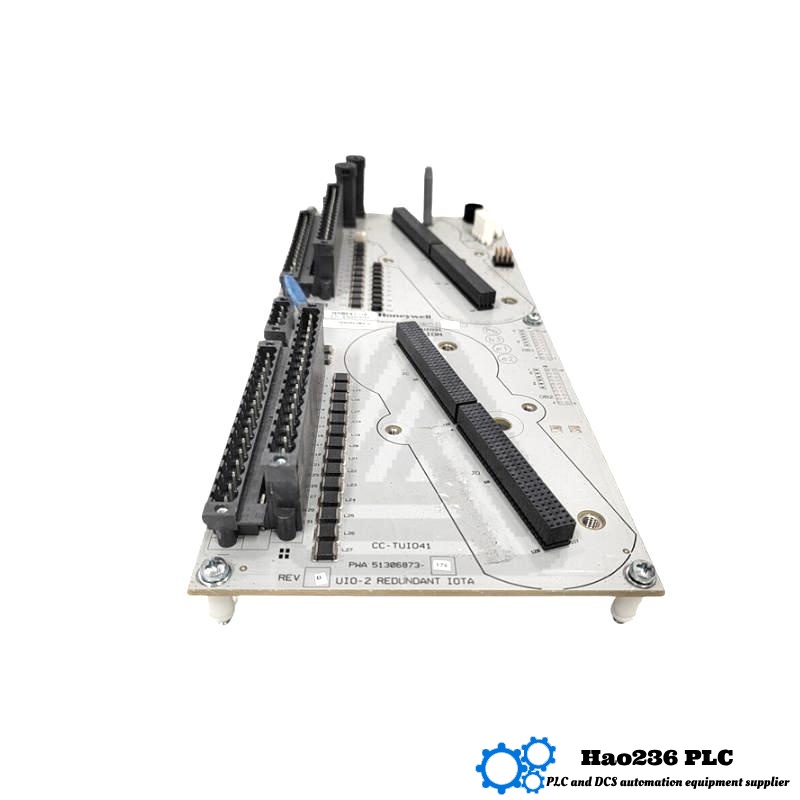

❓ Product FAQ – Honeywell CC-TUIO01

Q1: What types of signals can the CC-TUIO01 handle?
A1: It supports analog voltage, analog current, and digital inputs with digital outputs.

Q2: How many input and output channels does this module have?
A2: It has 8 configurable input channels and 8 digital output channels.

Q3: What is the accuracy of the analog inputs?
A3: The accuracy is ±0.2% of full scale.

Q4: Does the module offer isolation?
A4: Yes, it provides channel-to-channel and channel-to-ground isolation.

Q5: What are the typical analog input ranges?
A5: Input ranges include 0-20 mA, 4-20 mA, 0-10 V, and ±10 V.

Q6: What power supply voltage is required?
A6: The module requires 24 V DC ±10%.

Q7: Can the CC-TUIO01 operate in high humidity environments?
A7: Yes, it supports 5% to 95% non-condensing humidity.

Q8: Is this module compatible with the Experion PKS system?
A8: Yes, it is designed for full compatibility.

Q9: What are the physical dimensions and weight of the module?
A9: Dimensions are 127 mm x 25 mm x 200 mm; weight is 0.48 kg.

Q10: How is the CC-TUIO01 mounted?
A10: It is mounted on the Series 8 rack chassis.
