9. FAQs (QA Format)

Here are ten practical FAQs, with direct answers. Each Q/A ends with a blank line.

Q1: What is the maximum continuous current per channel?
A1: Each channel can supply up to 2 A continuous at 24 V DC.

Q2: What is the peak (surge) current capability per channel?
A2: Up to 4 A for short transient loads on a per‑channel basis.

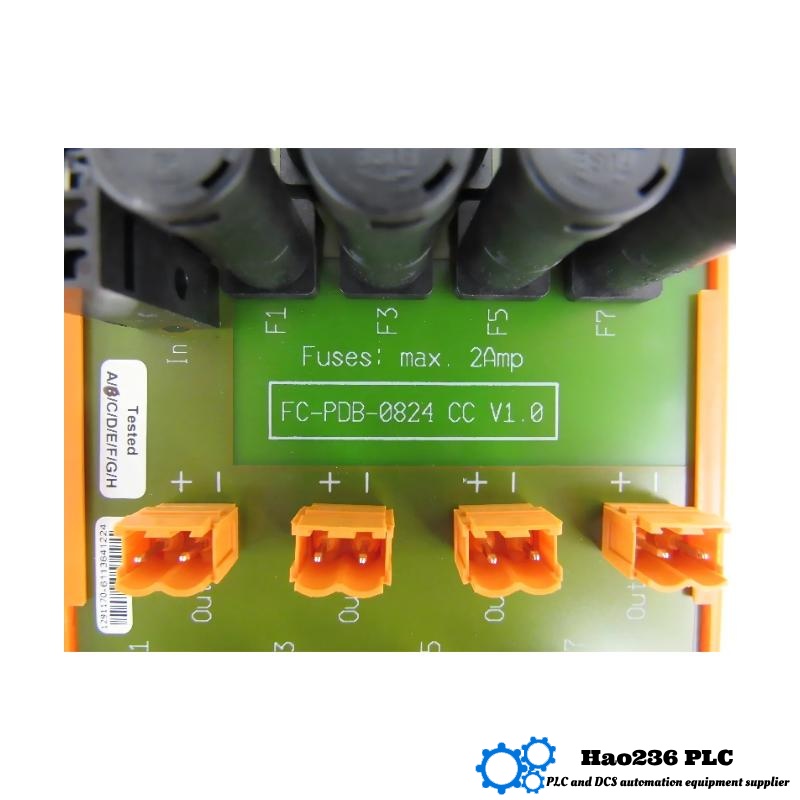

Q3: What protection is built into FC‑PDB‑0824?
A3: Protection includes fuse protection per channel (slow acting 2 A fuses), overload protection and short‑circuit protection.

Q4: What are the physical dimensions and weight?
A4: Typical module size is 120 × 80 × 35 mm, weight approximately 0.30 kg.

Q5: What is the operating temperature range?
A5: From roughly −20 °C up to +60 °C.

Q6: Can this board be mounted on standard DIN rail?
A6: Yes — it is designed to be DIN rail mountable (compatible with TS32 / TS35 × 7.5 rails in many versions).

Q7: What is the expected ripple/noise on the 24 VDC output?
A7: Less than around 50 mVpp (peak‑to‑peak) under normal load conditions.

Q8: What certificate or approvals does it have?
A8: Certified for CE; in many listings also UL, TUV, and CSA pending or recognized.

Q9: What kind of connectors does it use for inputs and outputs?
A9: Input via a 2‑pole keyed header; outputs via 2‑pole fused sockets or terminal blocks (example: Weidmuller style connectors).

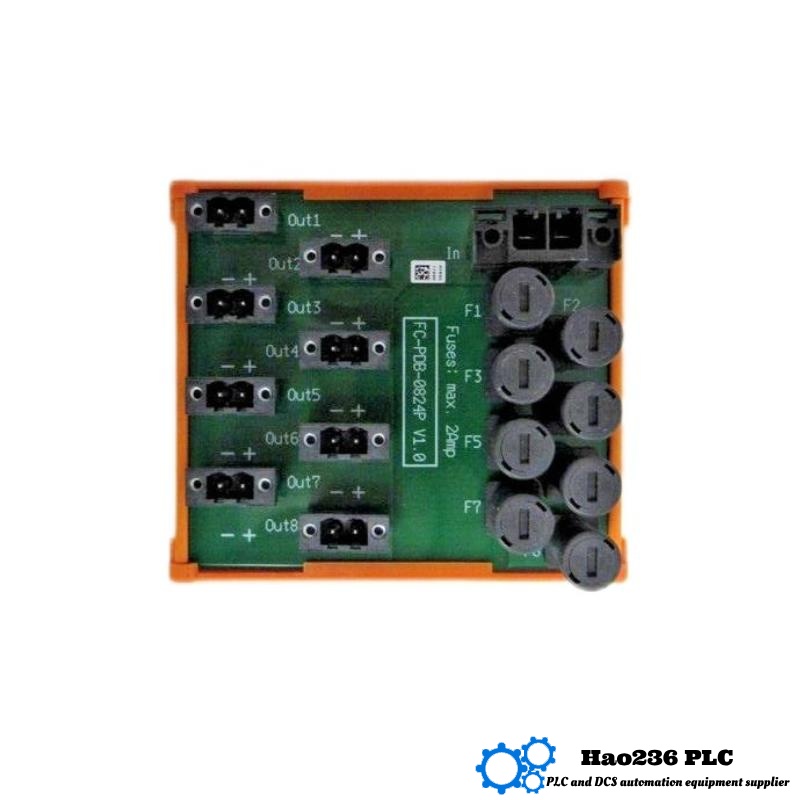

Q10: Is there any variation/version of FC‑PDB‑0824 with enhanced specs?
A10: Yes — the FC‑PDB‑0824P variant appears in sources with similar channel count but larger size or heavier build (≈0.93 kg), possibly with stronger mechanical or environmental protection.
