9. FAQs (QA Format)

Q1: What signal types can this module accept?
A1: It accepts standard analog voltage inputs, typically in the ±10 V or 0–10 V range, depending on the configuration.

Q2: Can this module be used in outdoor installations?
A2: It is rated IP20 and designed for cabinet use. For outdoor use, it must be installed within a weatherproof enclosure.

Q3: How many sensors can I connect?
A3: The module supports 7 analog input channels, allowing connection of 7 individual analog sensors.

Q4: What is the typical use case for this module?
A4: It is primarily used to collect sensor data in industrial process control systems such as DCS or PLC setups.

Q5: Does the module include signal isolation?
A5: Signal isolation depends on the internal design, but analog modules often include input isolation. It is recommended to confirm in your system manual.

Q6: Is this module hot-swappable?
A6: It depends on the backplane and controller. In most systems, hot-swapping analog modules is not recommended without precautions.

Q7: What certifications does it meet?
A7: The module meets CE, UL, CSA, and TUV certifications for industrial use.

Q8: What happens if the input voltage exceeds the limit?
A8: Excess input voltage can damage the input circuitry. Protection circuits are typically limited. External protection is advised.

Q9: How do I wire it in a control cabinet?

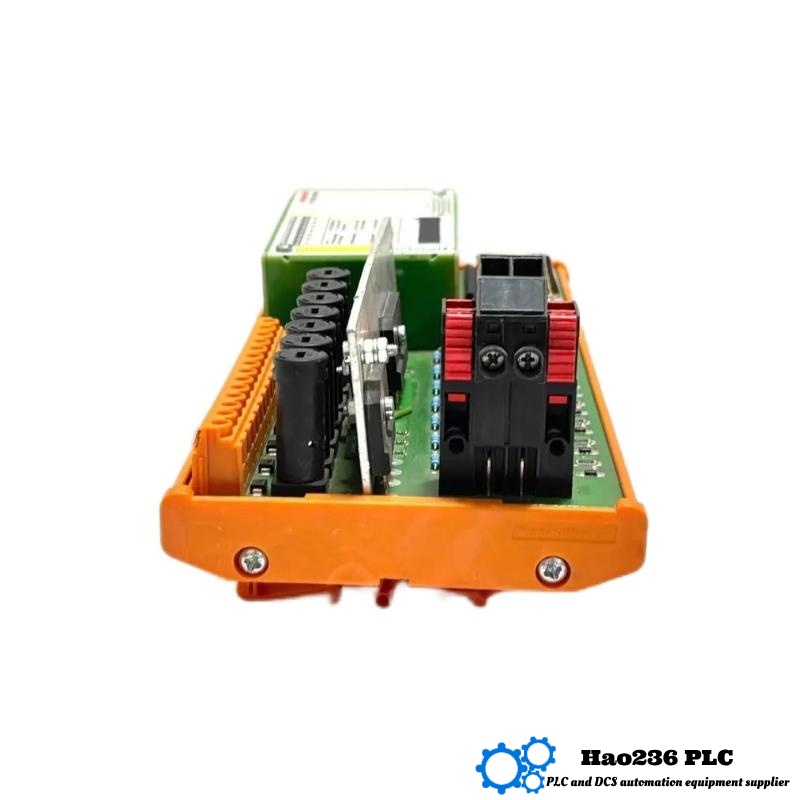

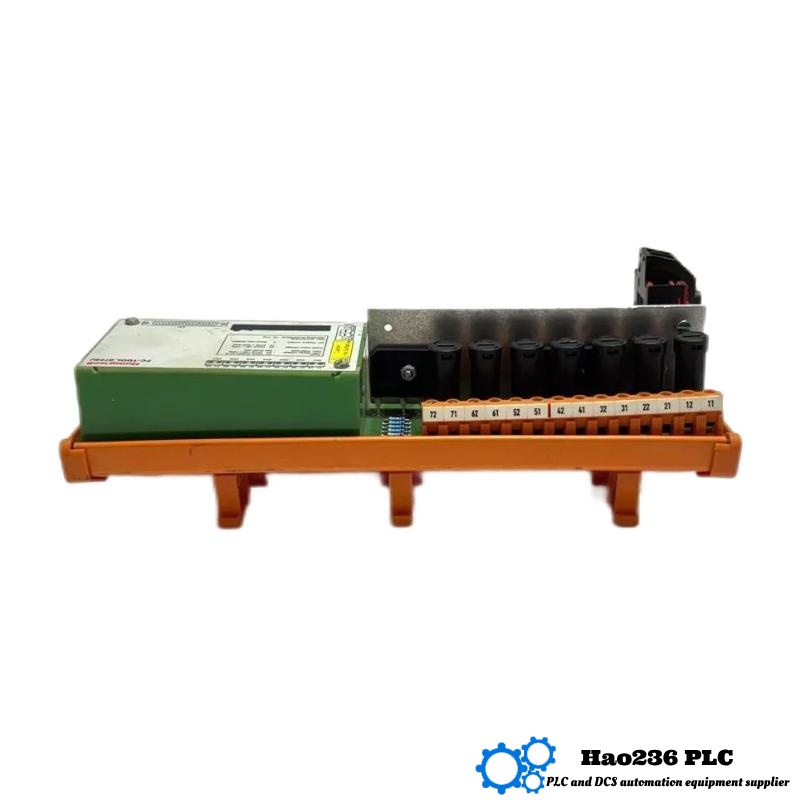

A9: It uses screw terminals or FTA blocks. Each channel is labeled and documented for easy wiring.

Q10: How much space should I allocate for mounting?
A10: The module’s footprint is approximately 240 mm by 108 mm with a height of 85 mm. Allow some clearance for wiring.
