❓ FAQ (Frequently Asked Questions, QA Format)

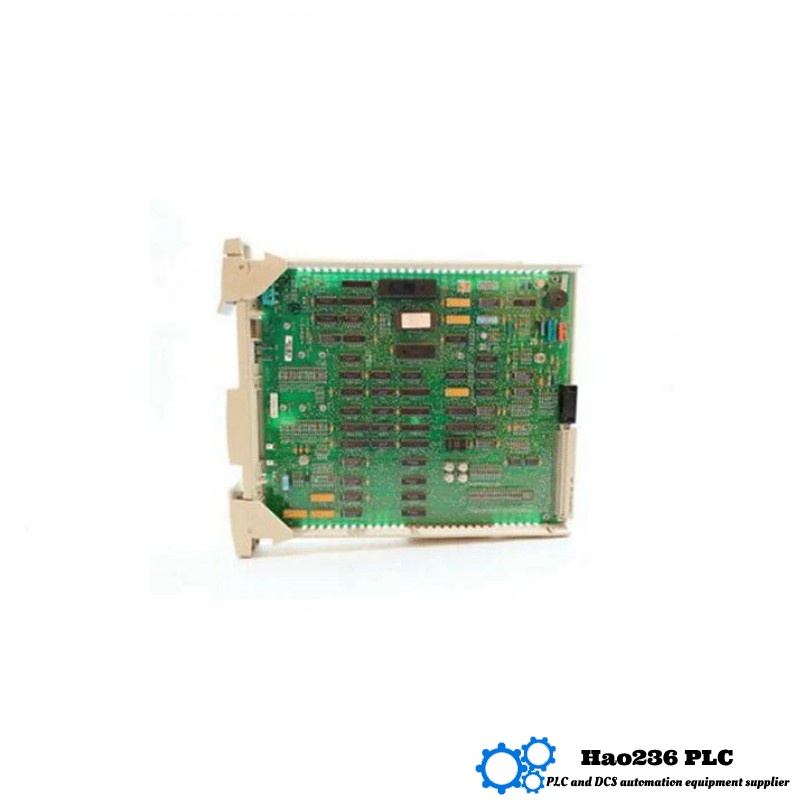

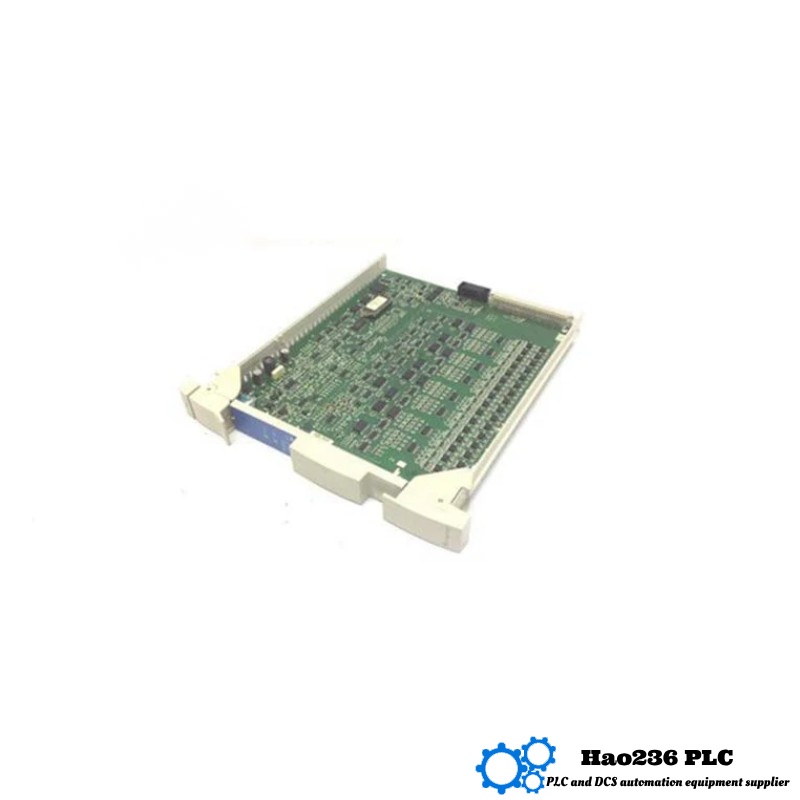

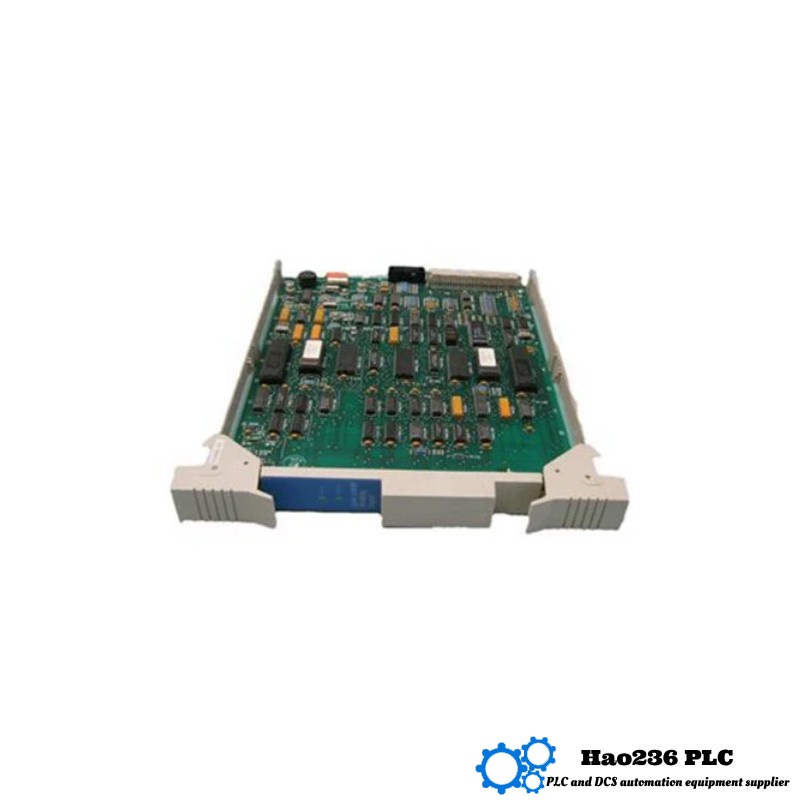

Q1: What is the main purpose of the FC‑TRO‑0824?
A1: It serves as a dual-channel transmitter and relay output interface, converting sensor signals and triggering relay actions or generating analog outputs for control systems.

Q2: How many relays are supported?
A2: It provides four Form C (NO/NC) relay channels.

Q3: Can it also output analog signals while driving relays?
A3: Yes, it supports an isolated analog output (4–20 mA) in parallel with relay outputs.

Q4: What input signal types are accepted?
A4: It accepts standard industrial inputs such as 4–20 mA, 0–20 mA, or 0–10 V.

Q5: What is the isolation voltage?
A5: It provides 1500 V DC isolation among input, output, and power circuits.

Q6: What are the dimensions and weight?
A6: Dimensions are 140 mm × 100 mm × 55 mm, and it weighs approximately 0.55 kg.

Q7: What is the operating temperature range?
A7: It can operate from –20°C to +65°C reliably.

Q8: How fast is the response time?
A8: The response time (input to relay/action) is less than 250 ms.

Q9: Are there diagnostic features?
A9: Yes, it includes LED indicators for each input and relay state, plus a fault alarm indicator.

Q10: Is it easy to mount in a control cabinet?
A10: Yes, it is designed for DIN rail mounting (35 mm standard) and modular replacement.
