FAQ (Frequently Asked Questions)

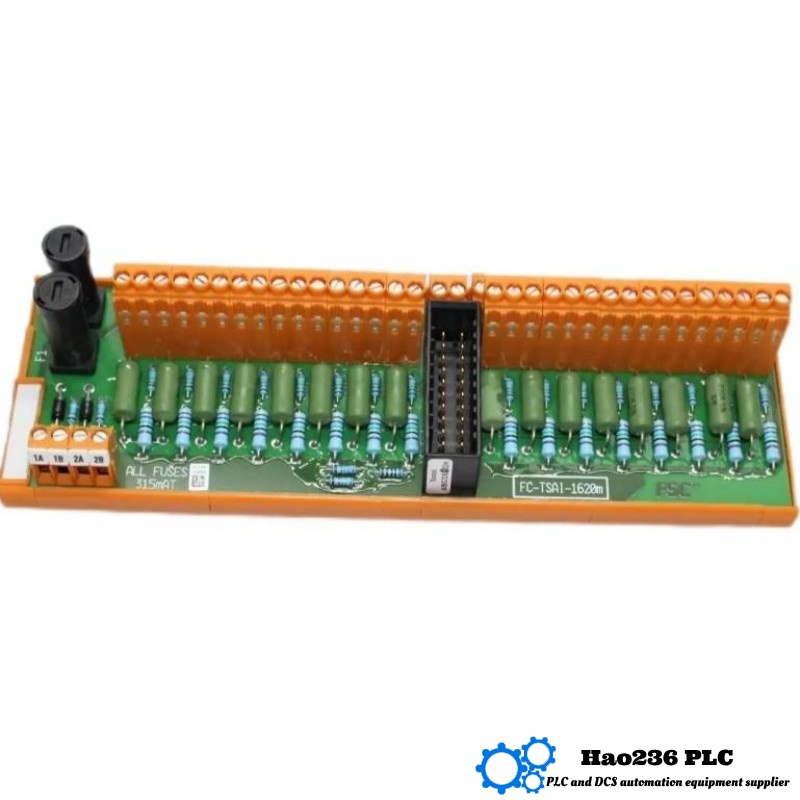

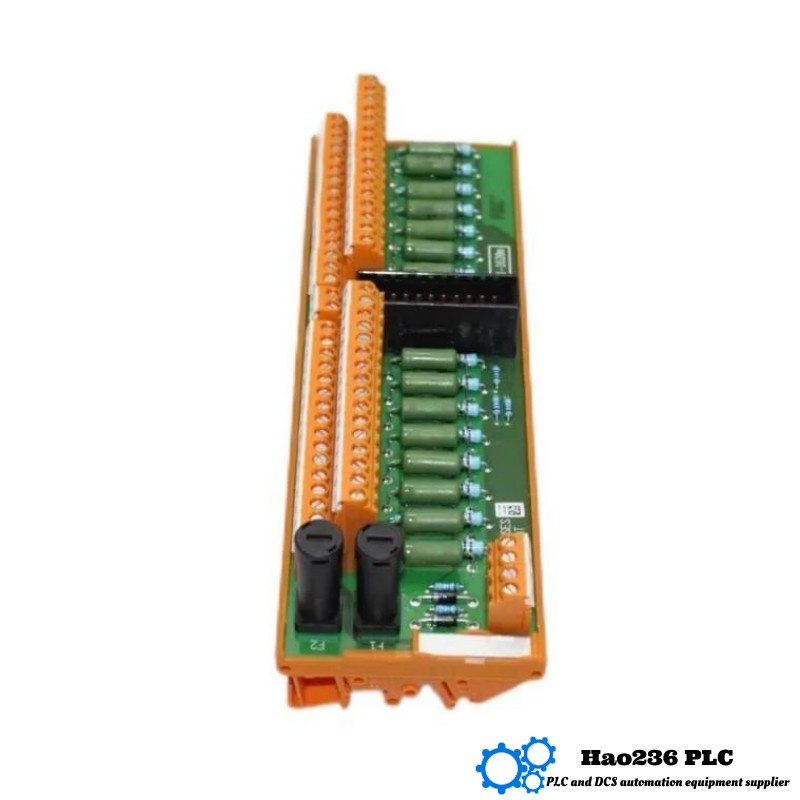

Q1: What input signal types does the FC-TSAI-1620M support?
A1: It supports 4–20 mA, 0–5 V, and thermocouple inputs.

Q2: How many channels does this module have?
A2: It has 16 input channels.

Q3: What is the operating temperature range?
A3: The module operates safely between -20°C and +60°C.

Q4: How is this module installed?
A4: It is installed using a standard DIN rail (TS32 / TS35 × 7.5).

Q5: What is the accuracy of this module?
A5: The accuracy is ±0.10%.

Q6: What is the power supply requirement?
A6: It requires an external 30 V DC power supply with 3 mA current consumption (no load).

Q7: Can it handle multiple sensor types at once?
A7: Yes, it supports mixed input types like 4–20 mA and thermocouples but configured per installation.

Q8: What is the module’s weight?
A8: It weighs approximately 0.43 kg.

Q9: Is it suitable for hazardous environments?
A9: It is designed for industrial use but verify hazardous area certifications before use in such environments.

Q10: How are the wiring terminals configured?
A10: Terminals support wires up to 2.5 mm² with a strip length of 7 mm and tightening torque of 0.5 Nm.
