Frequently Asked Questions (FAQ)

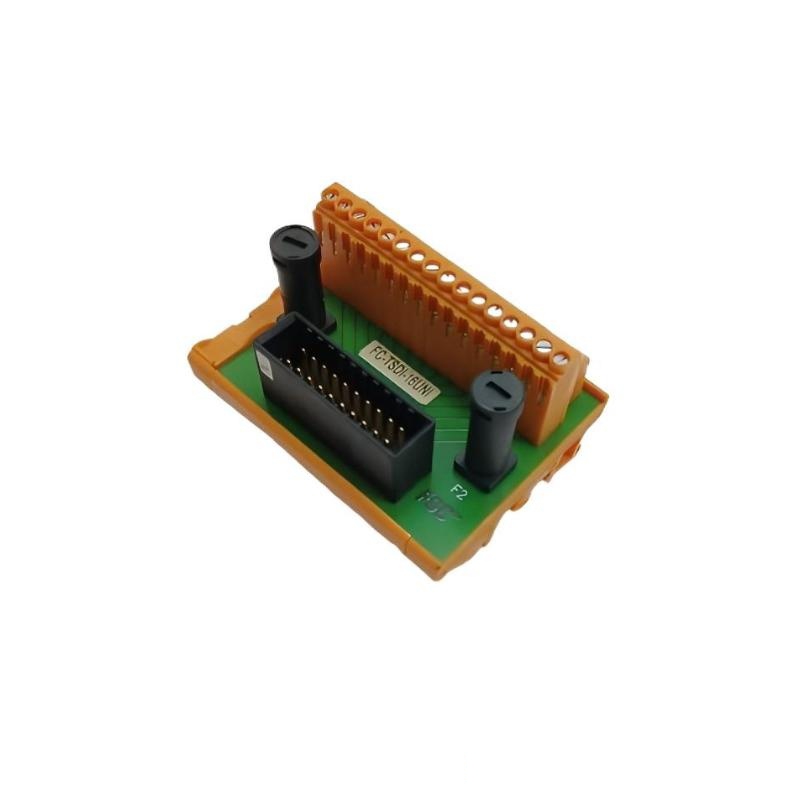

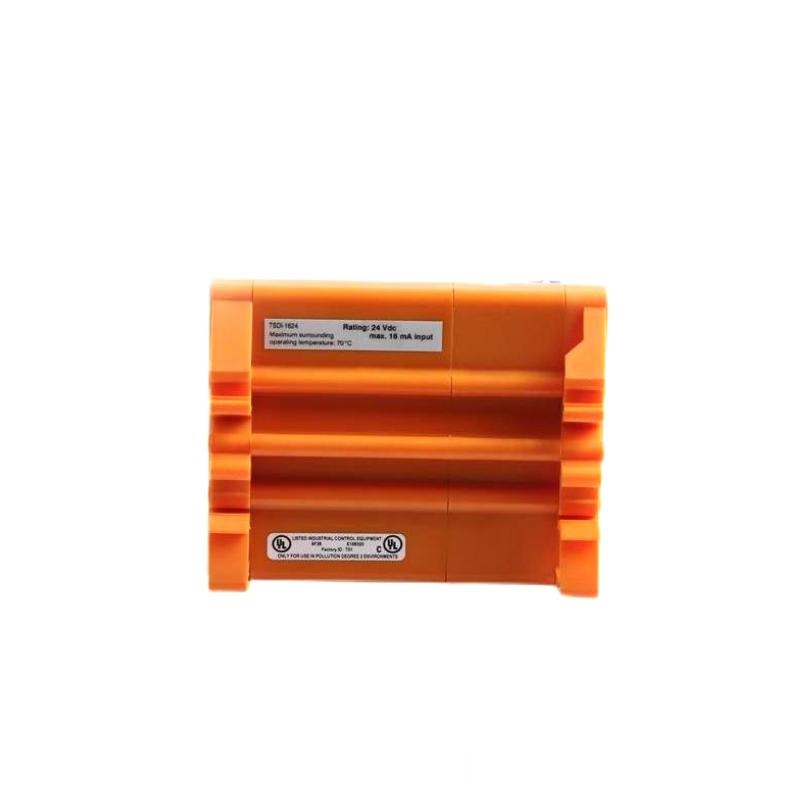

Q1: What is the main function of the FC-TSDI-1648?
A1: It provides 16 channels of safety-certified digital input for both active (PNP) and passive (dry contact) signals.

Q2: Can this module detect wiring faults?
A2: Yes, it continuously supervises each channel for open and short circuits.

Q3: What safety standard does it comply with?
A3: It is certified to IEC 61508 SIL 3 standards.

Q4: How fast does it respond to an input change?
A4: Typical input response time is under 10 ms.

Q5: Can it be hot-swapped during operation?
A5: No, for safety and system integrity the module should be replaced with power removed.

Q6: What temperature range is supported?
A6: The module operates reliably from –25 °C to +70 °C.

Q7: What mounting options are available?
A7: It mounts easily on standard 35 mm DIN rails.

Q8: How heavy is the module?
A8: It weighs approximately 0.30 kg.

Q9: Is it compatible with other Honeywell Experion/ControlEdge systems?
A9: Yes, designed for Experion PK and ControlEdge PK safety racks.

Q10: What kinds of field devices can be connected?
A10: It supports 24 V DC active sensors and dry contact devices such as E-stop buttons and limit switches.
