6. Frequently Asked Questions (FAQ)

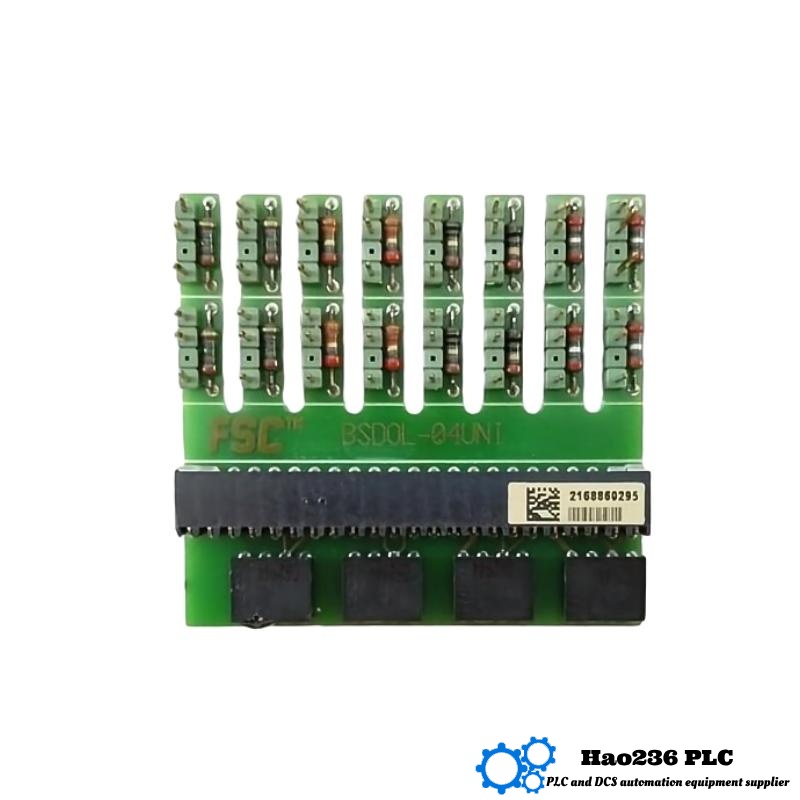

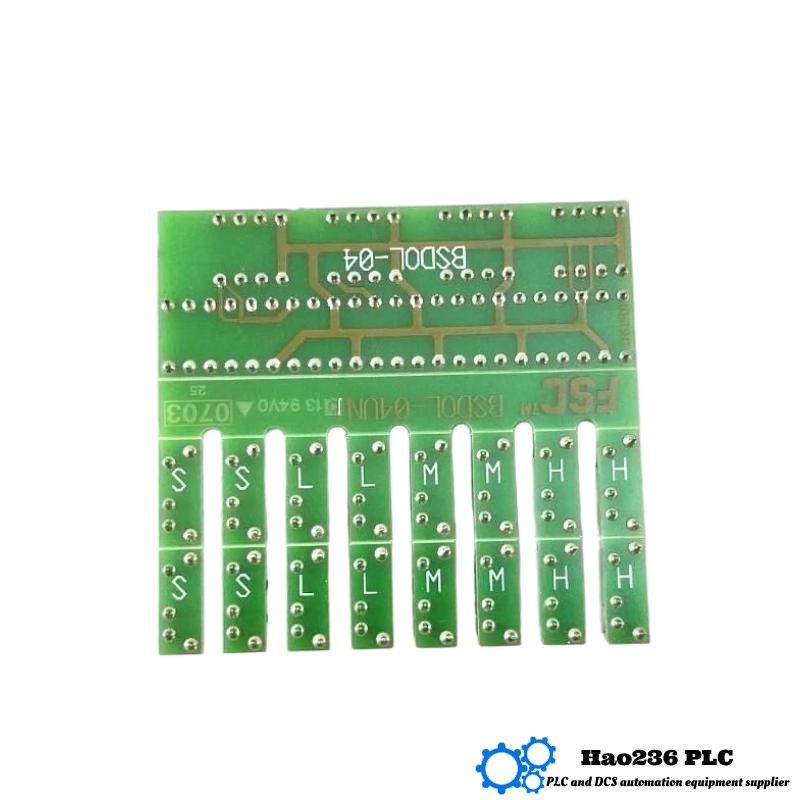

Q1: What does FS-BSDOL-04UNI actually do?
A1: It sets current thresholds for digital output channels, allowing fault detection (open/short) in safety systems.

Q2: Do I need this if my channel is unused?
A2: Yes. Installing it on unused channels helps prevent false fault signals and keeps diagnostics clean.

Q3: How is it different from FC-BSDOL-04UNI?
A3: The “FC” version has conformal coating for harsh or humid environments; otherwise, functions are the same.

Q4: Will it consume much power?
A4: No. Typical power consumption is under 5 W, and certain types don’t require external power at all.

Q5: Does it take up I/O space in my cabinet?
A5: No. It mounts directly on the backplane connector (Px), so no extra rack space is used.

Q6: Can it handle high temperature?
A6: Yes, up to +70°C. For higher temp environments, use ventilation or protective casing.

Q7: Can I use this in dusty or humid locations?
A7: The standard version is best for clean environments. For harsh settings, use the coated “FC” version.

Q8: Is it difficult to replace if damaged?
A8: Not at all. It can be unplugged from the connector and replaced easily without rewiring.

Q9: What happens if I misconfigure it?
A9: Incorrect settings can lead to false alarms or missed faults. Always validate current ranges before applying.

Q10: In redundant output systems, do I need two modules?
A10: Usually not. One FS-BSDOL-04UNI can manage dual-path output configurations.
