6. FAQs (10 Questions & Answers, in QA format)

Q1: What is the primary use of FSC 10024/H/I?

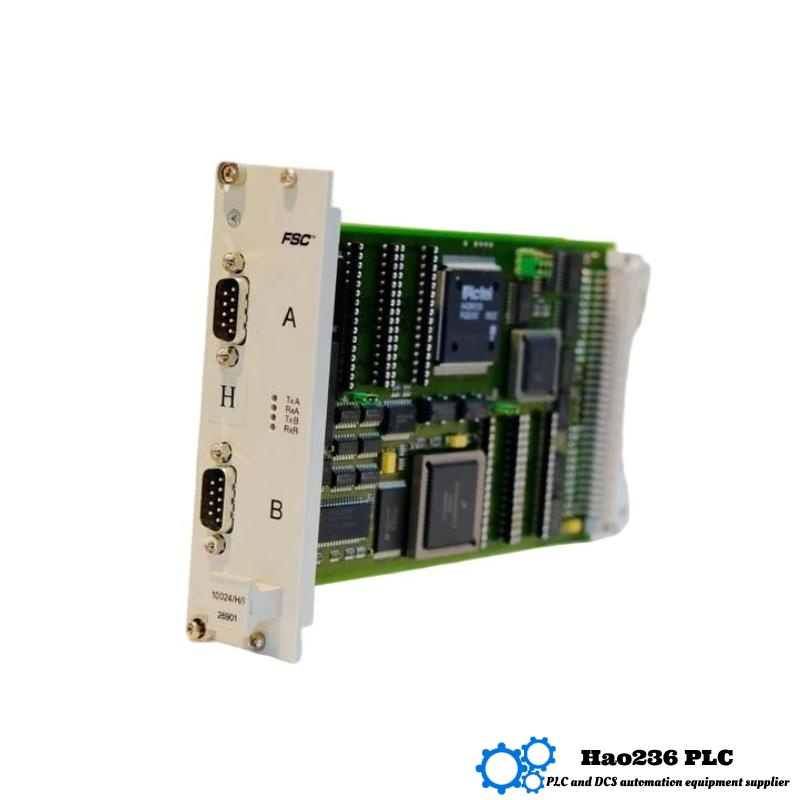

A1: It serves as a communication interface module in the FSC system, enabling RS‑232/422/485 connectivity between the safety/control core and external devices.

Q2: How many external communication channels does it support?
A2: Up to eight channels, though actual supported count depends on configuration and hardware variant.

Q3: What power supply does it require?
A3: It operates at 5 VDC, usually supplied via the system backplane.

Q4: What is its approximate weight and size?
A4: It weighs about 0.3 kg and measures ~152 × 203 × 51 mm (L × W × H).

Q5: Can it operate in very cold or hot environments?
A5: Yes. Its operating temperature range is –40 °C to +85 °C, making it suitable for harsh industrial settings.

Q6: Does it preserve its configuration after power loss?
A6: Yes, it retains its last state or configured parameters to allow recovery after transient faults.

Q7: What diagnostics does it offer?
A7: It provides status LEDs, error checking, fallback to last known state, and internal error detection.

Q8: If a communication channel fails, what happens?
A8: The module’s diagnostics detect the failure and isolate it without crashing the entire module—other channels remain operative.

Q9: Can I hot-swap this module?
A9: No. To ensure system safety, the module should only be swapped when the system is in a safe, powered-down state or maintenance mode.

Q10: Which variant should I choose: H/I, I/F, or H/F?
A10: Choose based on your required protocol support, speed, hardware robustness, or diagnostic features. The H/I variant is balanced for general use; other variants may offer enhanced features or different protocol support.
