Frequently Asked Questions (FAQs)

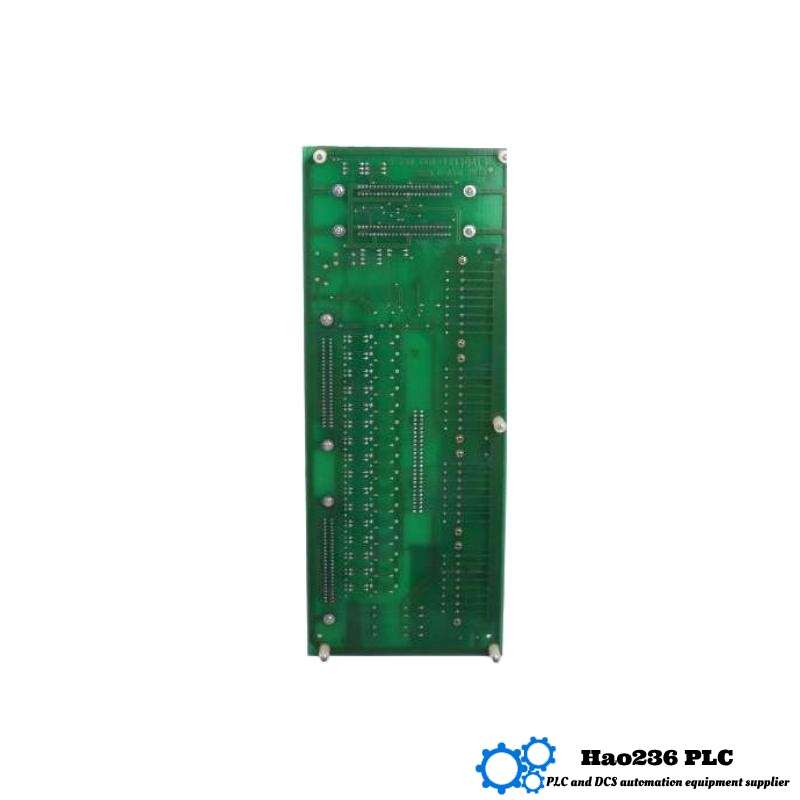

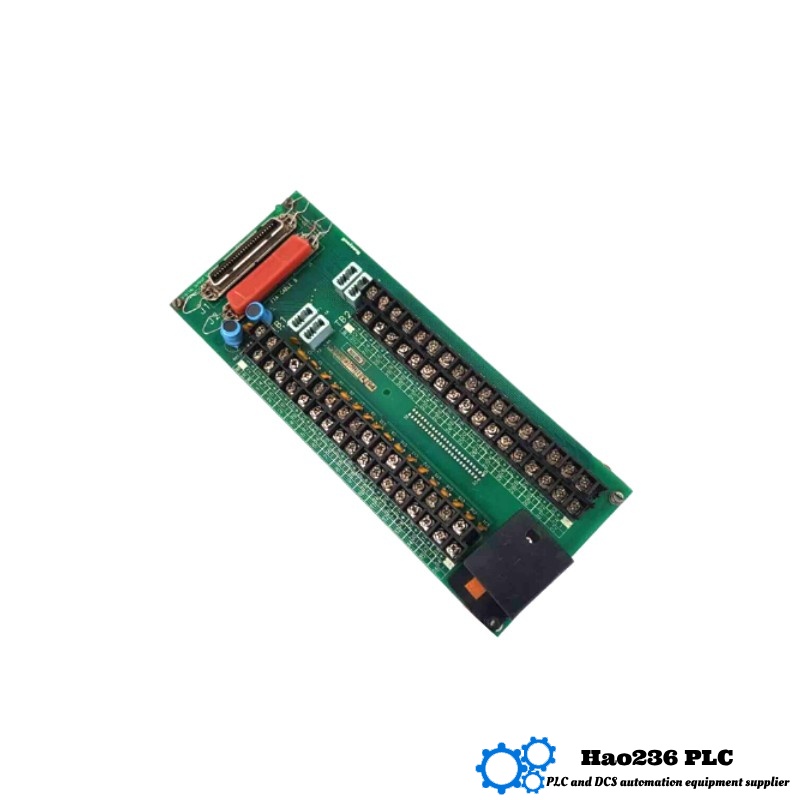

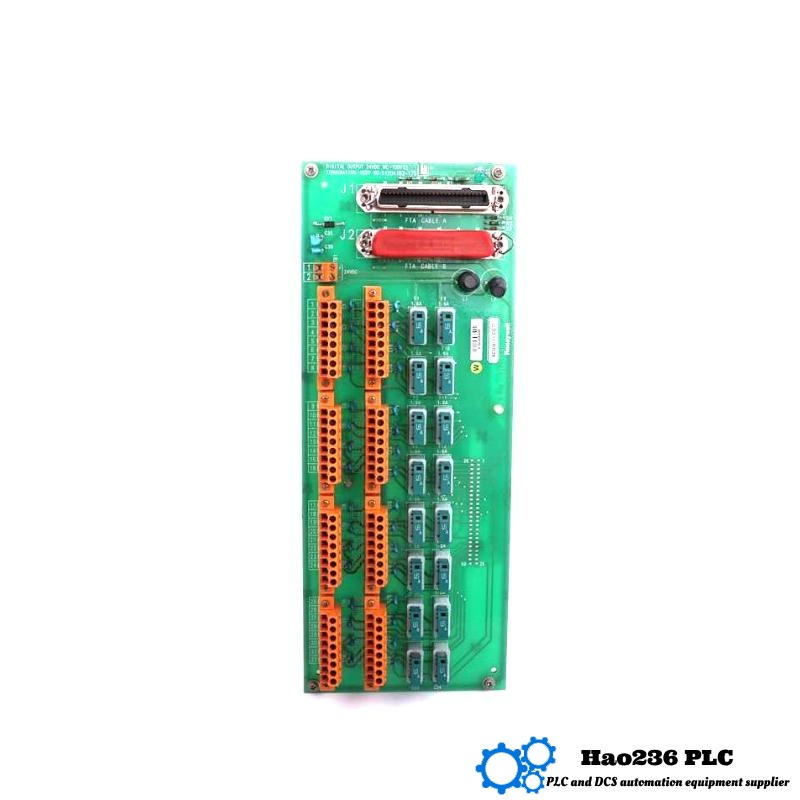

Q1: How many outputs does the MU‑TDOY23 support?
A1: It provides 16 discrete sourcing outputs.

Q2: What kind of output load can it drive?
A2: Each output can drive up to 500 mA at 24 VDC (nominal).

Q3: What is the activation and release time of the outputs?
A3: Activation ≤ 2 ms, release ≤ 1 ms—ensuring quick switching.

Q4: How is output isolation handled?
A4: A 1500 VDC channel-to-bus isolation barrier is included for safety.

Q5: What are the ambient operating conditions?
A5: –20 °C to +60 °C operating, with 5 % to 95 % humidity (non‑condensing).

Q6: Can it handle mechanical stress?
A6: Yes—designed for 5 g RMS vibration and 15 g shock.

Q7: Is it suitable for hazardous environments?
A7: Optional certified versions are available for intrinsically safe or hazardous areas.

Q8: What is its physical size and mass?
A8: 150 mm × 35 mm × 130 mm; weighs approximately 0.65 kg.

Q9: How is it mounted?
A9: Mountable on DIN rail or modular racks for convenient installation.

Q10: What kinds of devices can it control?
A10: Ideal for valves, solenoids, alarms, pilot lights, relays, and field indicators.
