9. Frequently Asked Questions (FAQ)

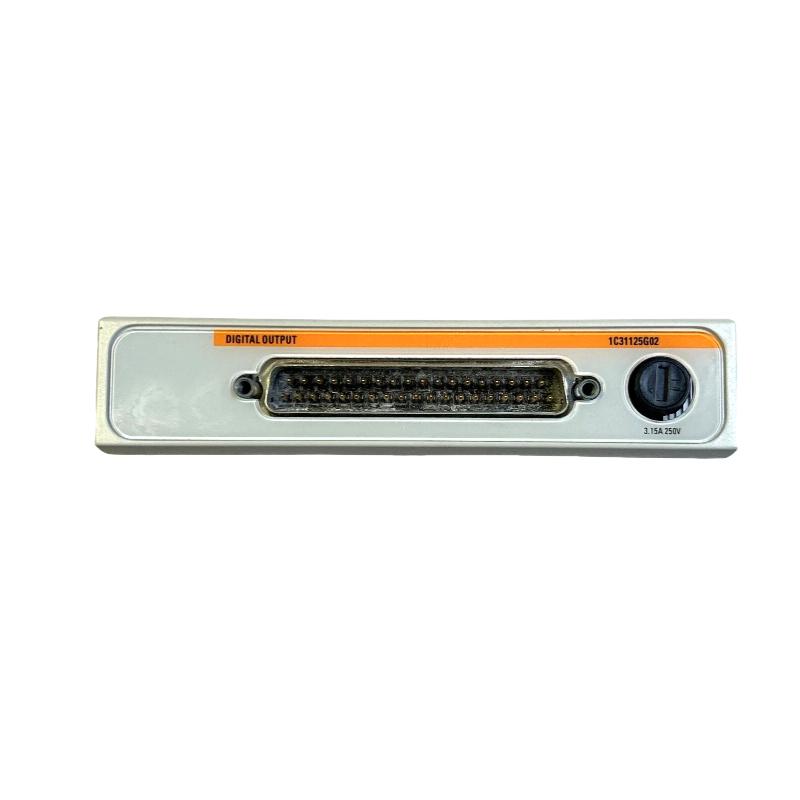

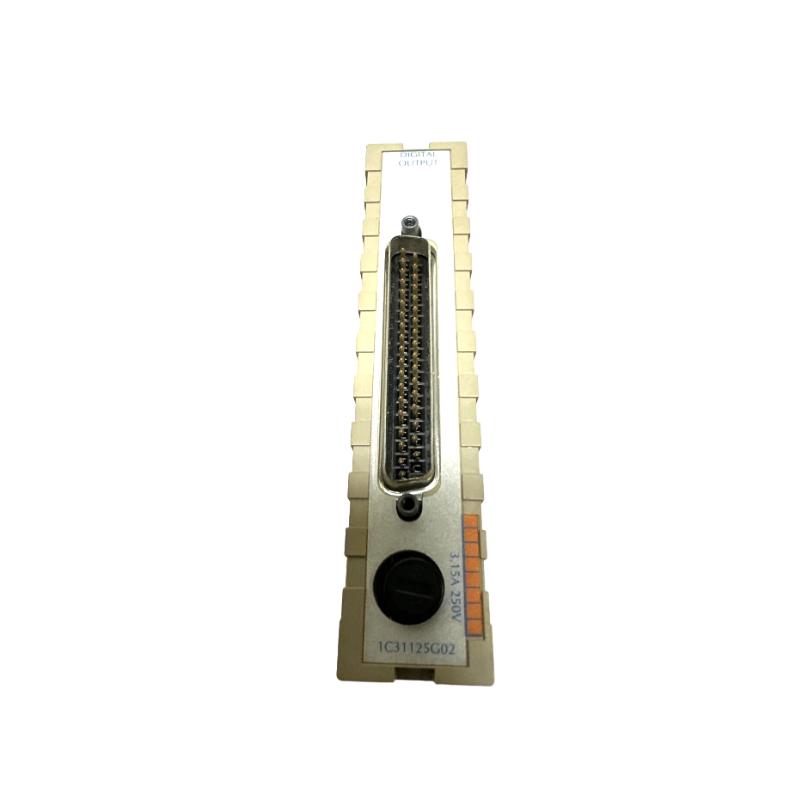

Q1: What is the main purpose of the OVATION 1C31125G02?
A: It expands the digital output capacity of an automation system by providing 24 discrete output channels for driving field devices.

Q2: How many digital outputs does the OVATION 1C31125G02 provide?
A: The module provides 24 discrete output channels.

Q3: What are the physical dimensions of the module?
A: The dimensions are approximately 15.2 cm × 20.3 cm × 5.1 cm.

Q4: How much does the OVATION 1C31125G02 weigh?
A: The module weighs about 0.42 kg.

Q5: What voltage do the output channels use?
A: The outputs use a 24 V DC nominal voltage.

Q6: What is the current rating per output channel?
A: Each output channel can handle up to 0.5 A.

Q7: Can the module handle fast switching operations?
A: Yes, it supports ≤10 ms switching time per channel, suitable for time‑sensitive control.

Q8: What protection features are included?
A: The module includes overload, short‑circuit, and surge protection on each channel.

Q9: Where is this module commonly installed?
A: It is designed for rack or backplane mounting in industrial control cabinets.

Q10: What types of systems commonly use this module?
A: It is used in process control, manufacturing automation, building management, water treatment, and energy system applications where additional digital outputs are required.
